先导式4、5通电磁阀

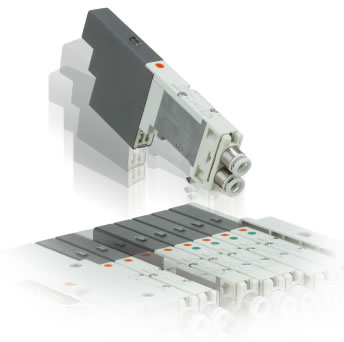

5通电磁阀 SQ1000/2000

    ・节能 消耗功率：0.4W（标准）
    ・阀增减容易
    ・采用整体安装的形式，减少维护工时
    ・采用夹紧式，易于更换快换接头
    ・按压一次即可改变接口引出方向
    ・4位双3通阀
    ・内置防背压阀（可选项）
    ・集装阀岛型号：SS5Q13，SS5Q14，SS5Q23，SS5Q24
安全注意事项　3・4・5通电磁阀共通注意事项
选型・技术资料　特定开发品信息　环保认证(RoHS)
系列流量特性
4/2→5/3（A/B→R1/R2）
C［dm3/（s・bar）］		流量特性
4/2→5/3（A/B→R1/R2）
b		流量特性
4/2→5/3（A/B→R1/R2）
Cv		气缸驱动
尺寸		消耗功率（W）
SQ10000.80.200.19φ320.4W（标准）
0.95W（高压型）
SQ20003.10.180.71φ630.4W（标准）
0.95W（高压型）

产品特点

■Power Saving

Power consumption 0.4W (Standard) ,
0.95W High (pressure)

Compared to existing model 60% DOWN

Easy to add or decrease the number of valve stations.

The use of cassette style valves and manifolds makes it easy to increase or decrease the number of stations on a DIN rail. The plug-in type includes two extra valve station connectors. This design makes rewiring unnecessary during manifold expansion.

Easy valve maintenance

Mountable with one screw.

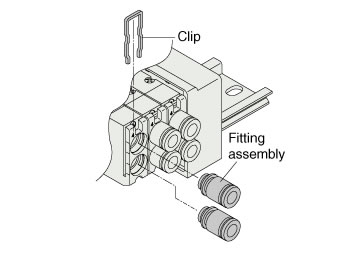

■Easy Replacement of Clip Type
One-touch Fittings

One-touch fittings can be replaced without removing valves.

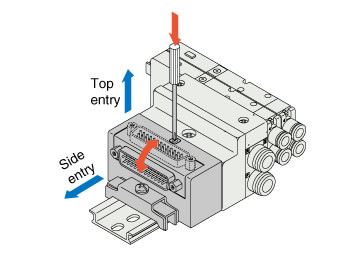

■Connector Entry Direction Can
be Changed with a Single Push

The connector entry direction can be changed from the top to the side by simply pressing the manual release button. It is not necessary to use the manual release button when switching from the side to the top.

■4 Position Dual 3 Port Valve
  • Two 3-port valves built into one body.
  • The 3-port valves on the A and B sides can operate independently.
  • When used as 3-port valves, only half the number of stations is required.
  • Can also be used as a 4-position, 5-port valve.
■Built-in Back Pressure
Check Valve (Option)

Eliminates trouble with back pressure when driving a single acting cylinder or when using an exhaust center type valve, etc.



■Wiring Type
■Piping Specifications
