Flow Switch

2-Color Display Digital Flow Switch/Low Particle Generation PF2M7-X300

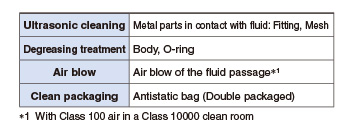

    ・Low Particle Generation

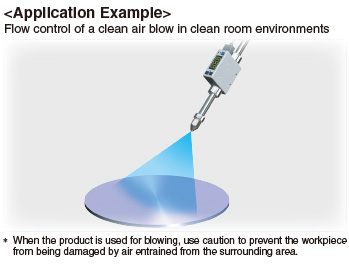

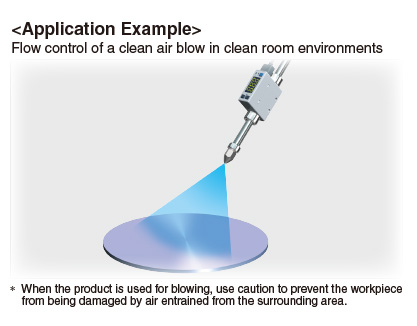

    　Flow control of a clean air blow in clean room environments
    ・Metal Material of Parts in Contact with Fluid: Stainless Steel 304
  • 2D CAD
    Click here for 2D CAD
  • 2-Color Display Digital Flow Switch/Low Particle Generation PF2M7-X300
    Manual
    Series View search result
    PF2M7-X300View search result
  • 2-Color Display Digital Flow Switch/Low Particle Generation PF2M7-X300
    DoC
    Series View search result
    PF2M7-X300View search result
Safety Instructions　Pressure Switches/Flow Switches/Precautions　Green Procurement (RoHS)

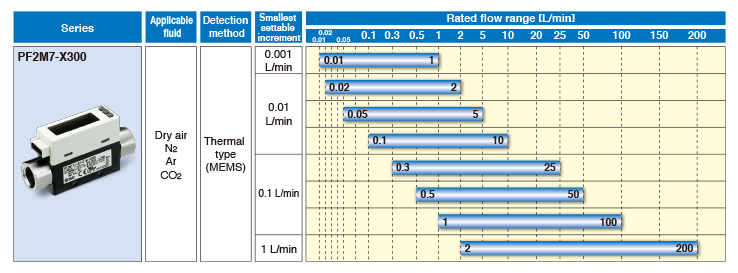

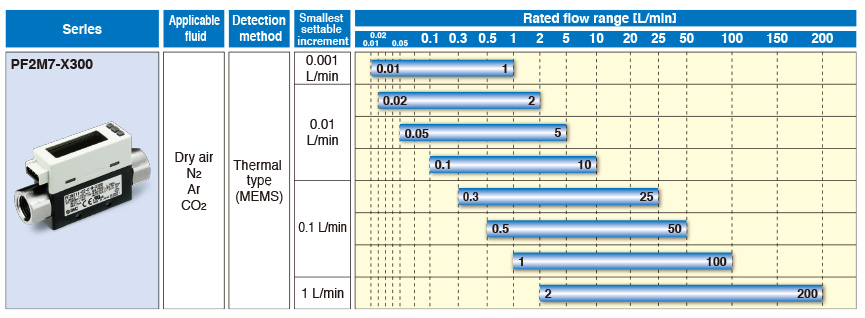

SeriesApplicable fluidRated flow range (L/min)
PF2M7-X300Dry air, N2, Ar, CO20.01 to 1.0（0.01 to 0.5）
0.02 to 2.0（0.02 to 1）
0.05 to 5.0（0.05 to 2.5）
0.1 to 10.0（0.1 to 5）
0.3 to 25.0（0.3 to 12.5）
0.5 to 50.0（0.5 to 25）
1.0 to 100.0（1.0 to 50）
2 to 200（2 to 100）
※（　）: For CO2

Features

■Low Particle Generation 2-Color Display Digital Flow Switch
■Particle Generation Characteristics
　(Reference Data)

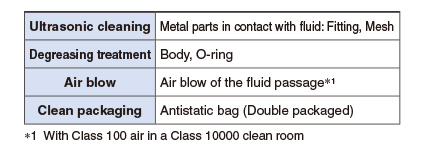

■Specifications
■Metal Material of Parts in Contact
　PFM710-X300 Particle Characteristics
　(0.10 μm or more)
　with Fluid: Stainless Steel 304

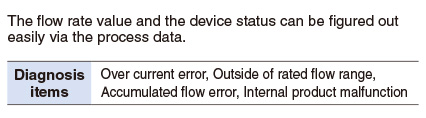

■IO-Link Compatible

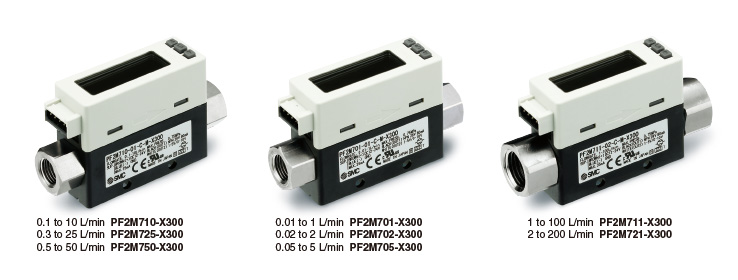

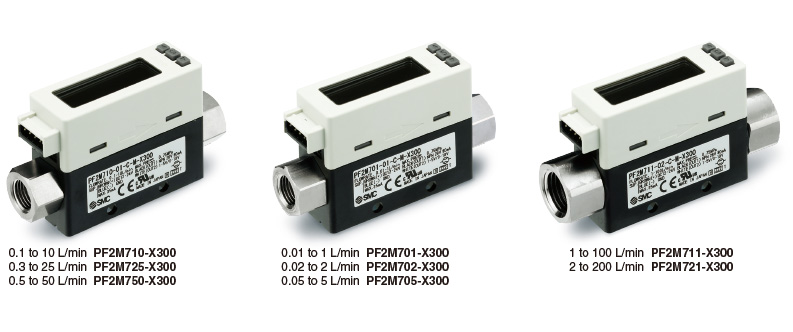

■Variations
