Compressed Air Preparation Filter/Stainless Steel Type AFF□DS/AM□DS/AMD□DS

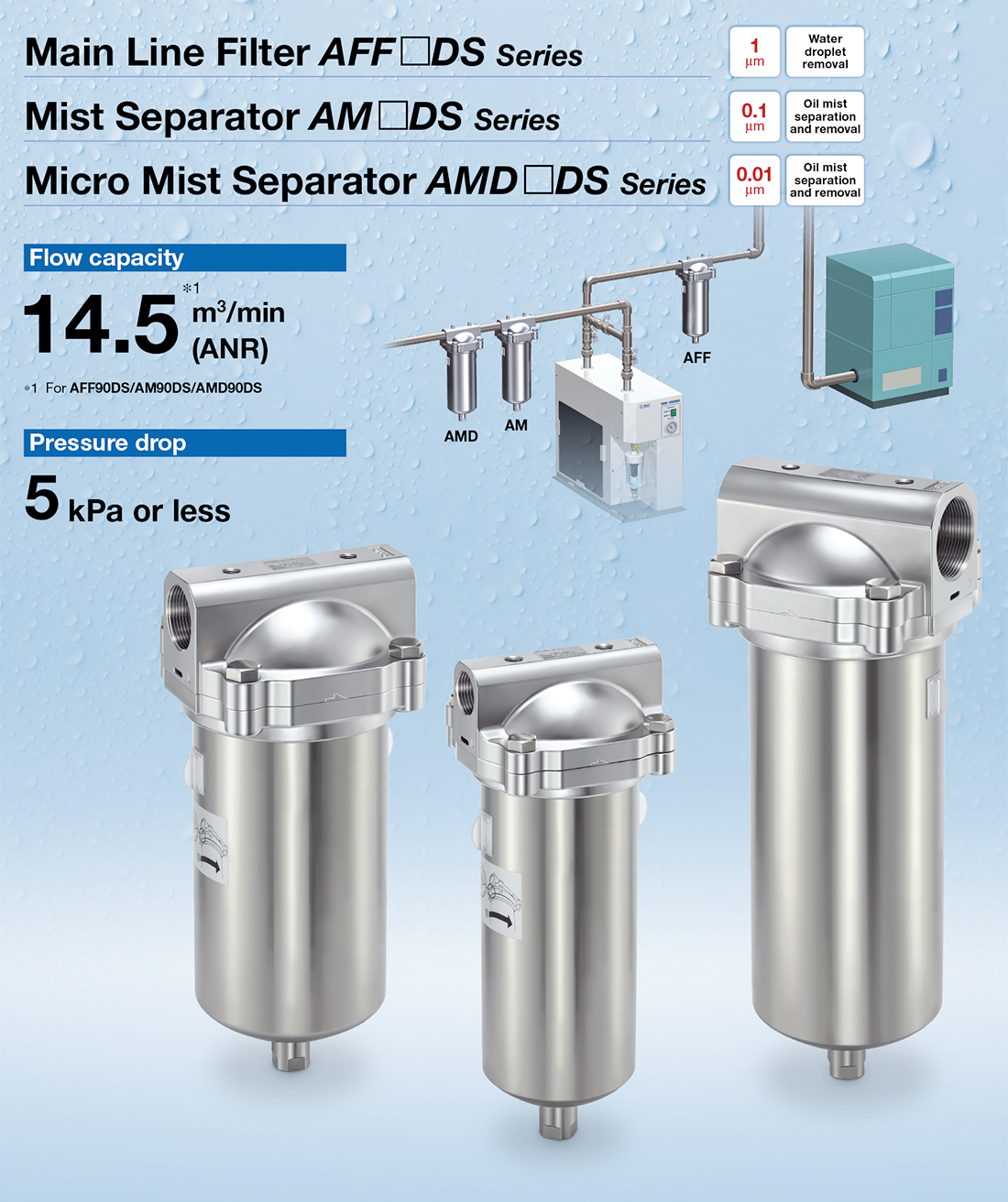

    ・Improved environmental resistance with the stainless steel exterior
    ・Flow capacity: 14.5m3/min（ANR）
    　∗ For AFF90DS/AM90DS/AMD90DS
    ・Pressure drop: 5kPa or less
    ・Easier replacement of the element
    ・Compliant with ISO 8573 Compressed Air Purity Class
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Air Preparation Equipment/Precautions　Selection/Technical Data　Green Procurement (RoHS)　Element Part No.

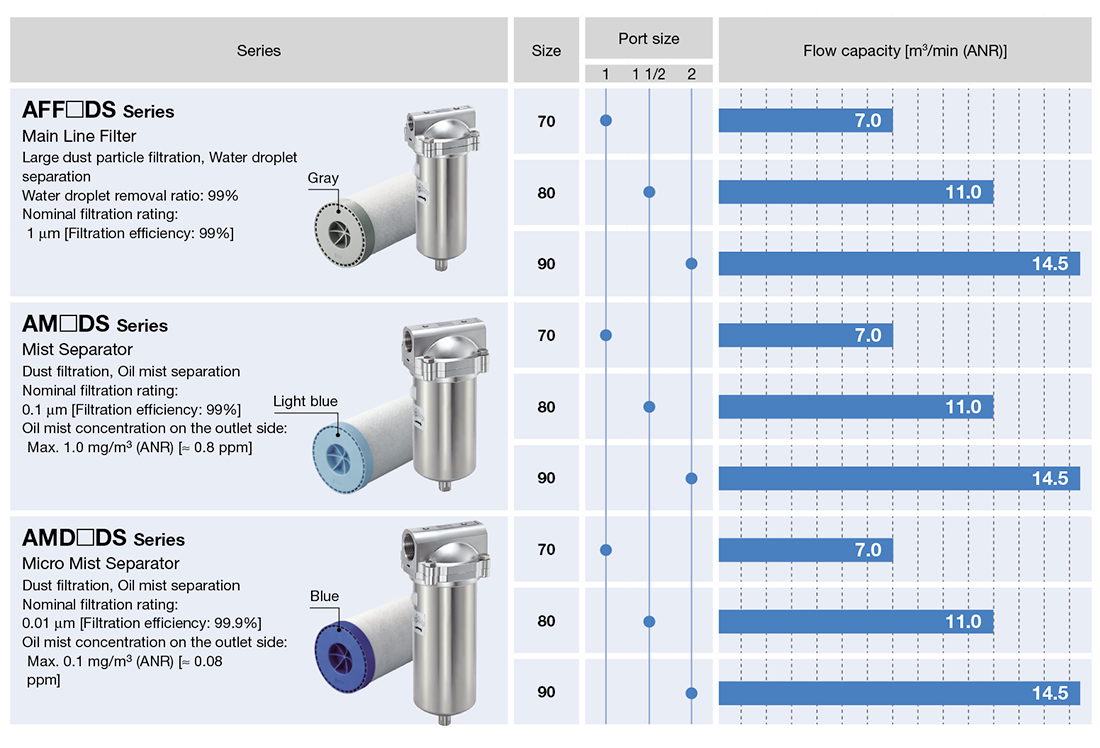

TypeSeriesFiltration (μm)Air flow（m3/min［ANR］）Port size
Main line filterAFF□DS1μm7 to 14.51, 1 1/2, 2
Mist separatorAM□DS0.1μm7 to 14.51, 1 1/2, 2
Micro mist separatorAMD□DS0.01μm7 to 14.51, 1 1/2, 2

Features

Improved environmental resistance with the stainless steel exterior

Variations

Easier replacement of the element

The stopper function prevents the bowl from falling.

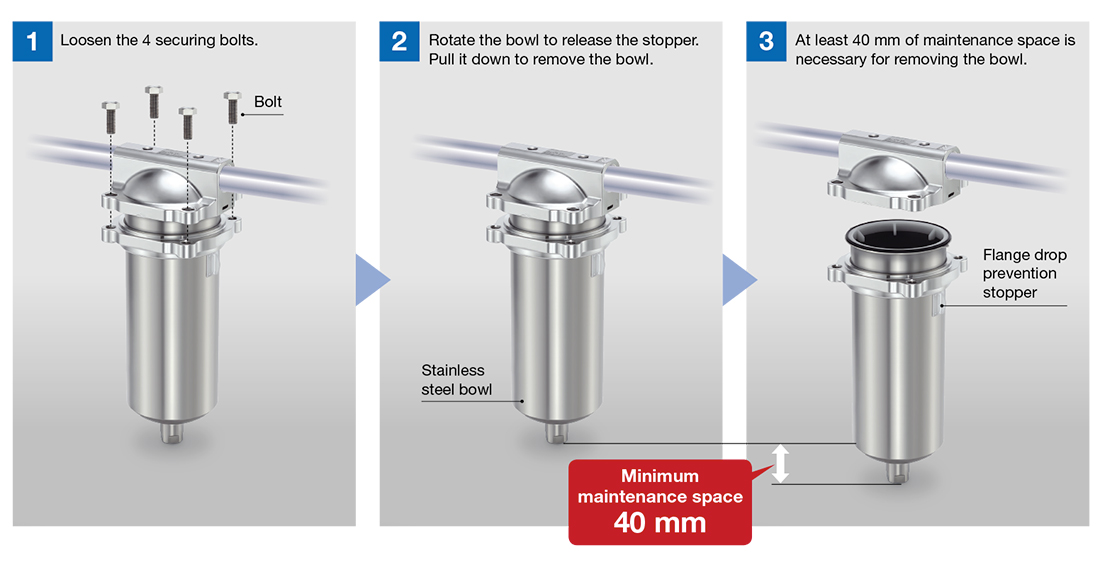

he bowl will not fall even if the bolts are loosened. It is not necessary to hold the bowl when removing the bolts. Safe and secure mounting and removing of the bowl with both hands is possible.
The lightweight stainless bowl with reduced thickness allows for easier element replacement.

Can be identified by color

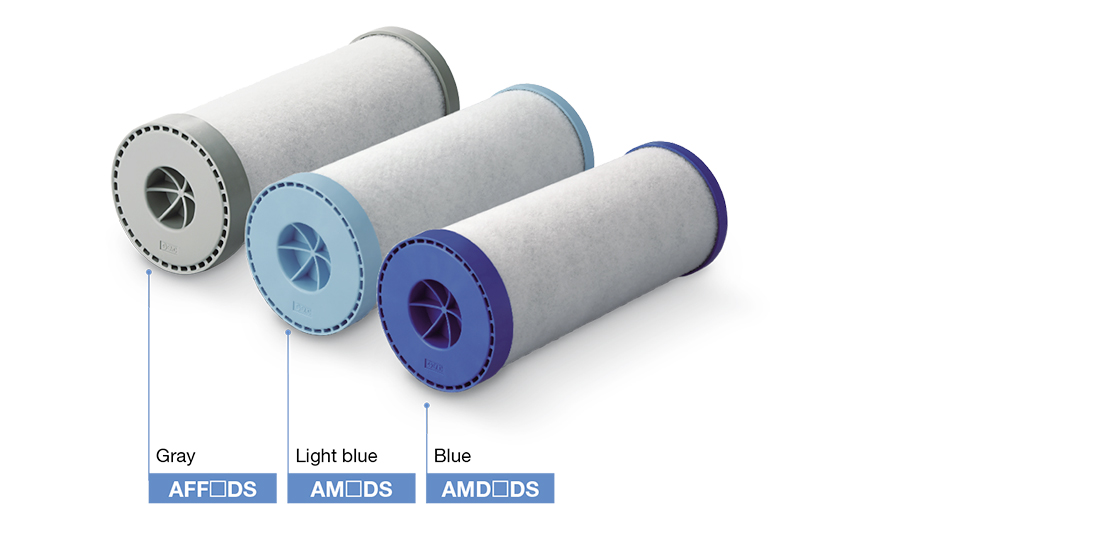

The type of element can be identified by the color of the end cap.

An end cap with slits is used for the element.

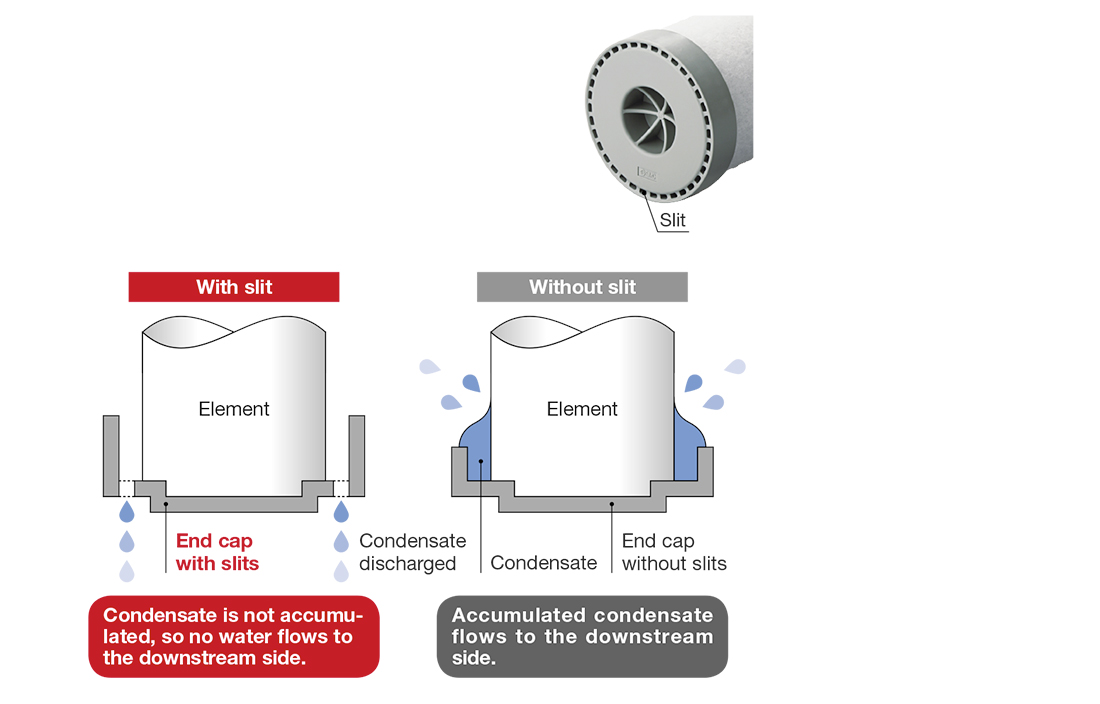

This eliminates the accumulation of condensate. Even high-velocity fluid is not spattered. The result is a compact bowl design.

Branch port

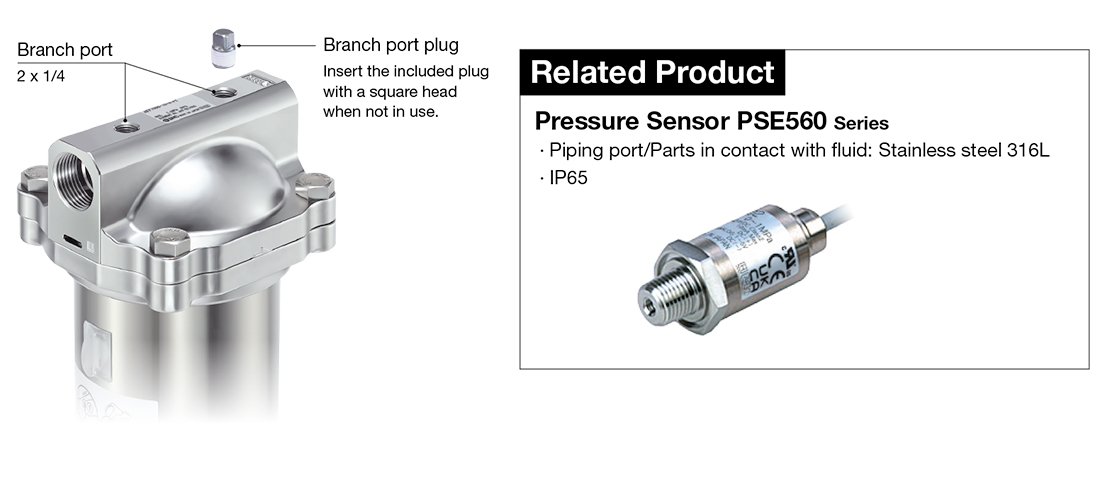

Mounting a sensor, etc., allows for element differential pressure management.

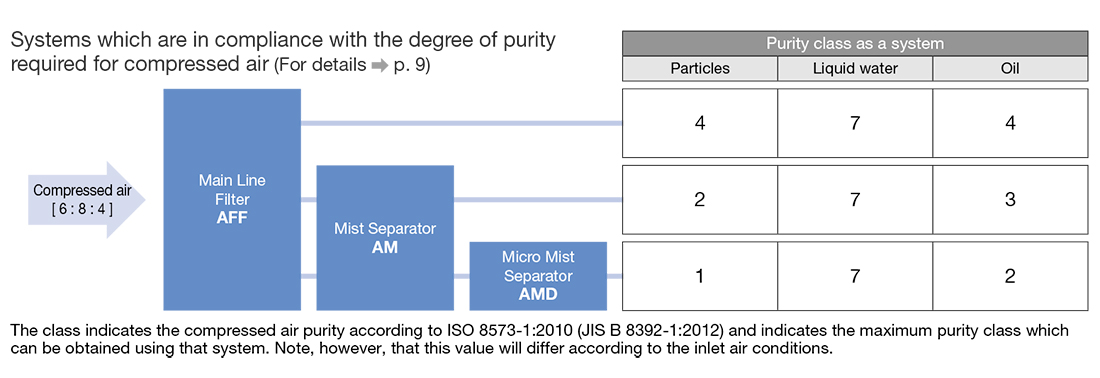

Compliant with ISO 8573 Compressed Air Purity Class
