Electronic Flow Switches/Sensors

3-Color Display Digital Flow Switch for PVC Piping PF3W

    ・Applicable fluids: Deionized water, Chemical liquids, etc.
    ・3-color/2-screen display
    ・IP65 compliant, Non-grease type
    ・Fluid temperature: 0 to 70°C
    ・PVC pipe O.D.: 25A, 30A
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Color Display Digital Flow Switch for PVC Piping PF3W
    Manual
    Series View search result
    PF3WView search result
SeriesRated flow range (L/min)
PF3W10 to 100
30 to 250

Features

■Flow range: Line up 250 L type New

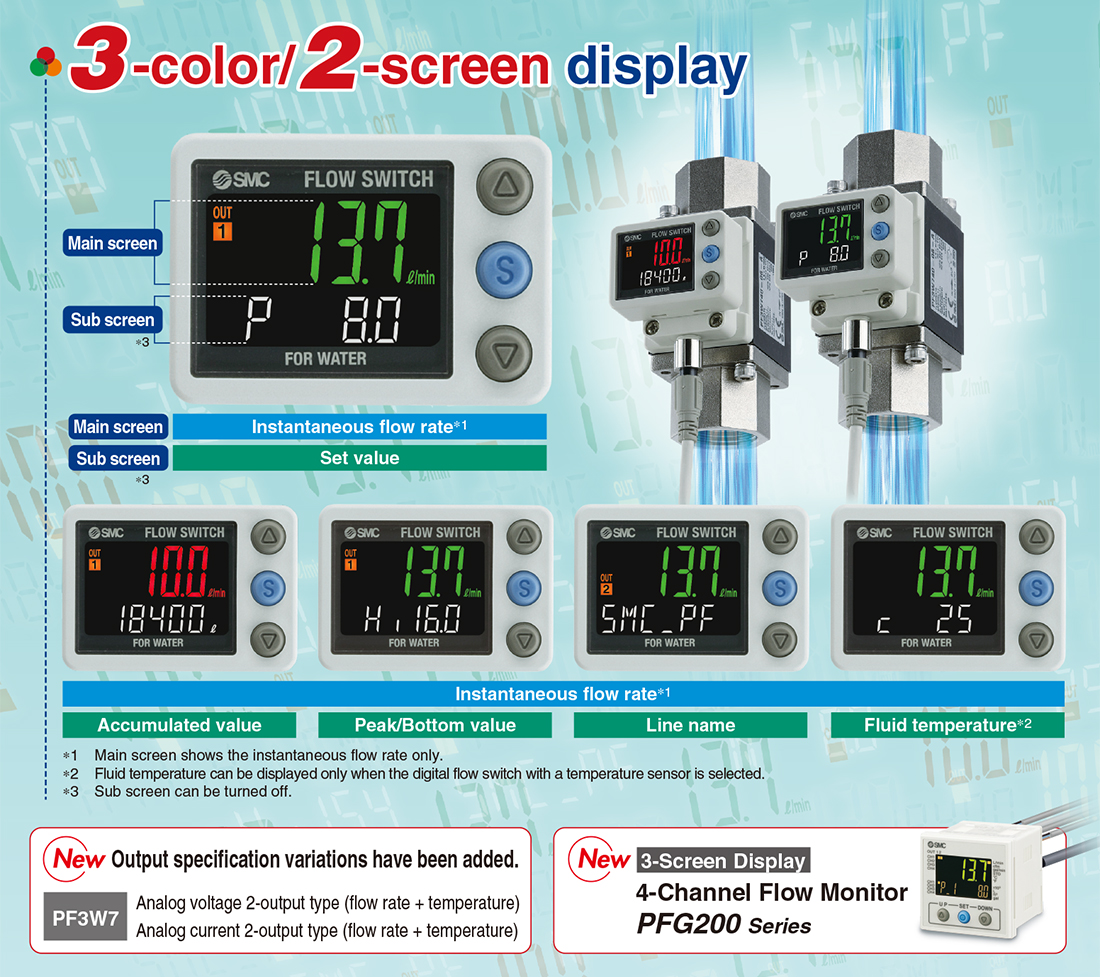

■3-color/2-screen display

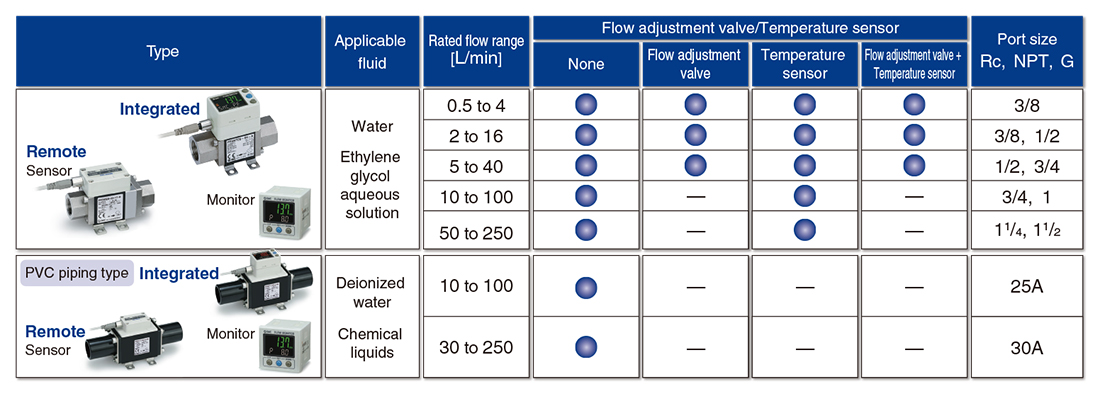

■Adding Variation

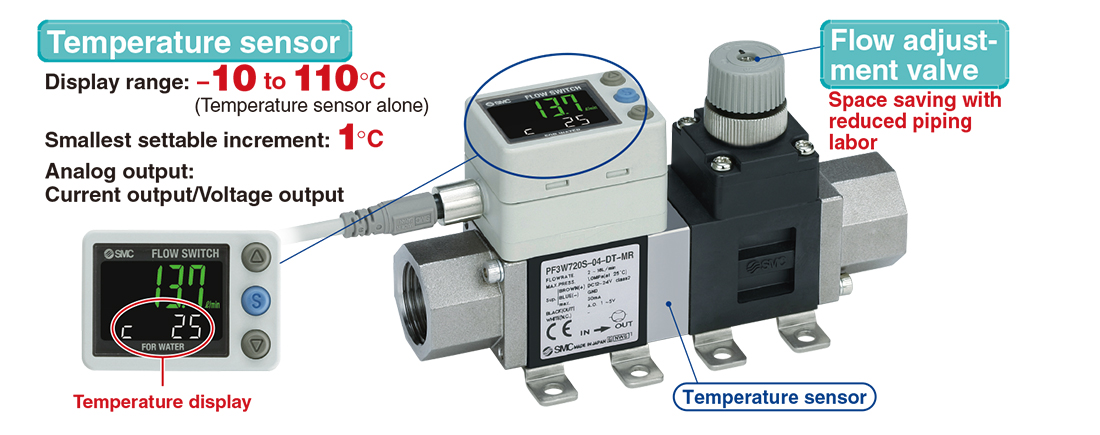

■Temperature sensor and Integrated flow adjustment valve

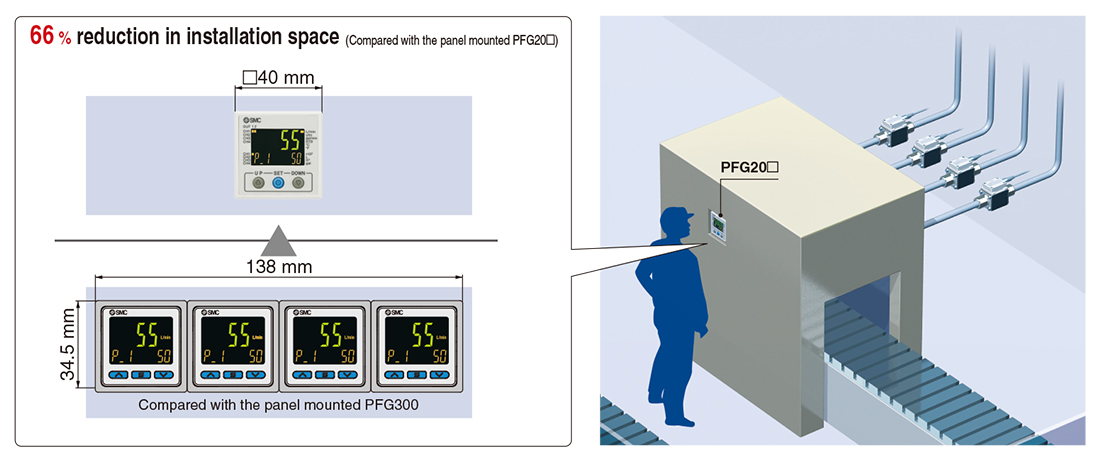

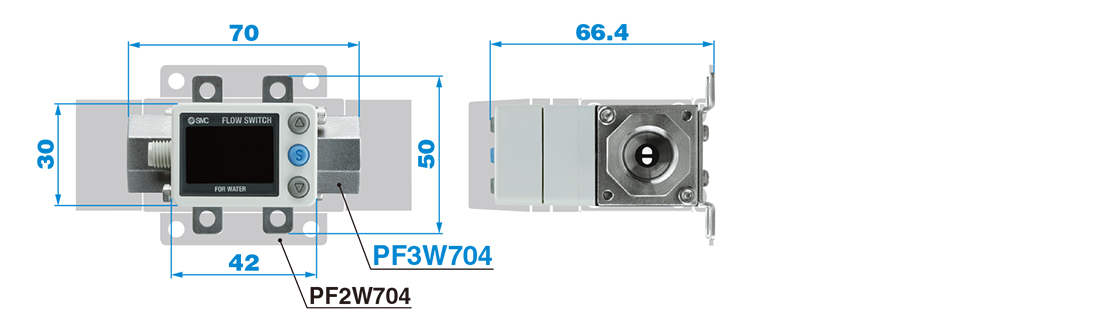

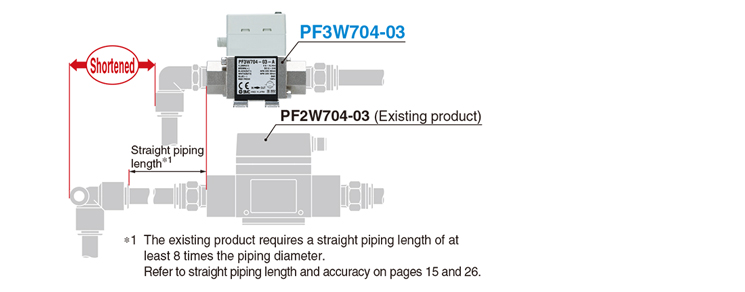

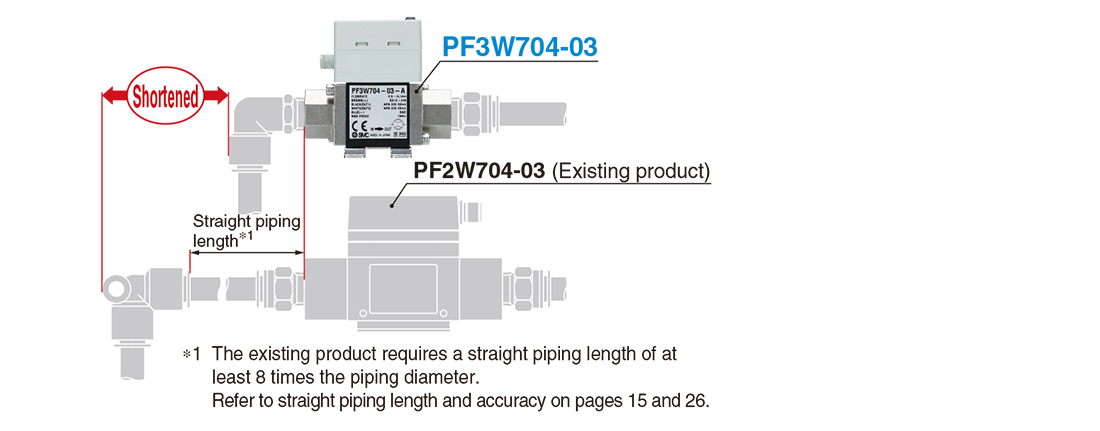

■Space-saving

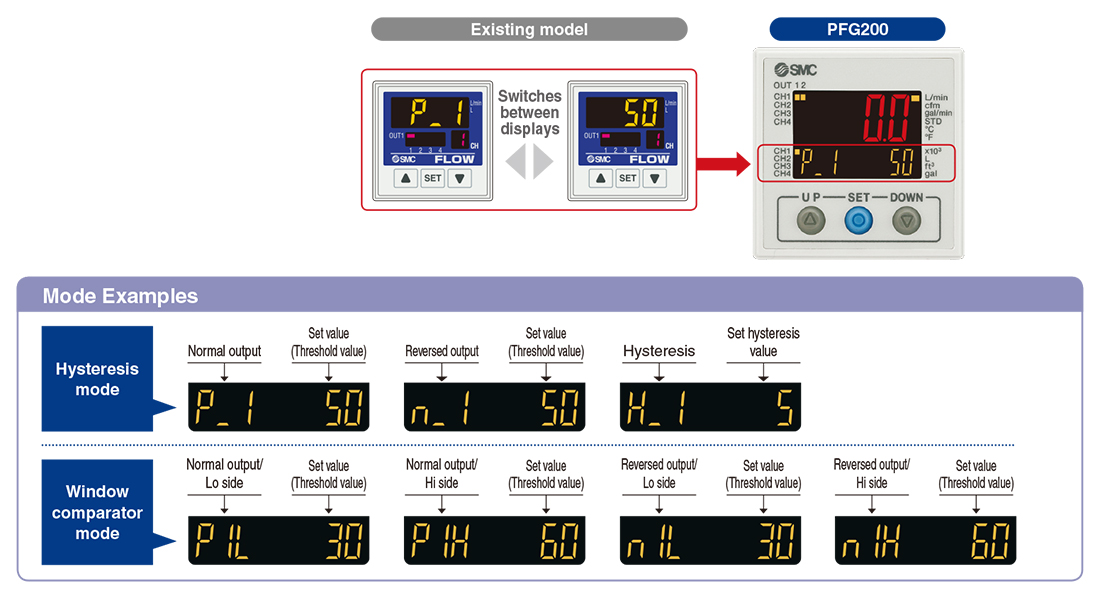

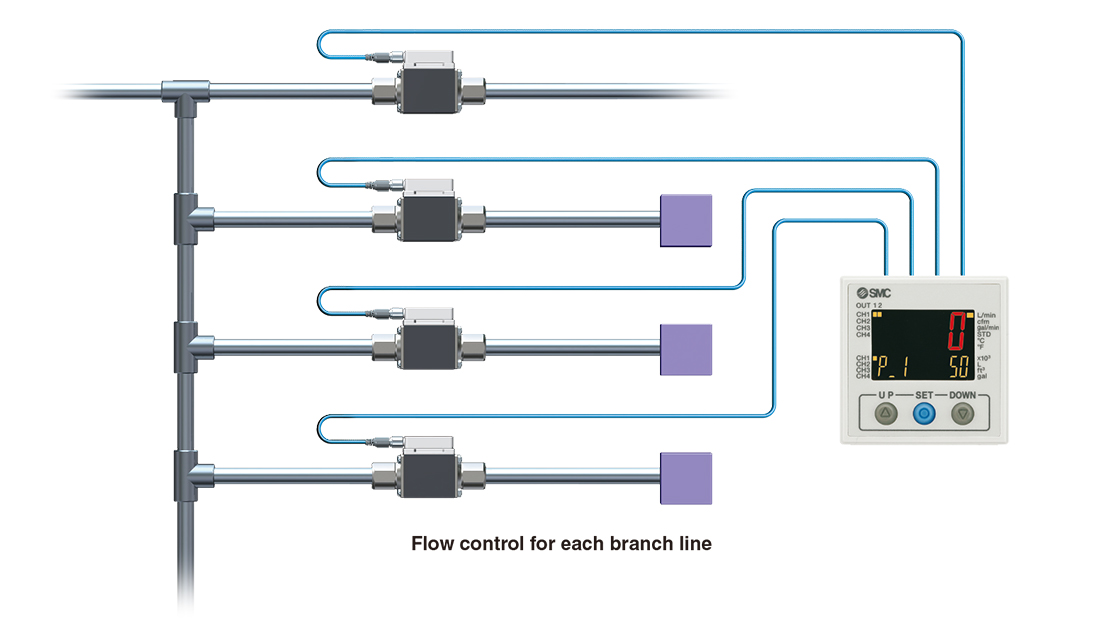

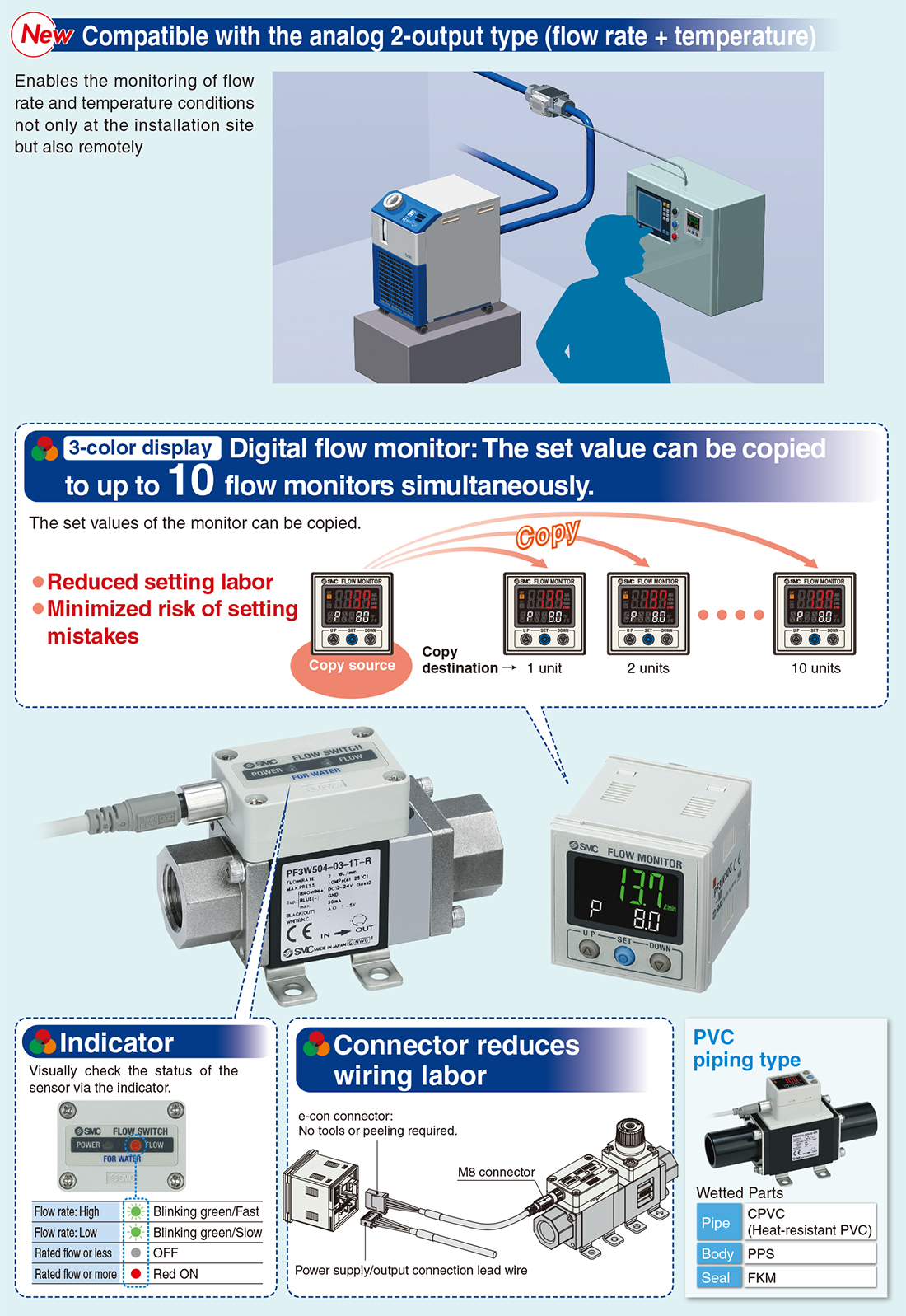

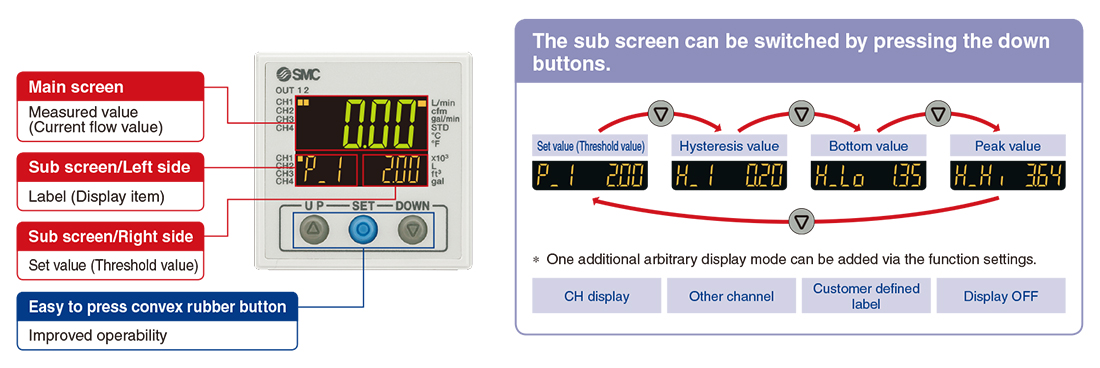

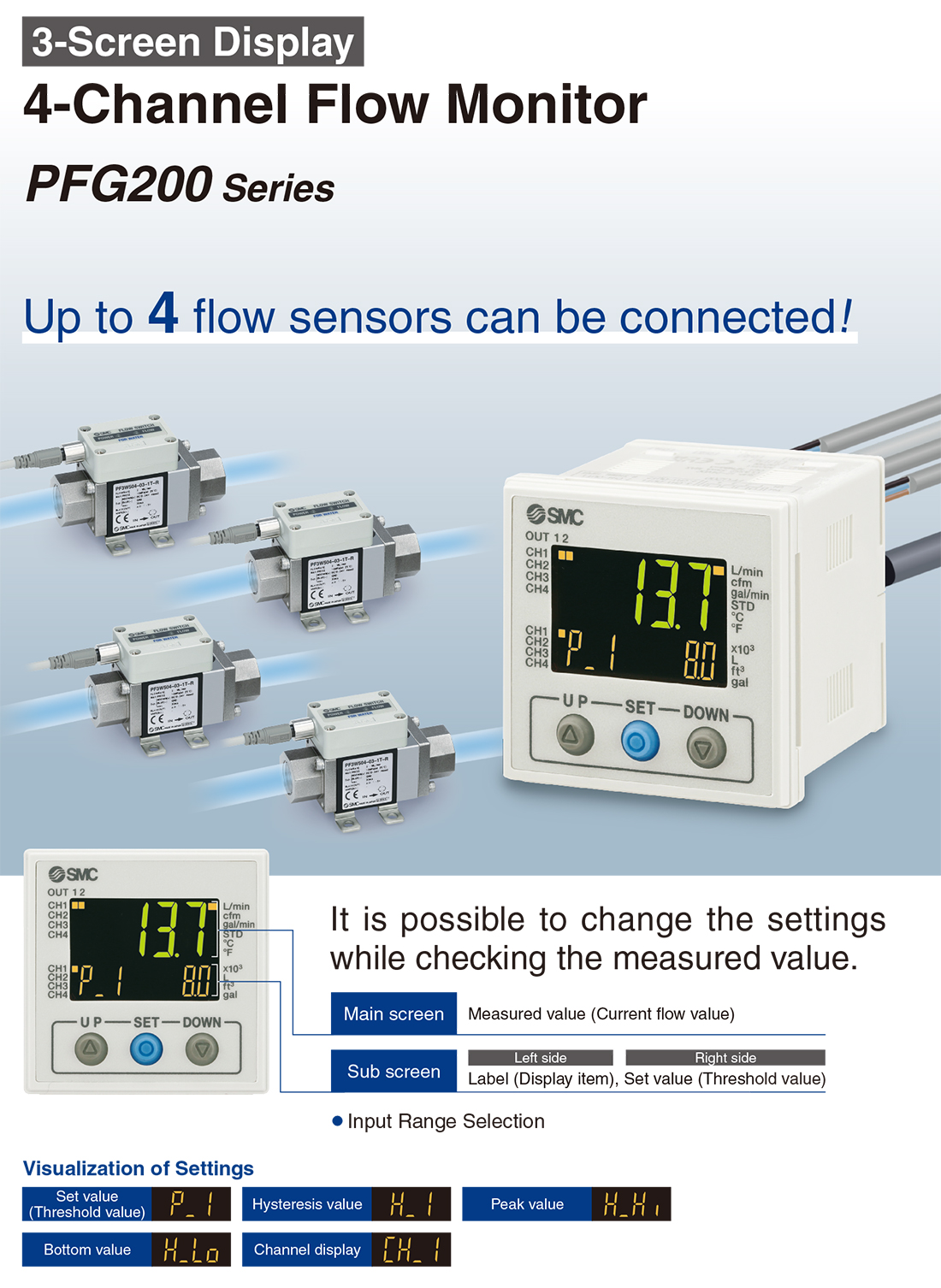

■3-color display Digital flow monitor

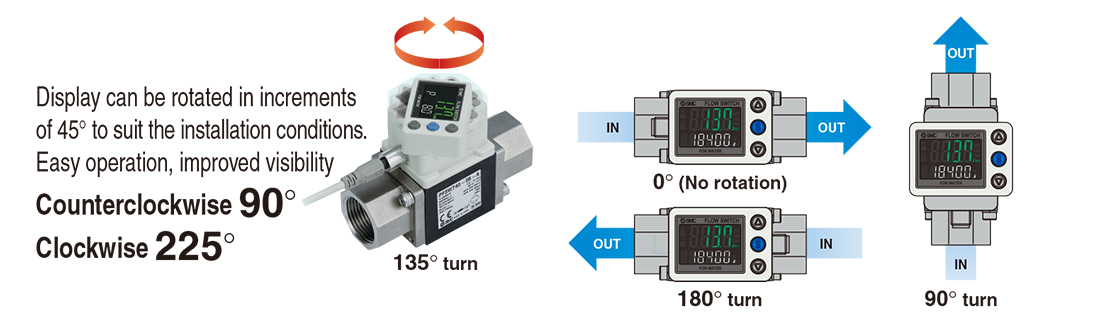

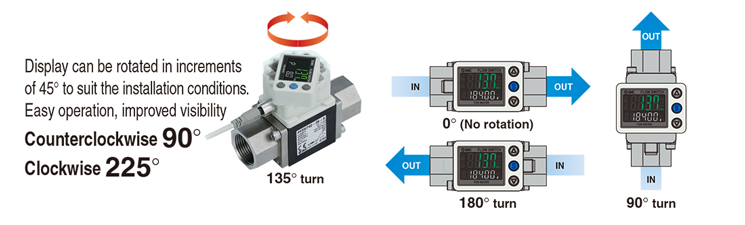

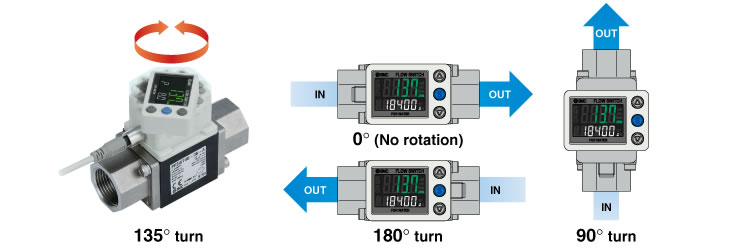

■Rotatable display

Display can be rotated in increments of 45° to suit the installation conditions.
Easy operation, improved visibility.

Counterclockwise 90° Clockwise 225°

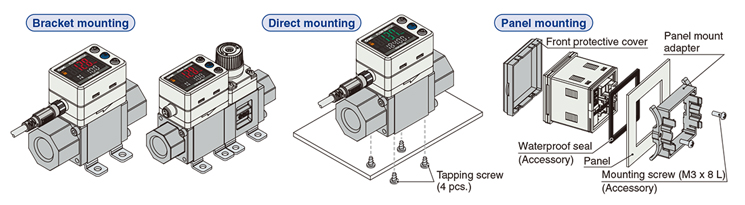

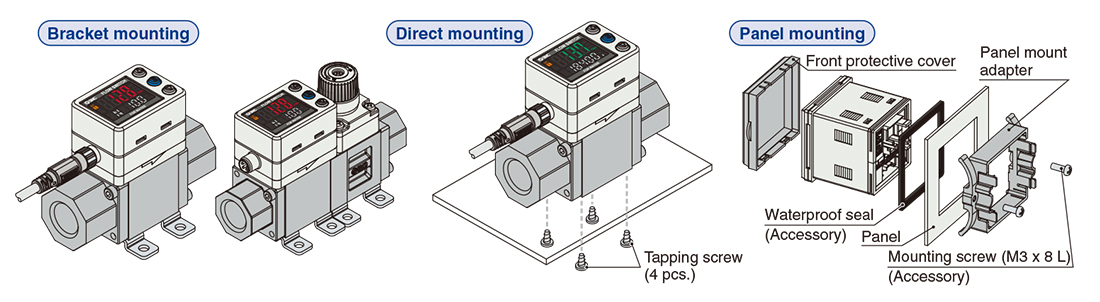

■Mounting

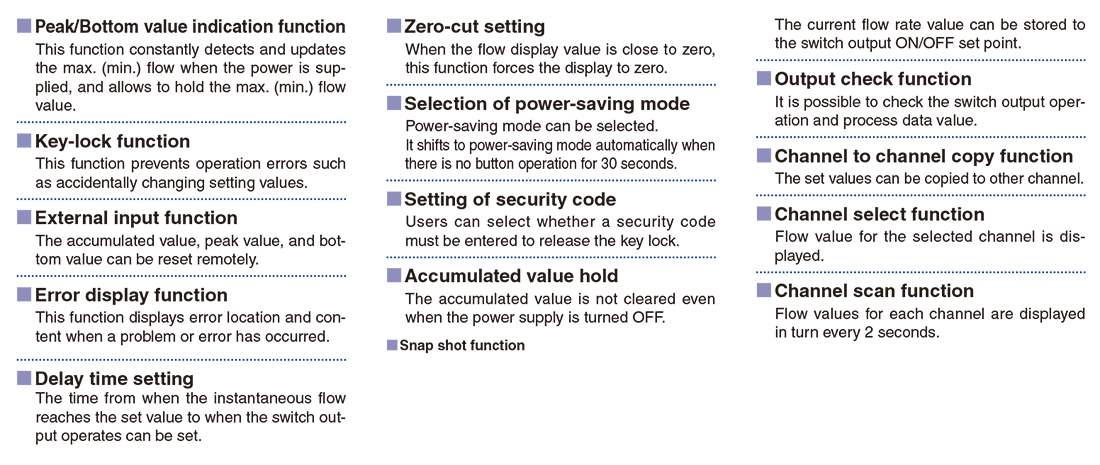

■Other Features

IP65 Compliant
Fluid temperature: 0 to 90°C
Ethylene glycol aqueous solution can be used

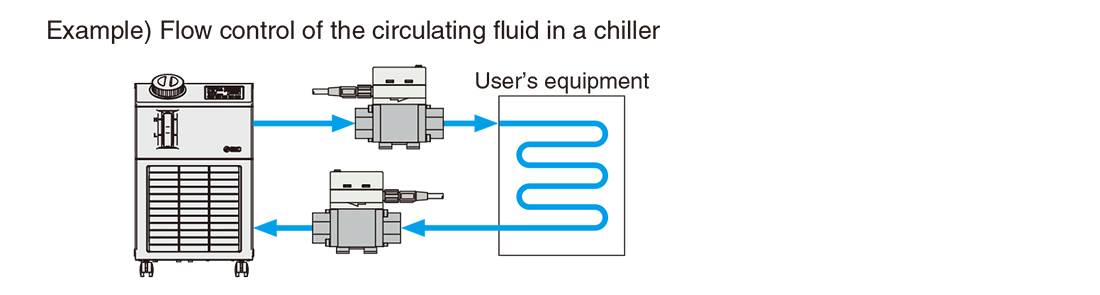

Example) Flow control of the circulating fluid in a chiller

■Non-grease type
