WEB Catalog

Fittings & Needle Valve/Tubing

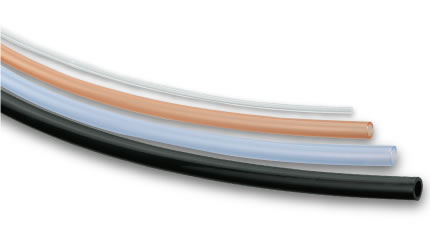

Fluoropolymer Tubing (PFA) TLM/TILM

    ・Operating temperature (fixed usage): Air, Inert gas: −65 to 260°C
                        Water: 0 to 100°C (No freezing)
    ・Food Sanitation Law compliant
    ・Compliant with the FDA's (Food and Drug Administration)
     § 177.1550 dissolution test

Features

■Max. operating temperature::260℃
■22 size variations

Metric size:ø2 to ø25 (13 sizes)

Length per roll:10 m, 20 m, 50 m, 100 m
Straight:2 m

Inch size:1/8'' to 1 1/4'' (9 sizes)

Length per roll:10 m, 20 m, 50 m, 100 m,
16 m (50 ft), 33 m (100 ft)
Straight:2 m

■4 color variations
■Applications
  • Photovoltaic cell manufacturing
  • LCD manufacturing
  • HDD manufacturing
  • Medical
  • Food
■Complies with Food Sanitation Law
  • Complies with the test conforming to Japan’s Food Sanitation Law based on the 370th notice given by the Ministry of Health and Welfare in 1959.
  • Complies with FDA (Food and Drug Administration) §177-1550 dissolution test.
■SMC Fluoropolymer Tubing Variations
