Mounting Kit for Multi-Axis System

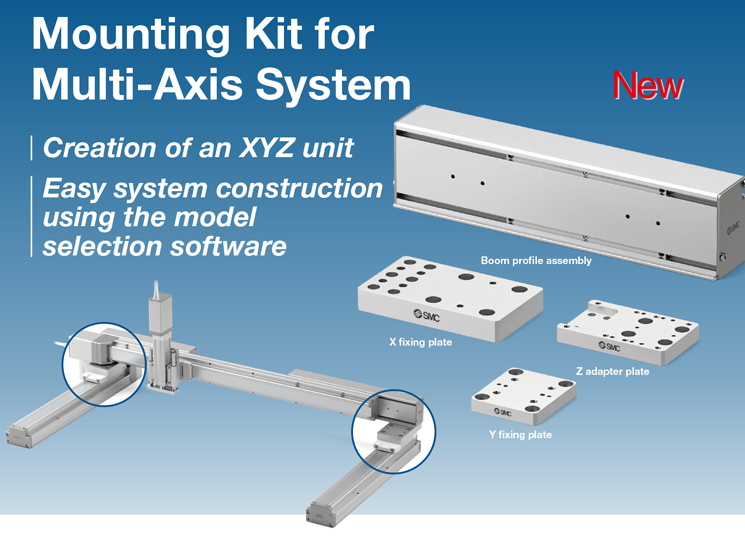

Mounting Kit for Multi-Axis System LEA

    ・Creation of an XYZ unit
    ・Easy system construction using the model selection software
    ・Compatible actuators
    　X-Y-axis: LEFS series, LEFB series, LEKFS series
    　Z-axis: LEYG series
    ・Compatible controllers/drivers (For single axis)
    　JXC51/61 series, JXC91/E1/P1/D1/L1/M1 series, LECS□‐T/LECY□ series
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Mounting Kit for Multi-Axis System LEA
    Manual
    Series View search result
    LEAView search result
Safety Instructions　Green Procurement (RoHS)
SeriesCompatible Actuators (X-Y-axis)Compatible Actuators (Z-axis)Compatible Controllers/Drivers (For single axis)
LEALEFS Series (Ball Screw Drive), LEFB Series (Belt Drive), LEKFS Series (Slider Type)LEYG Series (Guide Rod Type)JXC51/61 Series, JXC91/E1/P1/D1/L1/M1 Series, LECS□‐T/LECY□ Series

Features

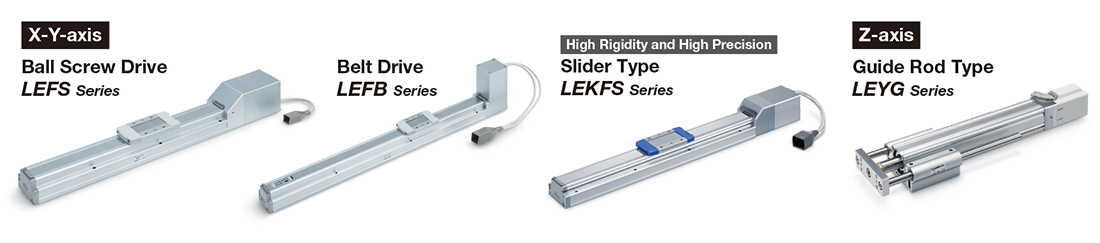

Compatible Actuators

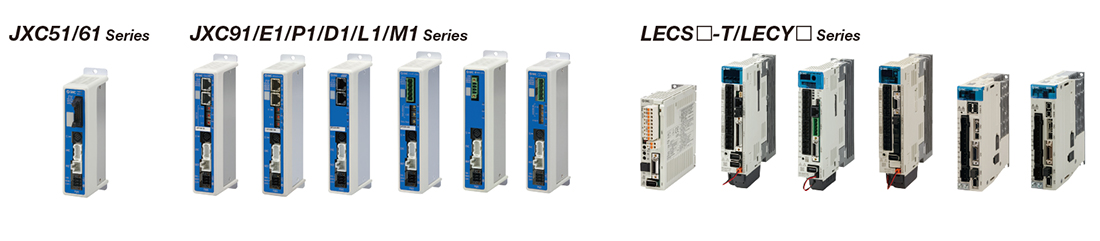

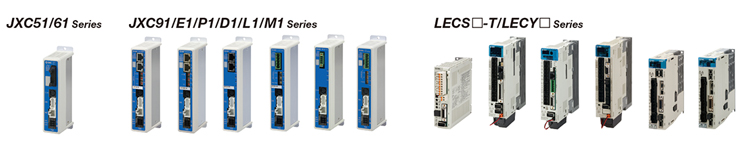

Compatible Controllers/Drivers

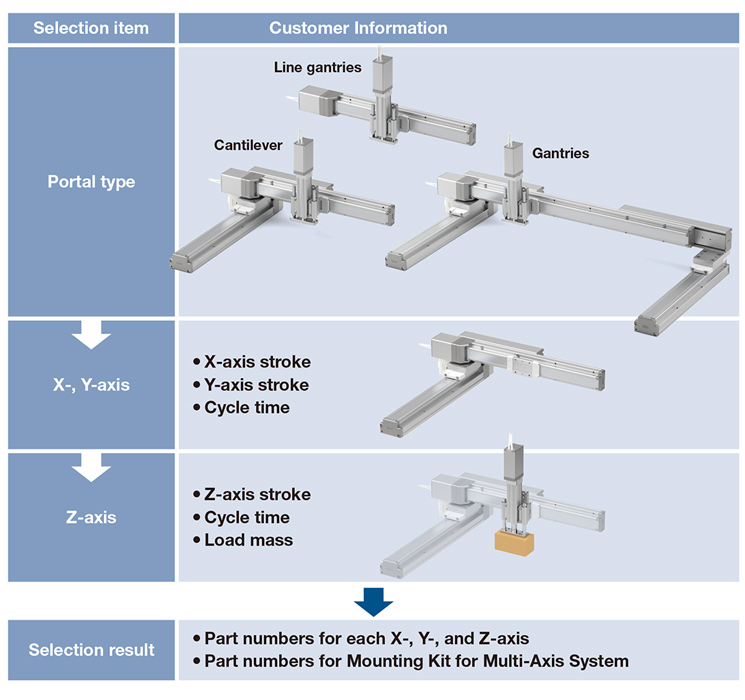

Selection Process

For selection, use the Model Selection Software.

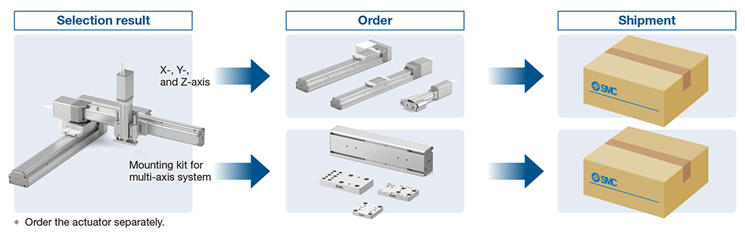

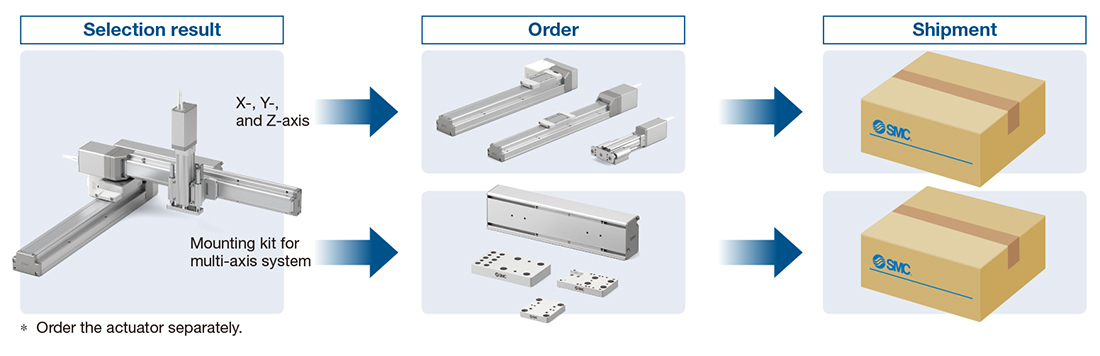

From Selection to Shipment
