Pilot Operated 4/5 Port Solenoid Valves

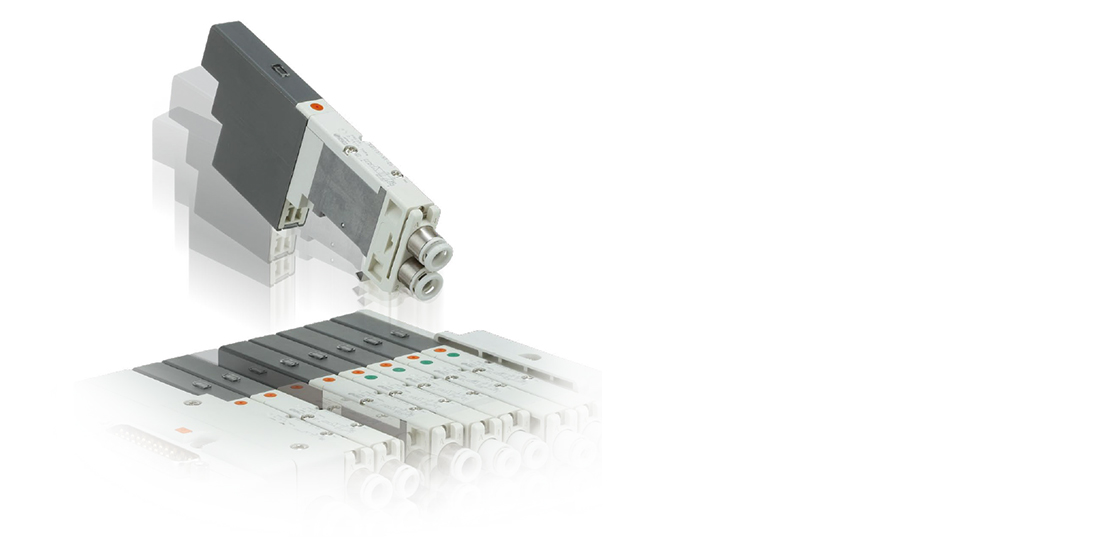

5-Port Solenoid Valve SQ1000/2000

-
・Power saving: Power consumption of 0.4 W (Standard)
・Easy to add or decrease the number of valve stations
・Easy valve maintenance, mountable with one screw
・Easy replacement of clip type One-touch fittings
・Connector entry direction can be changed with a single push.
・4-position, dual 3-port valve
・Built-in back pressure check valve (Option)
・Manifold type no.: SS5Q13, SS5Q14, SS5Q23, SS5Q24
*The EX510 series is to be discontinued. When designing new equipment
and facilities, consider using another series (EX260/EX600) instead.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD 5-Port Solenoid Valve SQ1000/2000
Manual
Series View search result SQ1000 View search result SQ2000 View search result 5-Port Solenoid Valve SQ1000/2000
DoC/IM
Series View search result SQ1000 View search result SQ2000 View search result
Green Procurement (RoHS)
Series | Flow rate characteristics 4/2→5/3(A/B→R1/R2) C[dm3/(s・bar)] | Flow rate characteristics 4/2→5/3(A/B→R1/R2) b | Flow rate characteristics 4/2→5/3(A/B→R1/R2) Cv | Applicable cylinder size | Power consumption (W) |
---|---|---|---|---|---|
SQ1000 | 0.8 | 0.20 | 0.19 | φ32 | 0.4(Standard) 0.95(High pressure type) |
SQ2000 | 3.1 | 0.18 | 0.71 | φ63 | 0.4(Standard) 0.95(High pressure type) |
Features
Power Saving
Power consumption 0.4W (Standard) , 0.95W High (pressure)
Compared to existing model 60% DOWN
Easy to add or decrease the number of valve stations.
The use of cassette style valves and manifolds makes it easy to increase or decrease the number of stations on a DIN rail.
The plug-in type includes two extra valve station connectors.
This design makes rewiring unnecessary during manifold expansion.
Easy valve maintenance
Mountable with one screw.

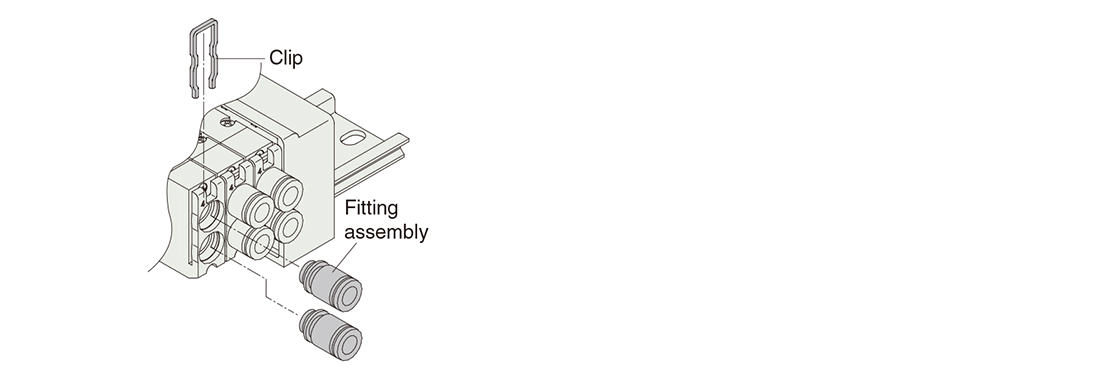

Easy Replacement of Clip Type One-touch Fittings
One-touch fittings can be replaced without removing valves.

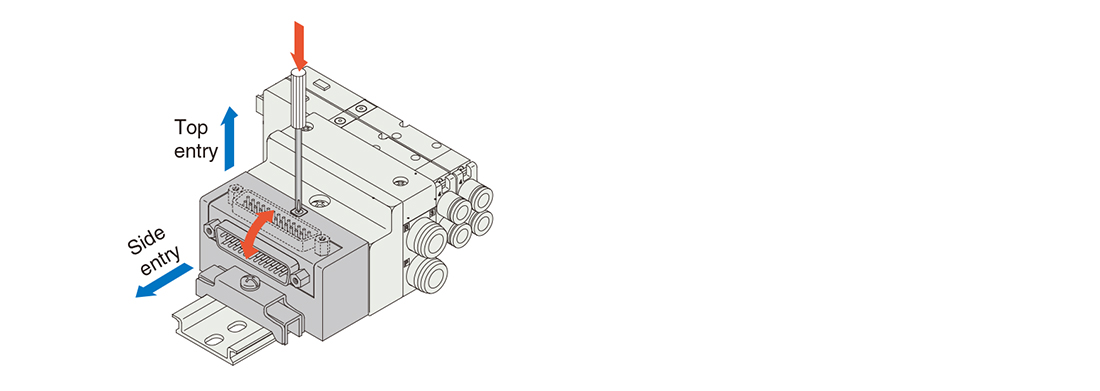

Connector Entry Direction Can be Changed with a Single Push
The connector entry direction can be changed from the top to the side by simply pressing the manual release button.
It is not necessary to use the manual release button when switching from the side to the top.

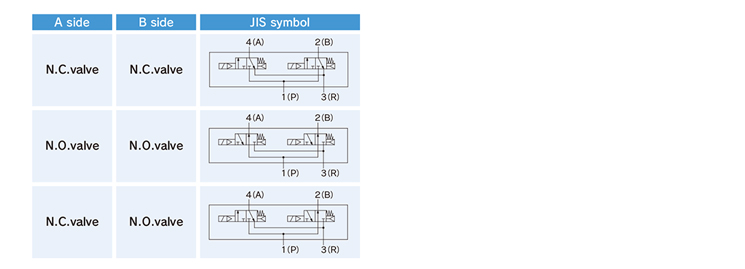

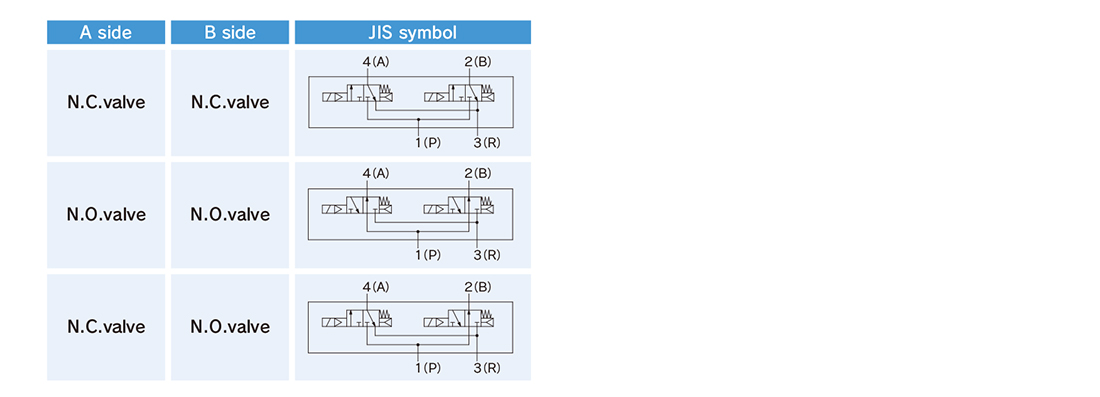

4 Position Dual 3 Port Valve
・Two 3-port valves built into one body.
・The 3-port valves on the A and B sides can operate independently.
・When used as 3-port valves, only half the number of stations is required.
・Can also be used as a 4-position, 5-port valve.

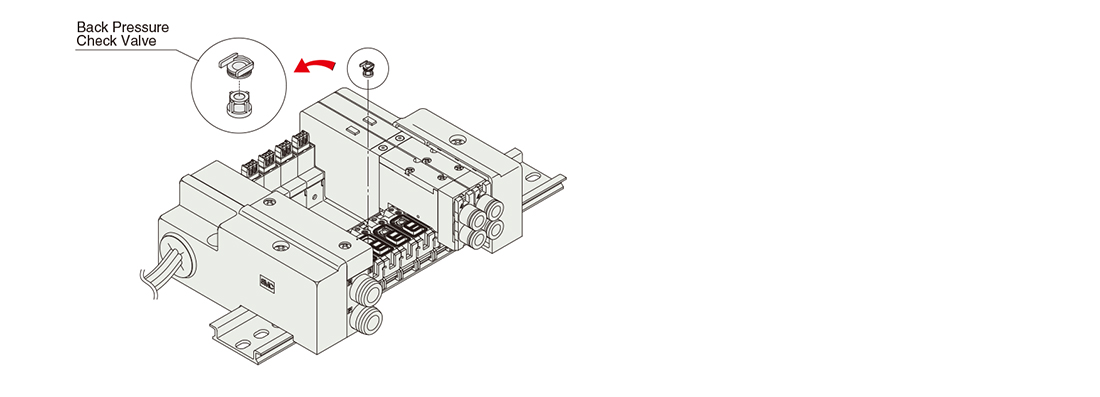

Built-in Back Pressure Check Valve (Option)
Eliminates trouble with back pressure when driving a single acting cylinder or when using an exhaust center type valve, etc.

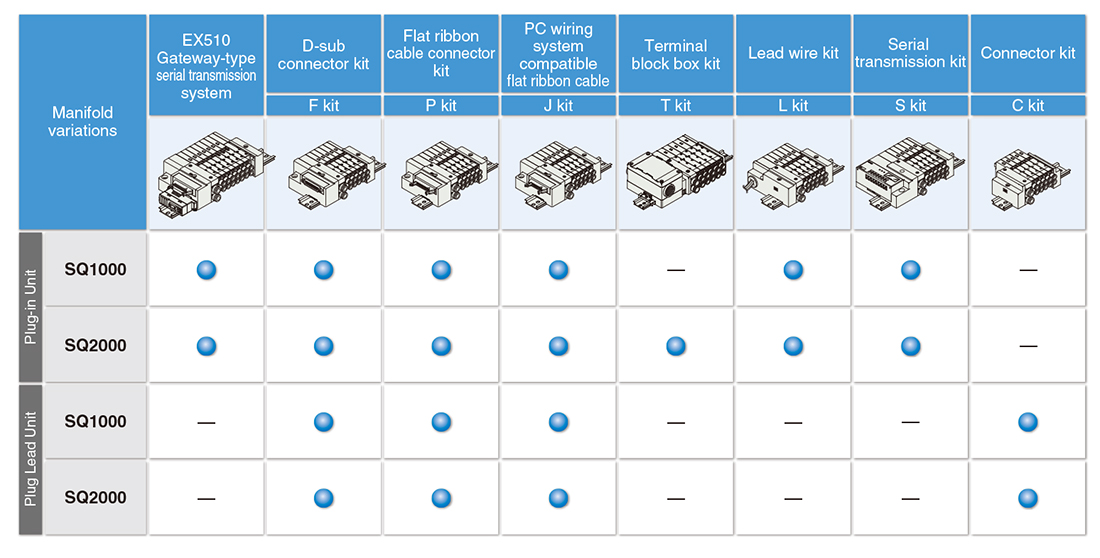

Wiring Type

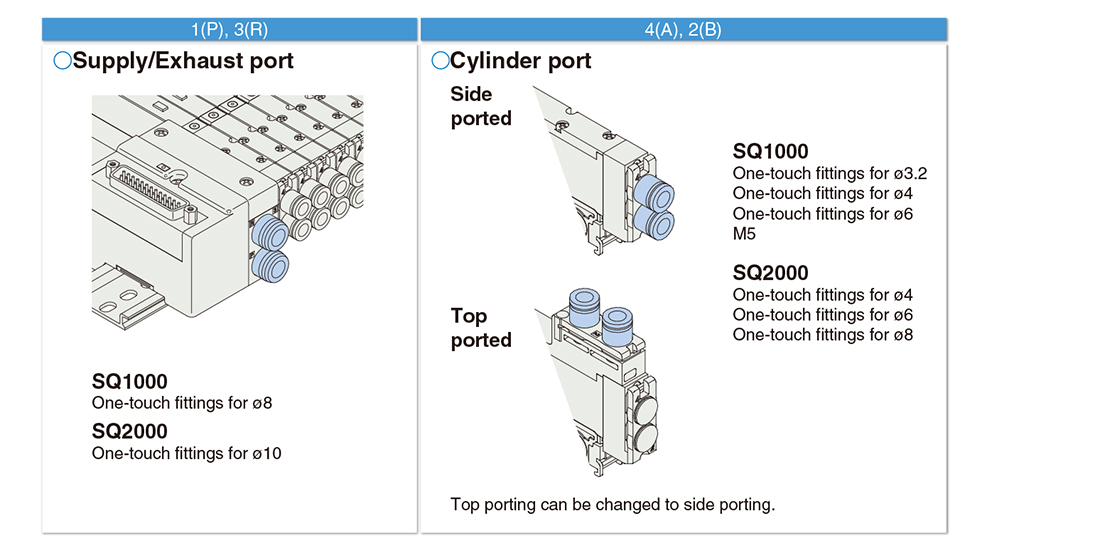

Piping Specifications
