Blow Guns

Blow Gun VMG

    ・SMC “Blow gun” + “S coupler” + “Coil tube” + “Pulse blow unit” Max.60%
    　reduction in CO2 emissions when combined
    ・With Pulse Blow Unit [New]
    　Intermittent pulse blow improves removal efficiency by 35% compared
    　with continuous blow.
    ・Available nozzles: Male thread nozzle (With cover) , Copper extension
    　nozzle (With cover) , Low noise nozzle, High efficiency nozzle, Nozzle
    　with flow rate adjustment function
    ・Connection type: Screw, S coupler plug type, One-touch fitting type
    ・Not affected by supply pressure, assured operability
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Selection/Technical Data　Green Procurement (RoHS)
SeriesOperating pressure range (MPa)Flow rate characteristics (With nozzle removed)Nozzle port sizeFrequency adjustment range
VMG0 to 1.0C (dm3 /s·bar): 6.0, b: 0.25 (Effective area: 30 mm2)Rc1/4-
VMG-P
Blow Gun with Pulse Blow Unit		0.3 to 0.7MPaC (dm3 /s·bar): 6.0, b: 0.25 (Effective area: 30 mm2)Rc1/45 to 10Hz

Features

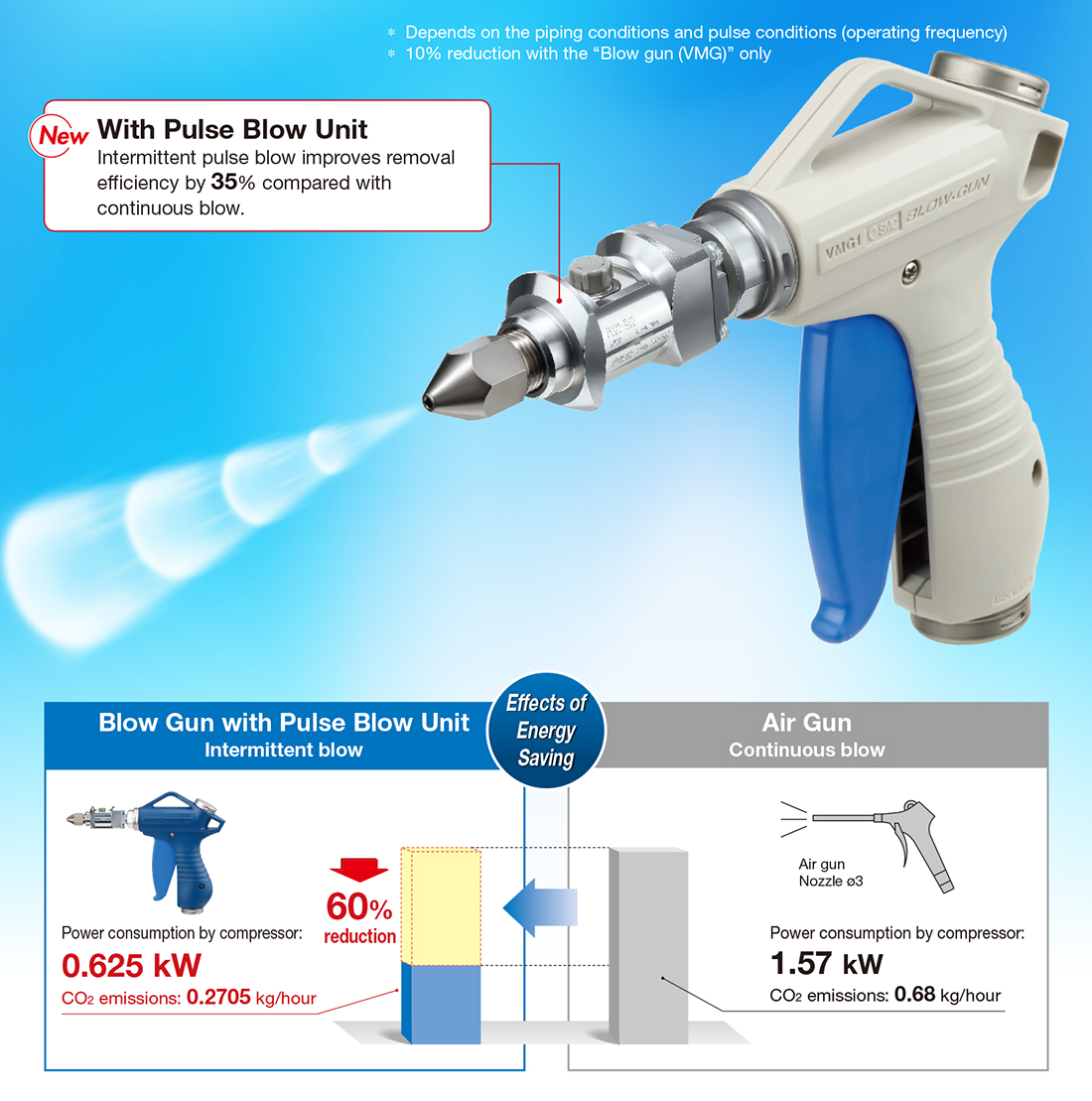

SMC “Blow gun” + “S coupler” + “Coil tube” + “Pulse blow unit” Max.60% reduction in CO2 emissions when combined

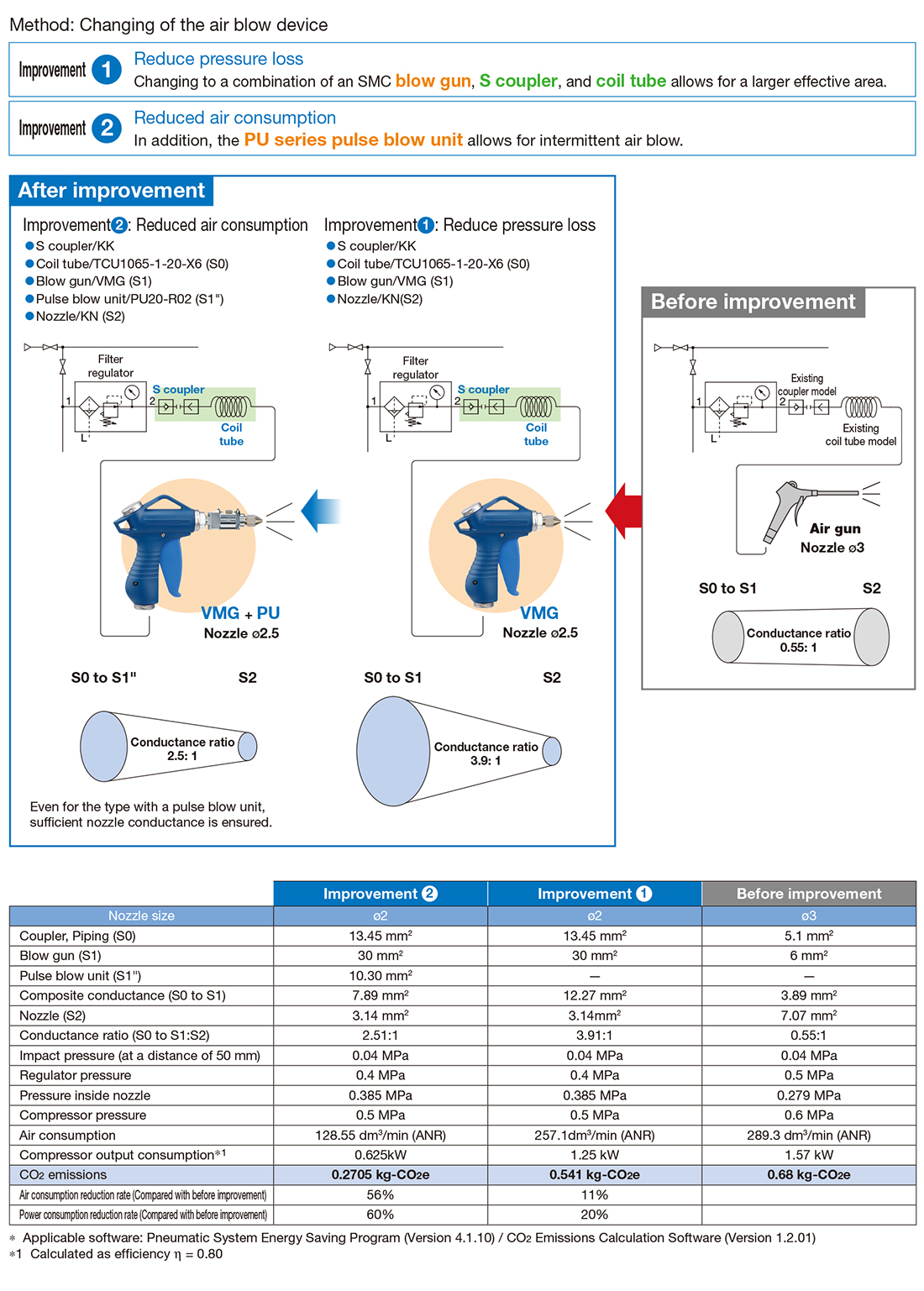

Example of air blow energy-saving improvements

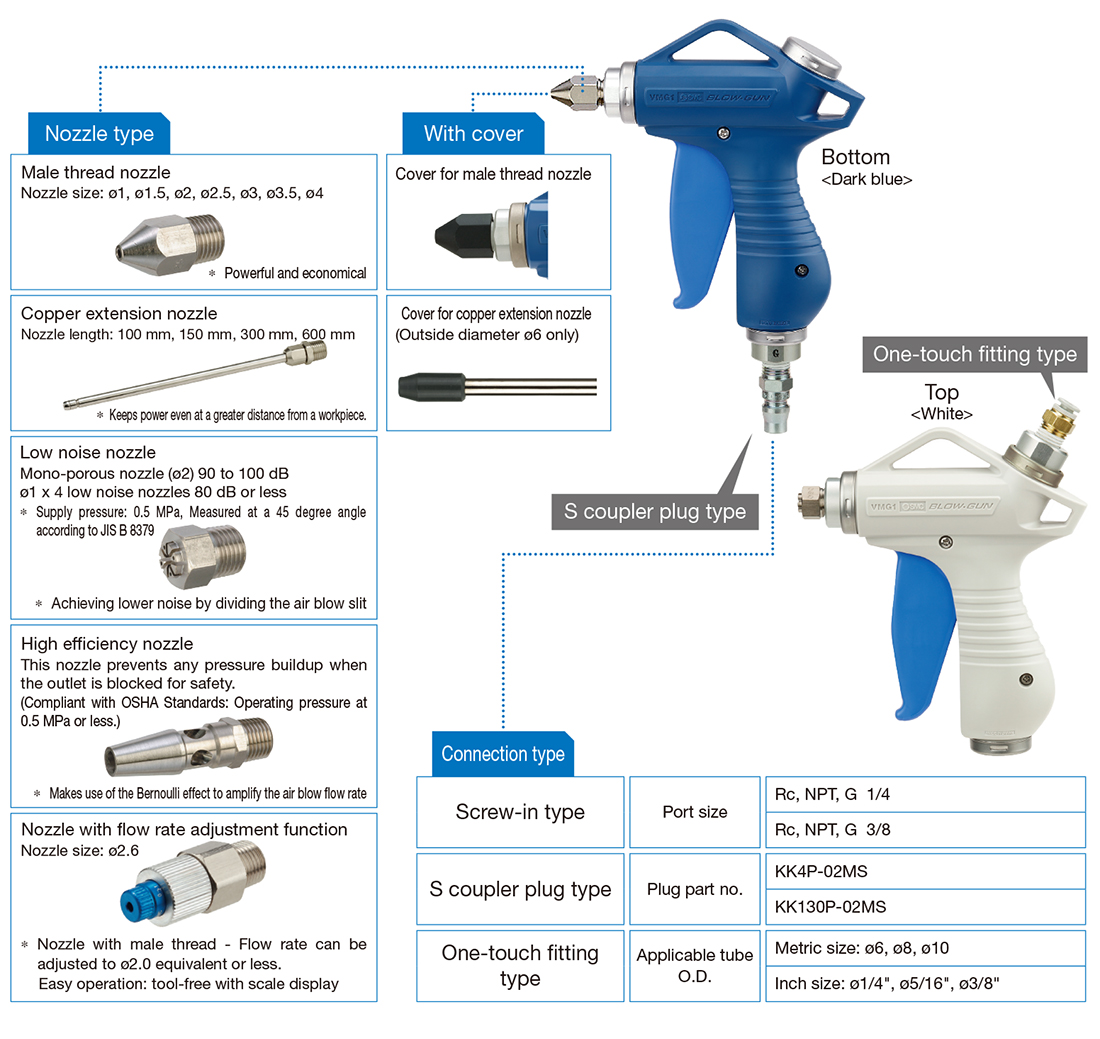

Variations

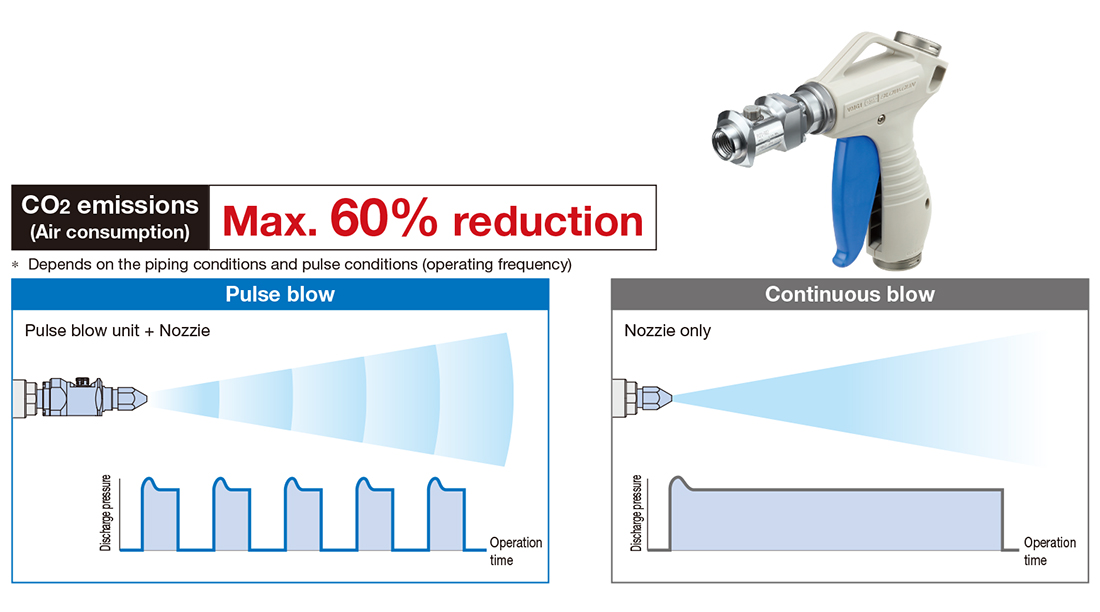

With Pulse Blow Unit/VMG1-P (VMG + PU)

Intermittent pulse blow improves removal efficiency by 35% compared with continuous blow.

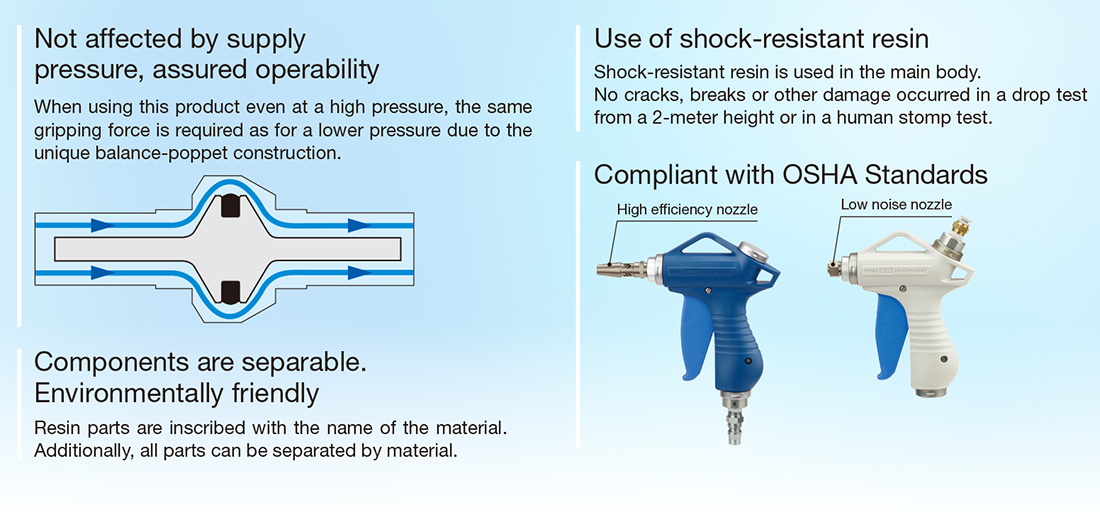

Operability, Safety, Environment

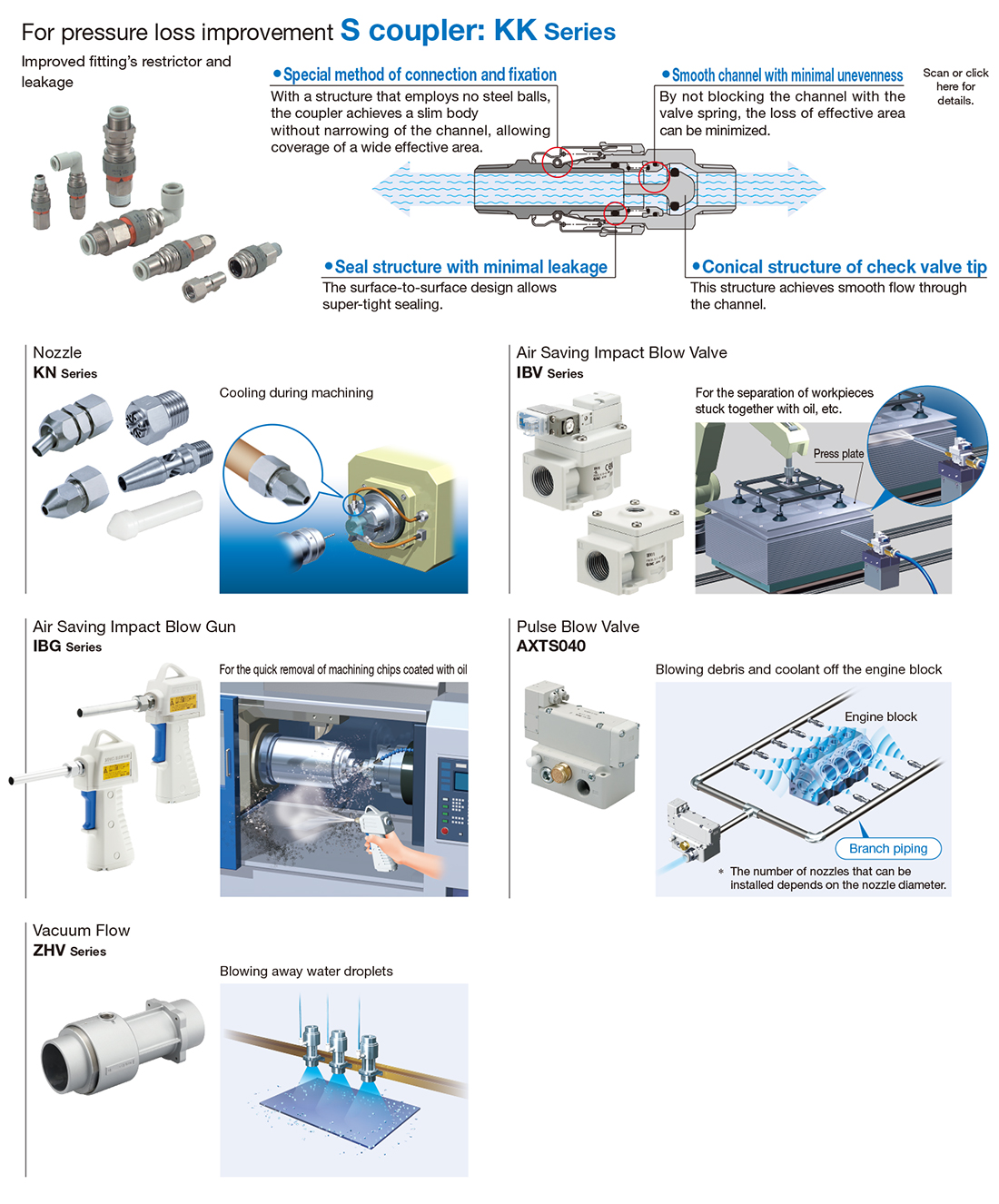

Related Products/Equipment for Blowing
