Energy saving
The power-saving circuit can reduce CO2 emissions
(power consumption) when the device is energized.

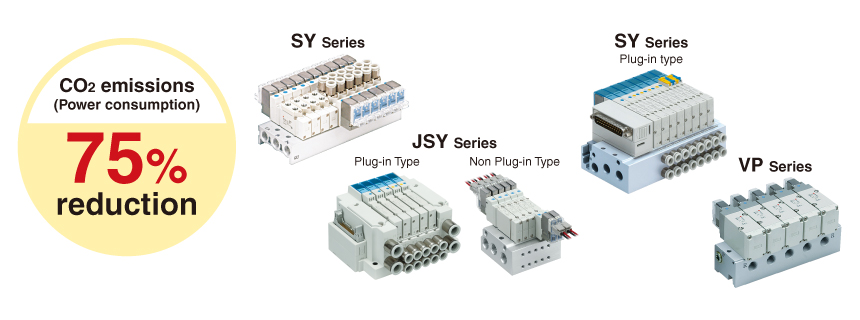

CO2 emissions (Power consumption) 75% reduction

●Reduces power consumption when energized

Power consumption can be reduced by approx. 1/4 by reducing the wattage required to hold the valve in an energized state. (Effective energizing time is over 62 ms＊1 at 24 VDC.) Refer to the electrical power waveform as shown below.

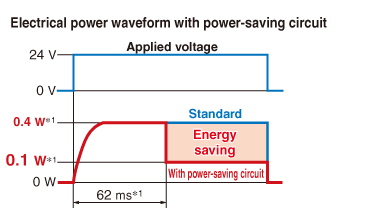

Electrical power waveform with power-saving circuit Applied voltage

＊1 SY/SYJ series

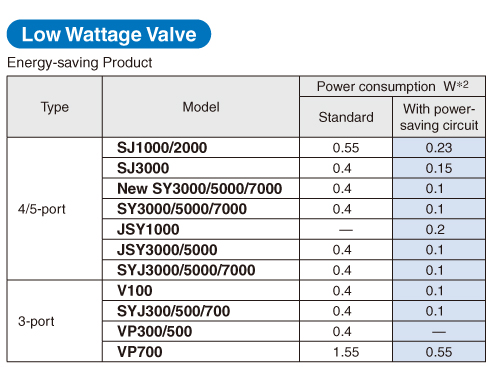

Low Wattage Valve

＊2 With DC light

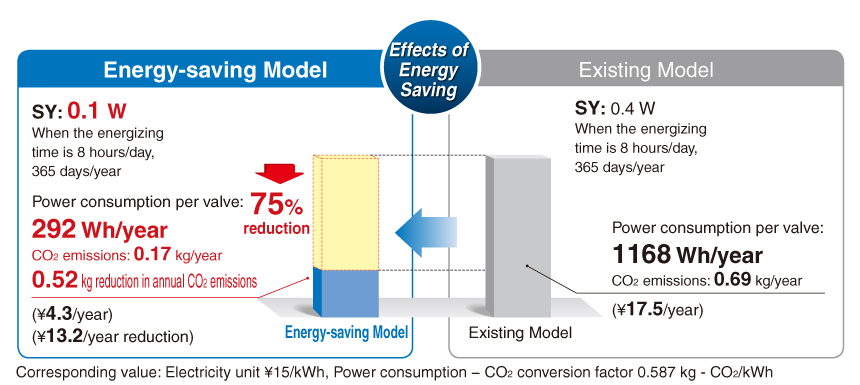

Effects of Energy Saving
Product Information

Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000

Directional Control Valves » Pilot Operated 4/5 Port Solenoid Valves
Features
    ・Size reduction has been made possible thanks to a flow increase
    　This allows for space saving, weight reduction, and a large flow rate.
    ・Power consumption: 0.1 W (With power-saving circuit*), 0.4 W (Standard)
    　*Made to Order
    ・Connector type manifold
    ・A 4-position dual 3-port valve is available
    ・Manifold Type no.: JJ5SY1, JJ5SY3, JJ5SY5
    ・Can be connected with the ZK2 series vacuum unit
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→3/5（A/B→E）
C［dm3/（s・bar）］		Flow rate characteristics
4/2→3/5（A/B→E）
b		Applicable
cylinder size		Power
consumption
(W)
JSY10000.910.48φ400.2 (With power-saving circuit)
JSY30002.770.27φ500.4 (Standard)
0.1 (With power-saving circuit*)
*Made to Order
JSY50006.590.22φ800.4 (Standard)
0.1 (With power-saving circuit*)
*Made to Order

Compact 5-Port Solenoid Valve/Non Plug-in Type
JSY1000/3000/5000

Directional Control Valves » Pilot Operated 4/5 Port Solenoid Valves
Features
    ・Size reduction possible thanks to a flow increase
    　This leads to space saving, weight reduction, and a large flow rate.
    ・Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard)
    　*Made to Order
    ・4-position dual 3-port valve available
    ・Bottom ported is prepared (A, B port).
    ・Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
    ・Body ported single unit (For mounting P.E plate)
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→3/5（A/B→E）
C［dm3/（s・bar）］		Flow rate ccharacteristics
4/2→3/5（A/B→E）
b		Applicable
cylinder size		Power
consumption
(W)
JSY10000.630.28φ320.2(With power saving circuit)
JSY30001.810.27φ500.4(Standard)
0.1(With power saving circuit*)
*Made to Order
JSY50003.720.18φ800.4(Standard)
0.1(With power saving circuit*)
*Made to Order

5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000

Directional Control Valves » Pilot Operated 4/5 Port Solenoid Valves
Features
    ・Due to the flow increase, the valve size can be reduced!
    　Saves energy and space
    ・Power consumption: 0.1 W (With power saving circuit)/0.35 W (Standard)
    ・Plug-in sub-plate has been newly added!
    ・Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
    ・Manifold type no.: SS5Y3, SS5Y5, SS5Y7
    ・Can be connected to F.R.L. units (AC-D series) (-X990)
    ・Supports Interface regulators
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions
Selection/Technical Data　Quick Selection Table　Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→5/3（A/B→EA/EB）
C［dm3/（s・bar）］		Flow rate characteristics
4/2→5/3（A/B→EA/EB）
b		Applicable
cylinder size		Power
consumption
(W)
SY30001.60.19φ500.35(Standard)
0.1(With power saving circuit)
SY50003.60.17φ630.35(Standard)
0.1(With power saving circuit)
SY70005.90.20φ800.35(Standard)
0.1(With power saving circuit)

5-Port Solenoid Valve SY3000/5000/7000/9000

Directional Control Valves » Pilot Operated 4/5 Port Solenoid Valves
    ・The combined mounting of a 3-port valve and a 5-port valve is possible.
    ・Power consumption: 0.1 W (With power saving circuit)
    ・A wide variety of manifold options are available, such as the aluminum body manifold, DIN rail, and stacking type manifold.
    ・Manifold type no.: SS5Y3, SS5Y5, SS5Y7, SS5Y9
    ・Supports Interface regulators
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→5/3（A/B→EA/EB）
C［dm3/（s・bar）］		Flow rate characteristics
4/2→5/3（A/B→EA/EB）
b		Flow rate characteristics
4/2→5/3（A/B→EA/EB）
Cv		Applicable
cylinder size		Power
consumption
(W)
SY30001.10.300.26φ400.35(Standard)
0.1(With power saving circuit)
SY50002.80.290.66φ630.35(Standard)
0.1(With power saving circuit)
SY70004.50.271.1φ800.35(Standard)
0.1(With power saving circuit)
SY9000100.292.5φ1000.35(Standard)
0.1(With power saving circuit)
SY3001.10.300.26φ400.35(Standard)
0.1(With power saving circuit)
SY5002.80.290.66φ630.35(Standard)
0.1(With power saving circuit)

3-Port Solenoid Valve/Pilot Operated Poppet Type VP300/500/700

Directional Control Valves » Pilot Operated 3 Port Solenoid Valves
Features
    ・Built-in full-wave rectifier (AC)
    ・Longer life expectancy: 50 million cycles or more
    ・Built-in strainer in the pilot valve
    ・The external pilot type can be used for vacuum applications.
    ・Manifold type no.: VV3P3, VV3P5, VV3P7
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
2→3(A→P)
C［dm3/（s・bar）］		Flow rate characteristics
2→3(A→P)
b		Flow rate characteristics
2→3(A→P)
Cv		Power
consumption
(W)		For use
in vacuum
applications
VP3004.20.231.01.55(Standard)
0.55(With power saving circuit)
0.4(Low wattage specification)		－100 kPa
VP5008.90.202.11.55(Standard)
0.55(With power saving circuit)
0.4(Low wattage specification)		－100 kPa
VP70015.30.223.71.55(Standard)
0.55(With power saving circuit)		－100 kPa
