Compact 2/3 Port Solenoid Valves

Pulse Blow Valve AXTS040-X202

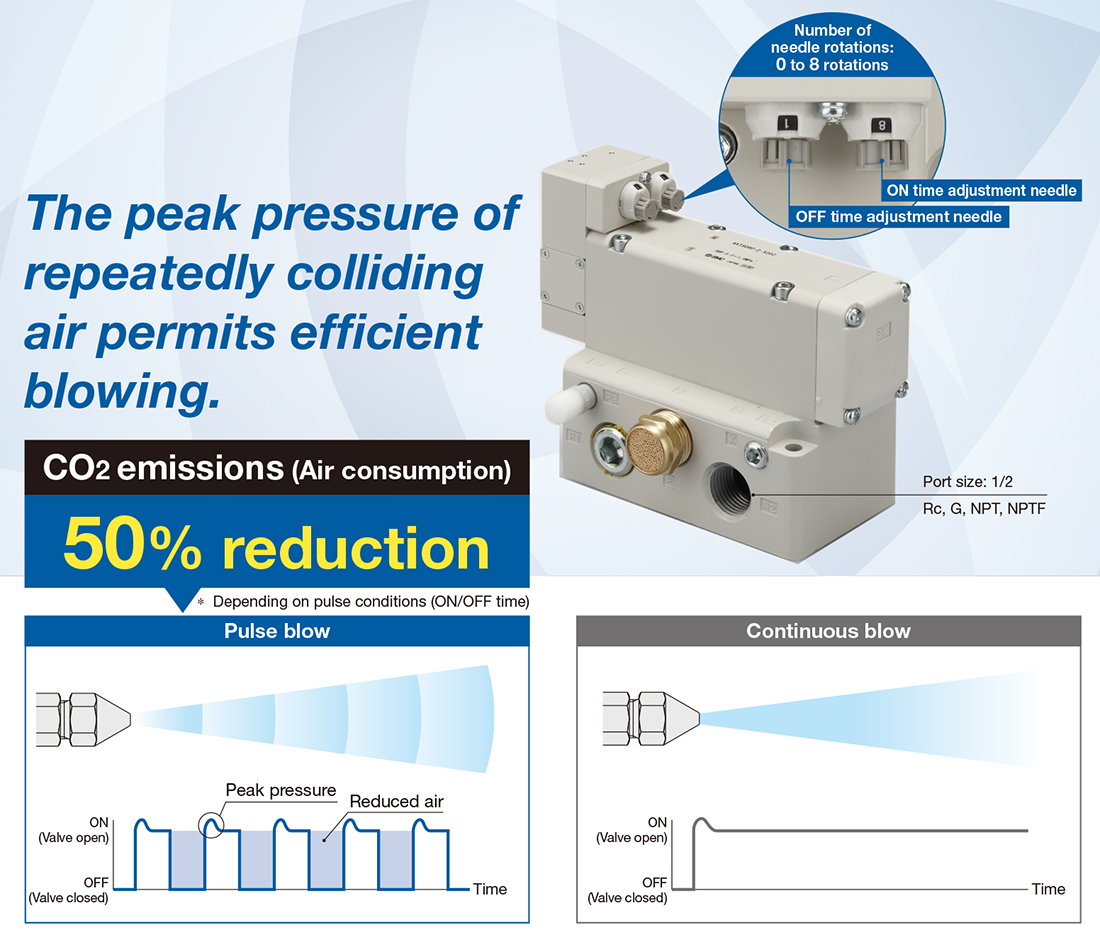

    ・The peak pressure of repeatedly colliding air permits efficient blowing.
    ・CO2 emissions (Air consumption): 50% reduction
    ・Control for pulse generation is not required.
    　Pulse blow can be used by simply supplying air.
    ・Built-in pilot valve construction allows for stable blowing.
  • Pulse Blow Valve AXTS040-X202
    Manual
    Series View search result
    AXTS040□-X202View search result
SeriesValve constructionType of actuationFrequency adjustment range
AXTS040□-X202Metal sealInternal pilot1 to 12 Hz

Features

The peak pressure of repeatedly colliding air permits efficient blowing.

Control for pulse generation is not required.

Pulse blow can be used by simply supplying air.

Built-in pilot valve construction allows for stable blowing.

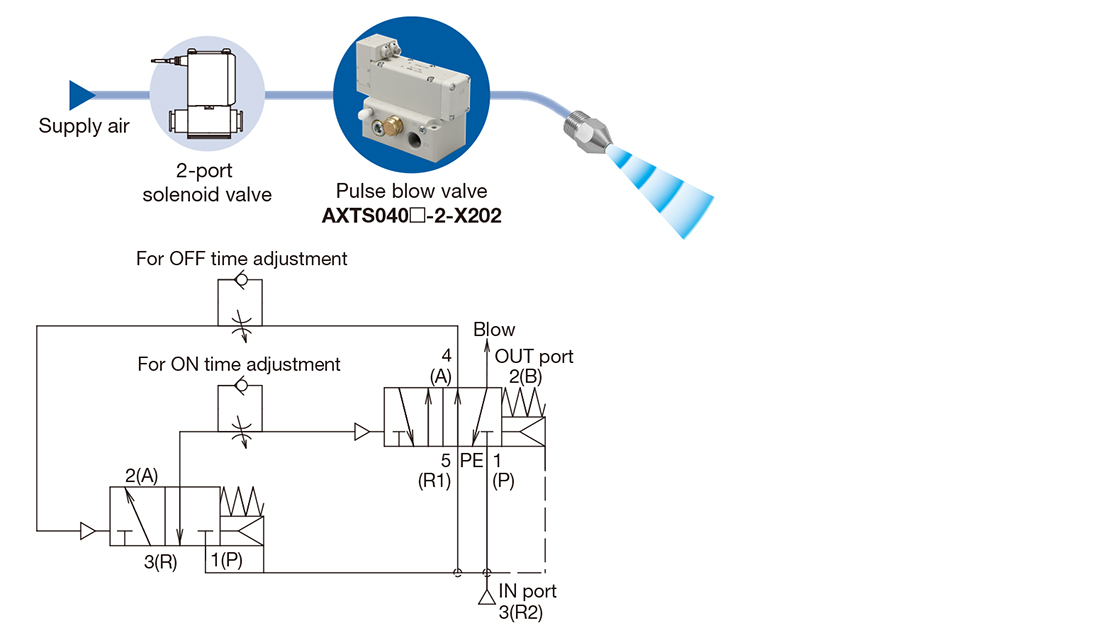

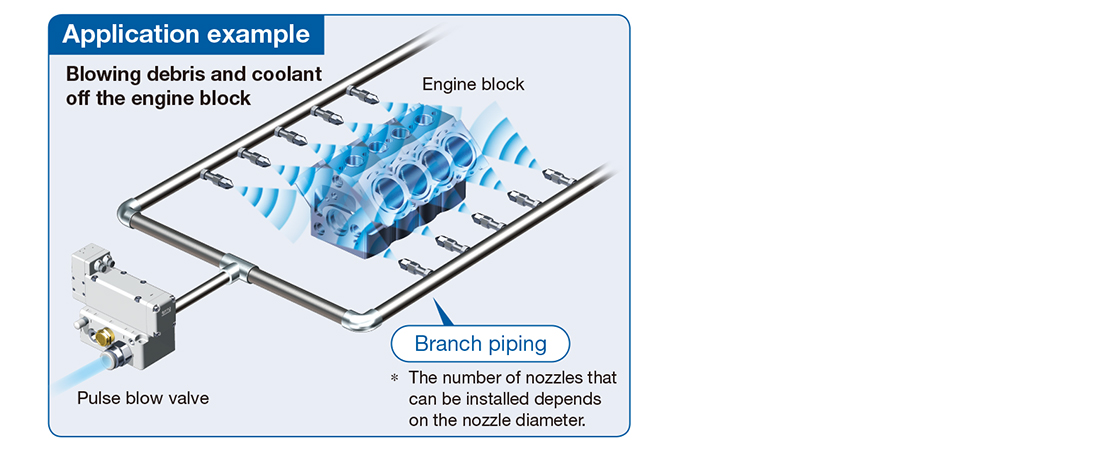

※ The construction, which is less susceptible to operating conditions such as piping diameter and length and nozzle type, allows for easy and stable pulse blow.

Individually adjustable ON/OFF times



Operating pressure range: 0.2 to 1.0 MPa



Operating frequency (Frequency): 1 to 12 Hz
