Chiller Compliant Regulations

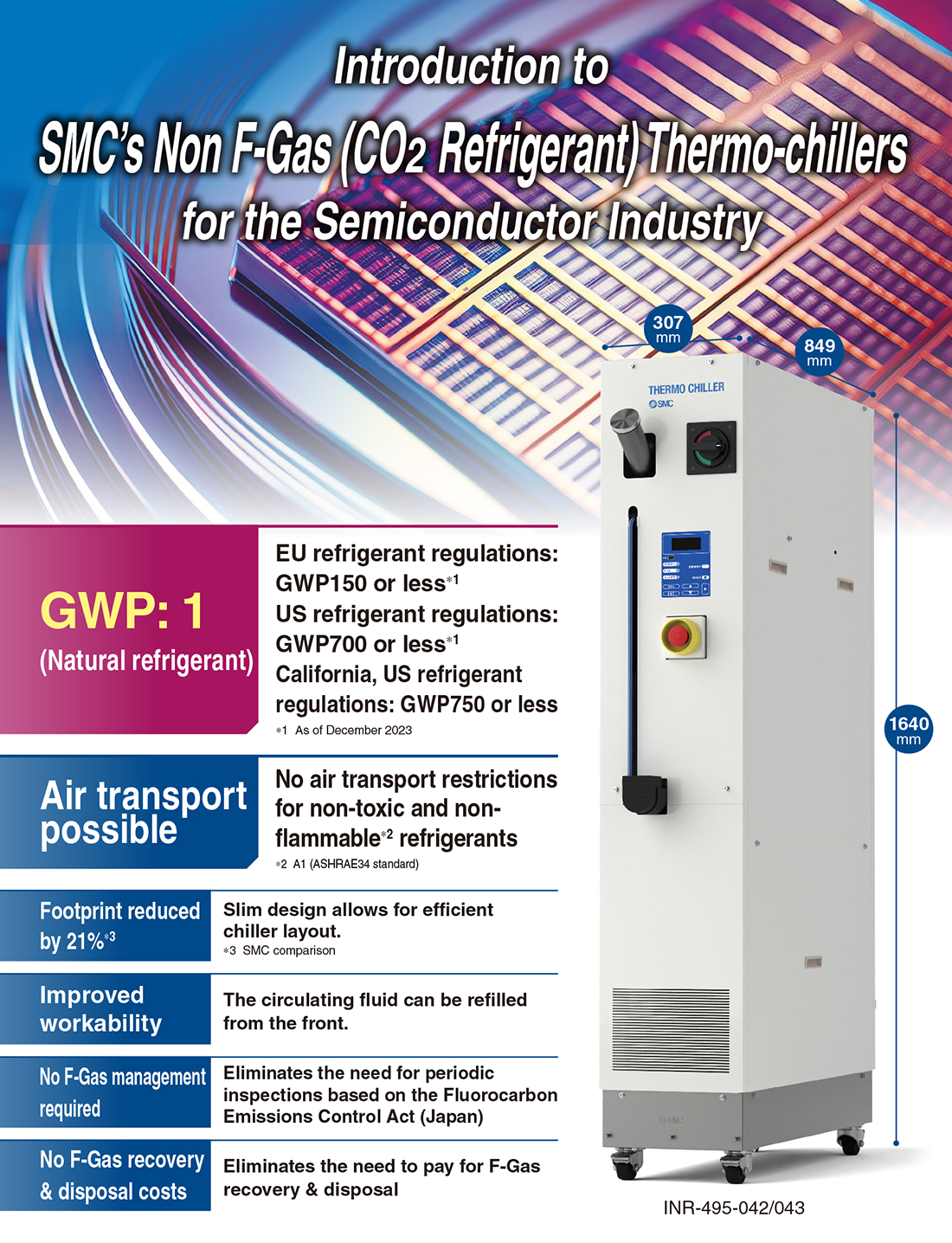

Thermo-chillers for the Semiconductor Industry INR-495-042/INR-495-043
-
・Non F-Gas (CO2 refrigerant)
・GWP: 1 (Natural refrigerant)
・EU refrigerant regulations: GWP150 or less∗
・US refrigerant regulations: GWP700 or less∗
・California, US refrigerant regulations: GWP750 or less
∗As of December 2023
・Air transport possible
No air transport restrictions for non-toxic and non-flammable∗
refrigerants
∗A1 (ASHRAE34 standard)
・No F-Gas management required
Eliminates the need for periodic inspections based on the Fluorocarbon
Emissions Control Act (Japan)
・No F-Gas recovery & disposal costs
| Series | Set temperature range | Cooling capacity | Temperature stability | Cooling method | Circulating fluid |
|---|---|---|---|---|---|
| INR-495-042 INR-495-043 | -20 to 70 | 8.5 kW | ±1.0℃ | Water-cooled refrigeration | Fluorinated fluid |
Features
Non F-Gas (CO2 Refrigerant)
Refrigerant in use: CO2 (R744)
GWP: 1
Standards: SEMI/CE/UL

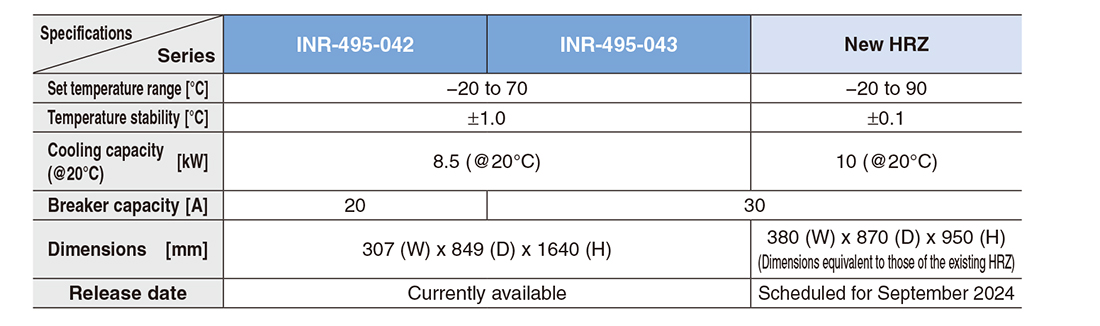

Specifications

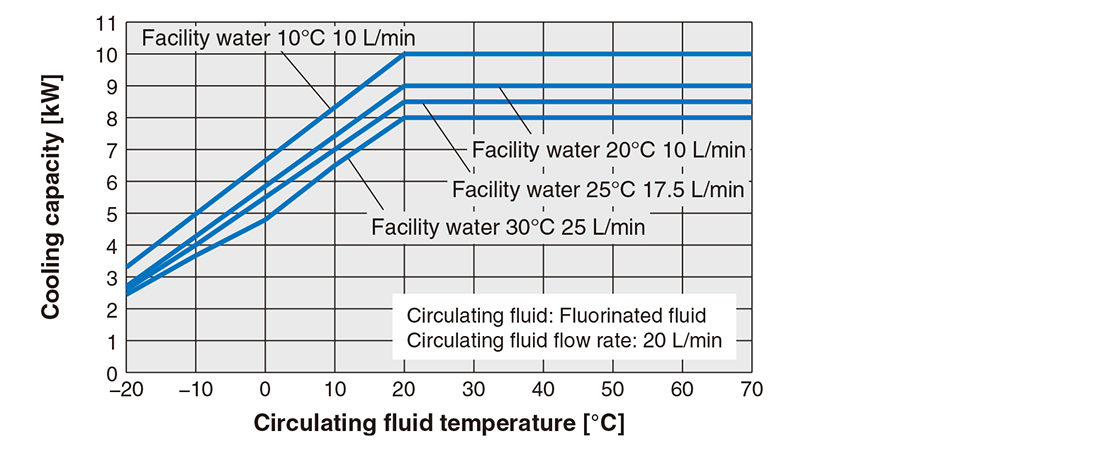

Cooling Capacity (INR-495-042/043)

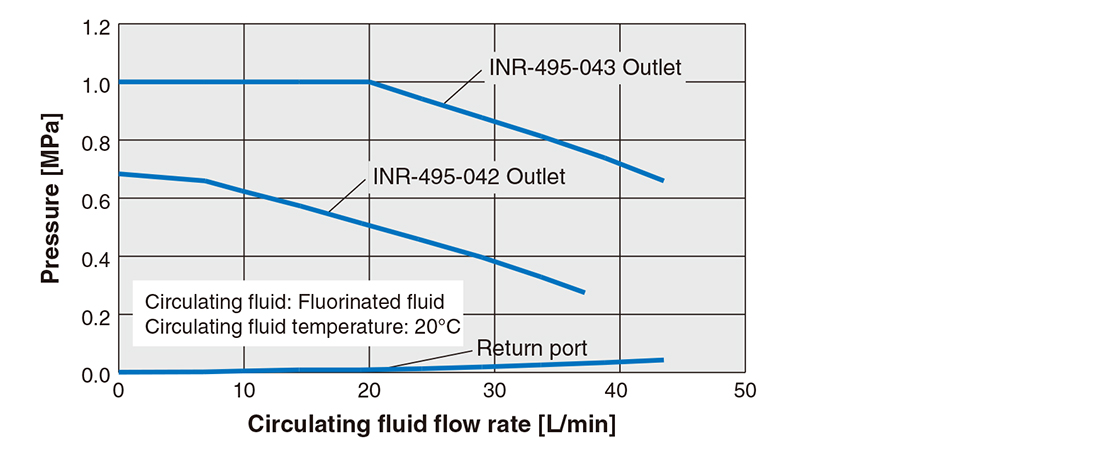

Pump Capacity (INR-495-042/043)

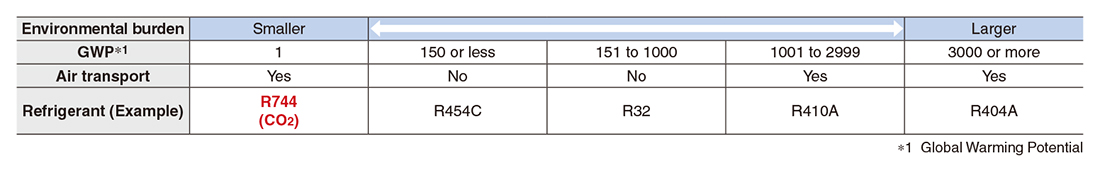

GWP Comparison

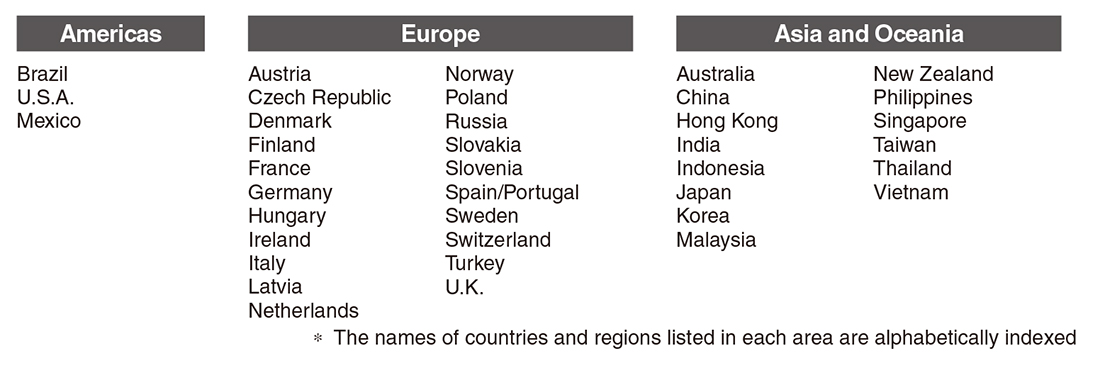

SMC’s Global Maintenance Network
Thanks to a solid inventory of maintenance parts and an experienced chiller support team capable of conducting repairs and replacements, SMC is able to respond to customers’ issues quickly and precisely.
As SMC’s high-quality services are available to customers all over the world, you can rest assured that you’ll have our continued support long after purchase.
