Static Neutralization Equipment Ionizer Gun

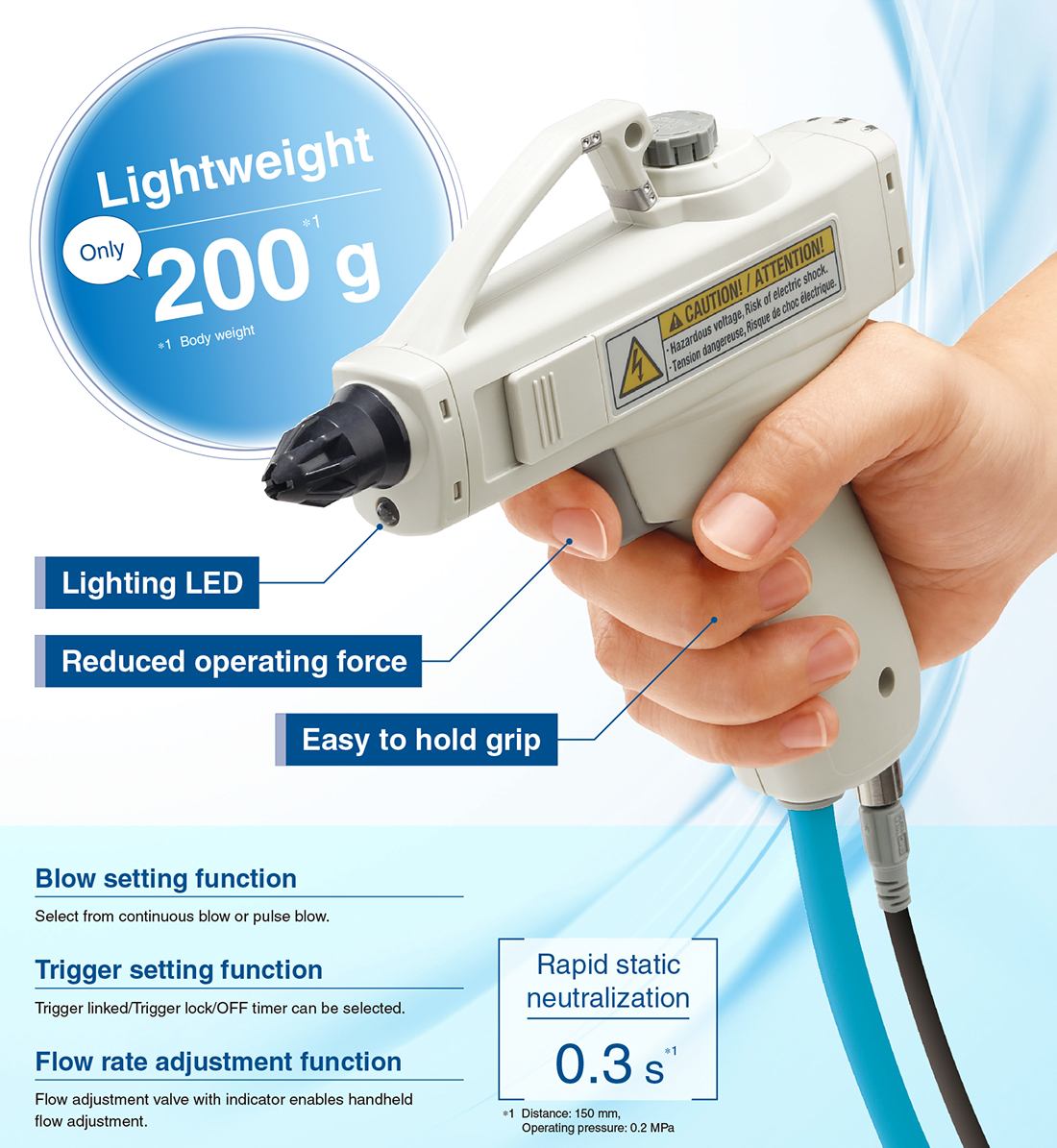

Ionizer Gun IZG10

    ・Lightweight: Only 200 g (Body weight)
    ・Reduced operating force, Easy to hold grip
    ・Lighting LED
    ・Blow setting function
     Select from continuous blow or pulse blow.
    ・Rapid static neutralization: 0.3 s (Distance: 150 mm, Operating pressure: 0.2 MPa)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Ionizer Gun IZG10
    Manual
    Series View search result
    IZG10View search result
  • Ionizer Gun IZG10
    DoC
    Series View search result
    IZG10View search result
SeriesIon generation methodOffset voltage
(Ion balance)
IZG10Corona discharge typeWithin ±10 V

Features

Lightweight: Only 200 g (Body weight)

Blow and trigger setting can be selected.

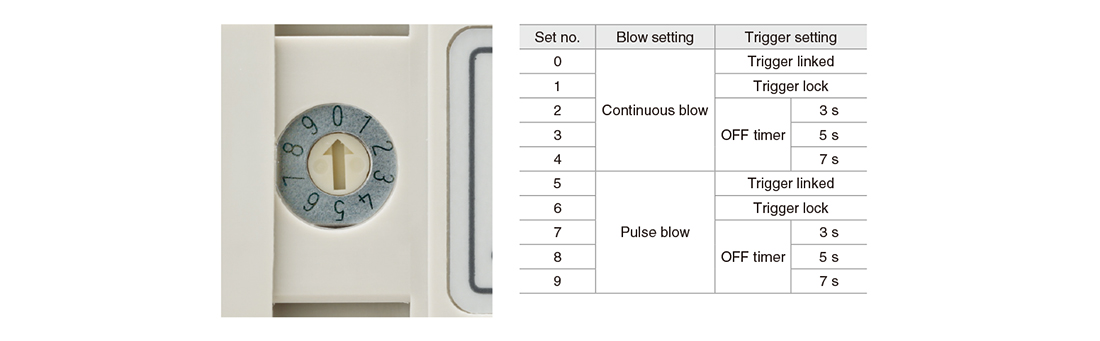

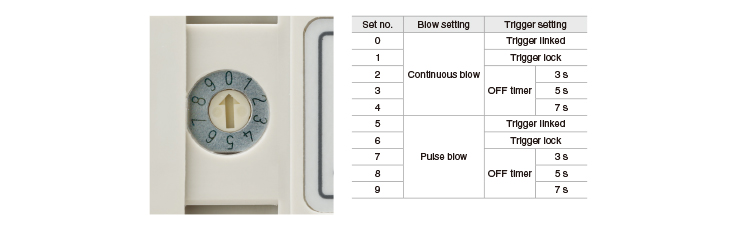

・Mode setting switch

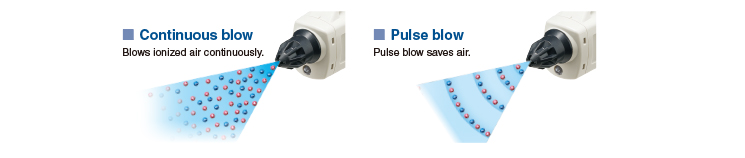

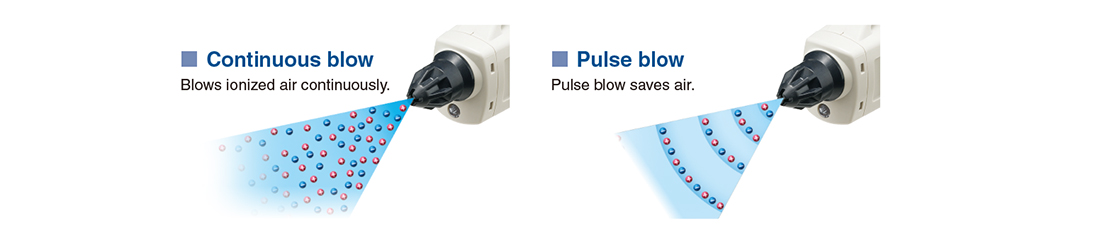

・Selection of blow setting

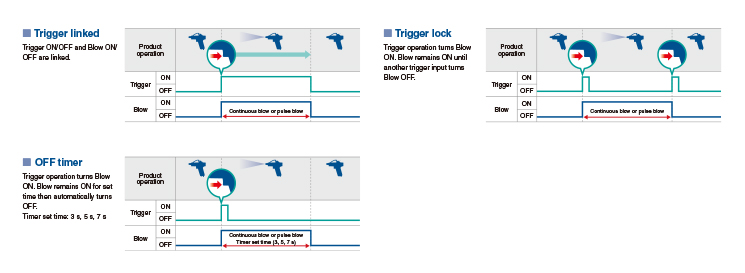

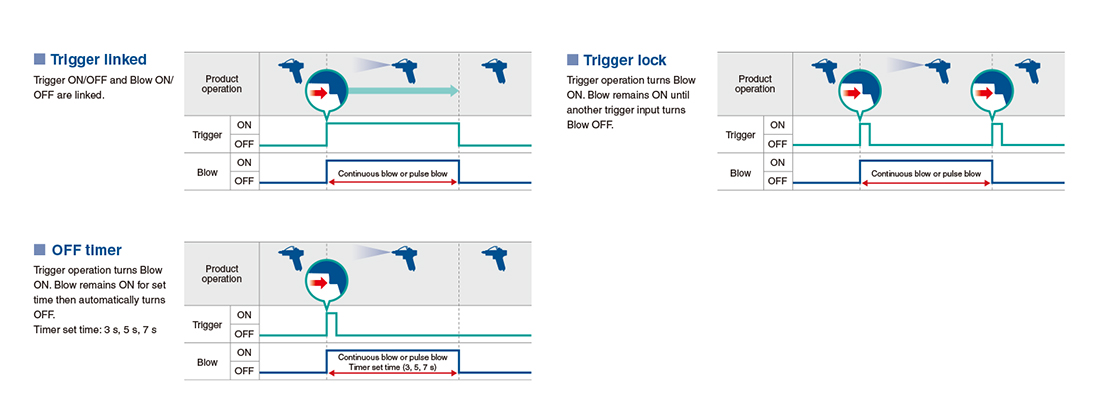

・Selection of trigger setting

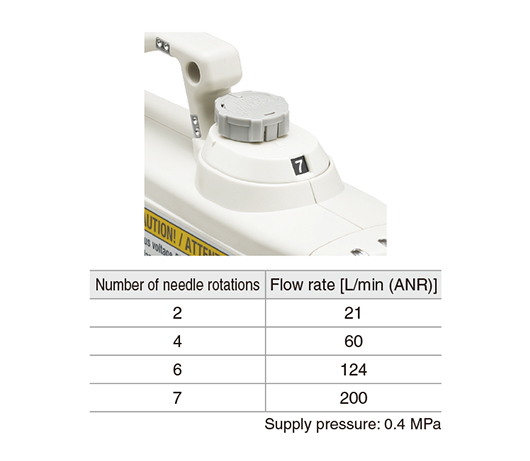

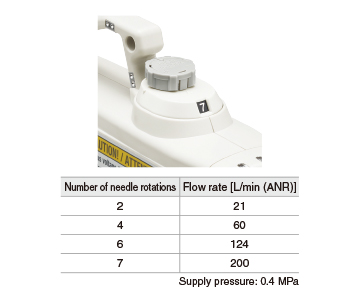

  • With flow adjustment valve (with indicator)

    ・Flow rate of ionized air can be adjusted on the gun.
    ・The flow rate can be controlled numerically.

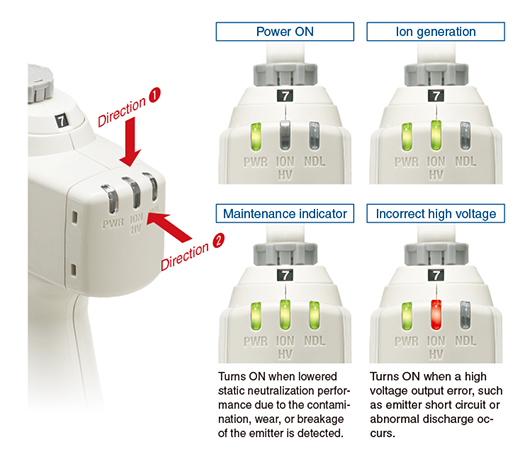

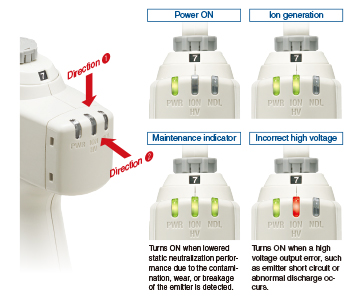

  • High visibility LEDs

    ・Rear mounted LEDs are easy to see during operation.

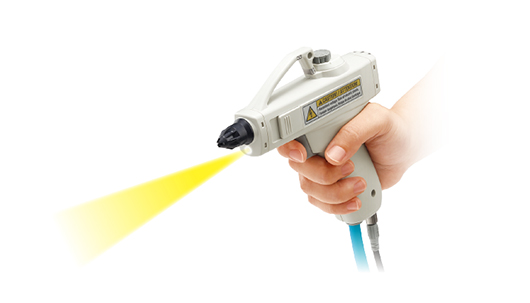

  • Lighting LED

    ・Easy to find particles on the workpiece

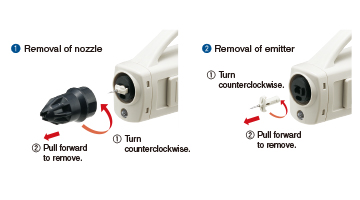

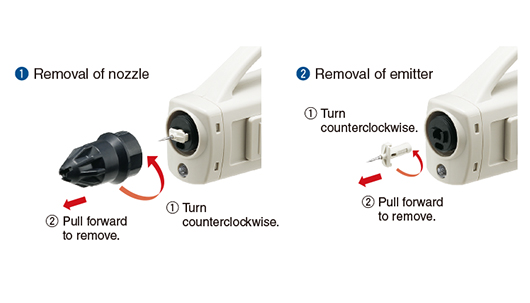

  • Easy cleaning and replacement of emitters

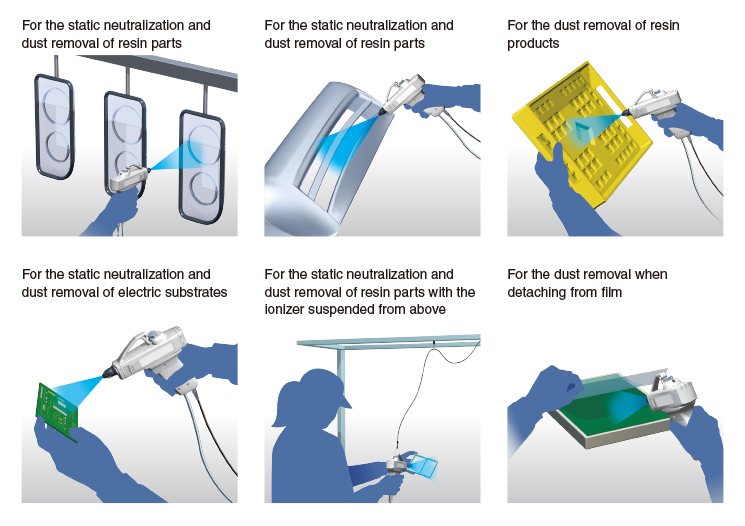

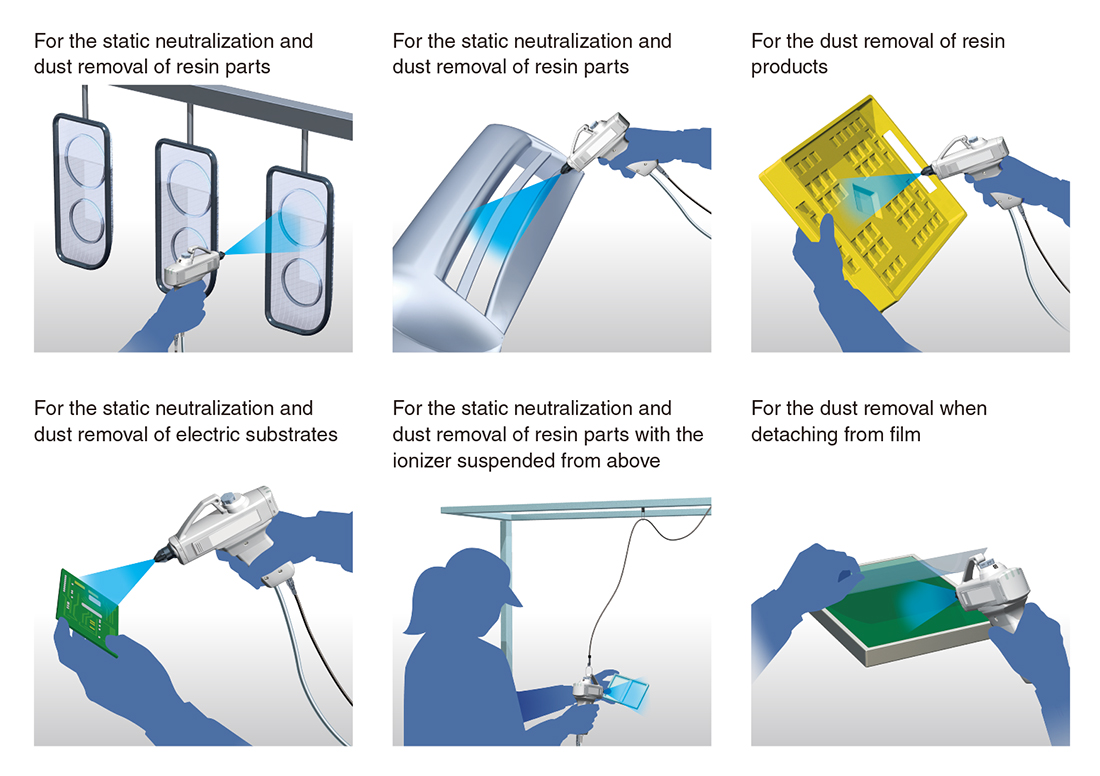

Application Examples
