Speed Controllers for General Purposes

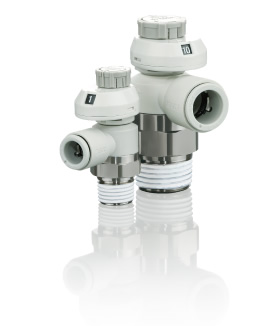

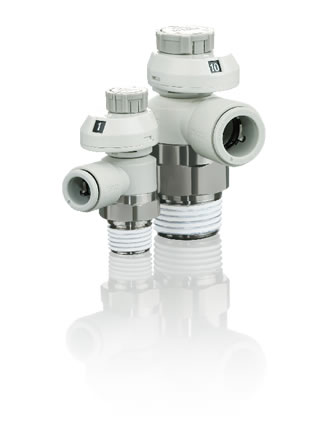

Speed Controller with Indicator AS-FS
-
・The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. The value can be controlled with the indicator window.
・Larger push-lock type knob
・Improved reproducibility of flow rate
・Easier to insert and remove tubes
・Electroless nickel plated type is standard.
・Available with a restrictor (Made to order: -X214, -X21)

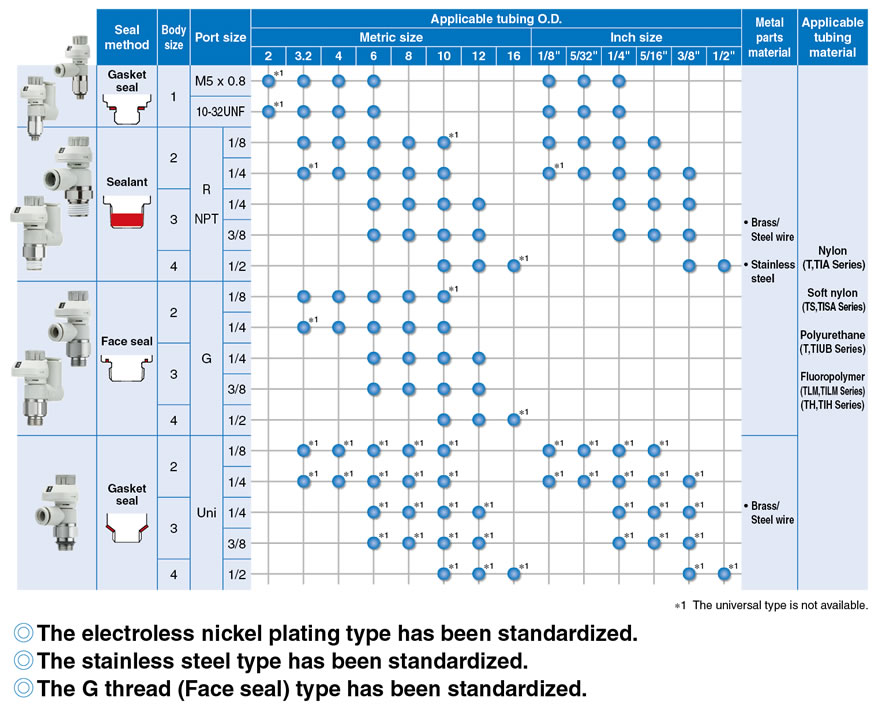

Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
---|---|---|---|---|
Elbow type | AS12□1FS to 42□1FS | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 | φ2 to φ16 | φ1/8'' to 1/2'' |
Universal type | AS13□1FS to 43□1FS | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 | φ3.2 to φ12 | φ1/8'' to 1/2'' |
Features

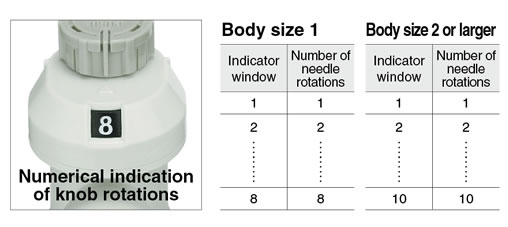

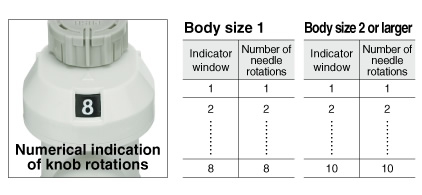

The numerical indication of flow rate knob rotations reduces flow setting time and setting errors!
Indicator window

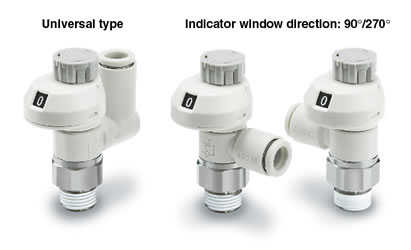

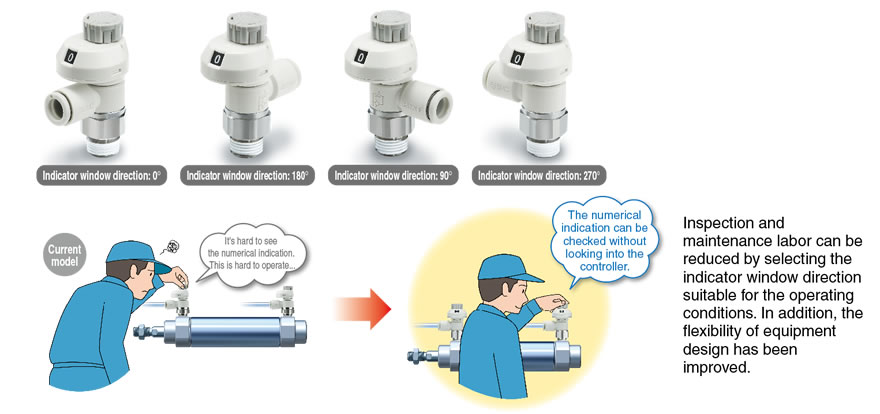

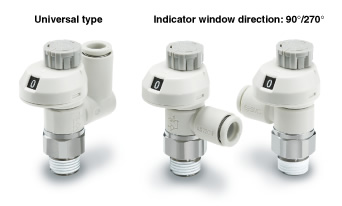

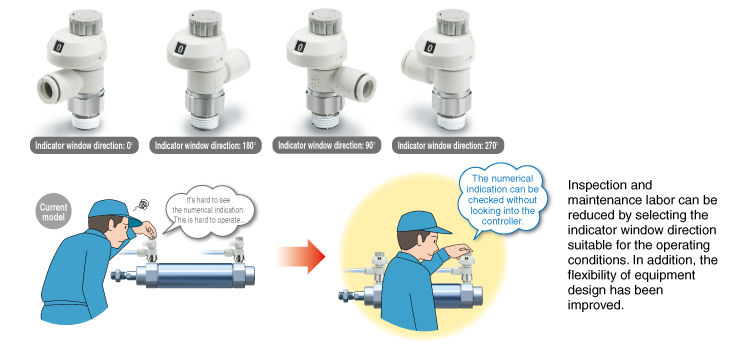

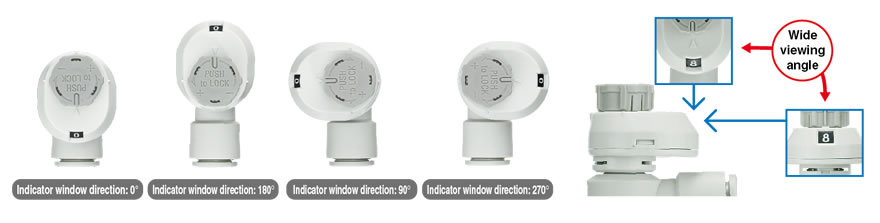

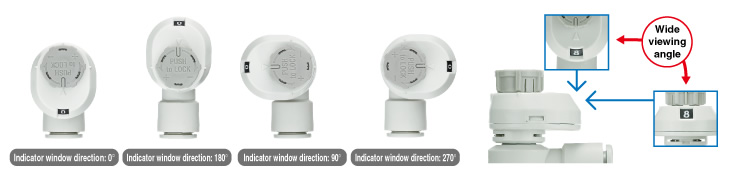

4 indicator window directions available
4 indicator window directions offer improved visibility.

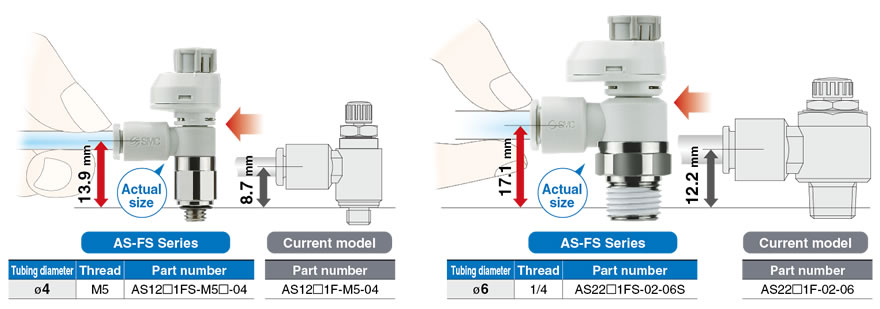

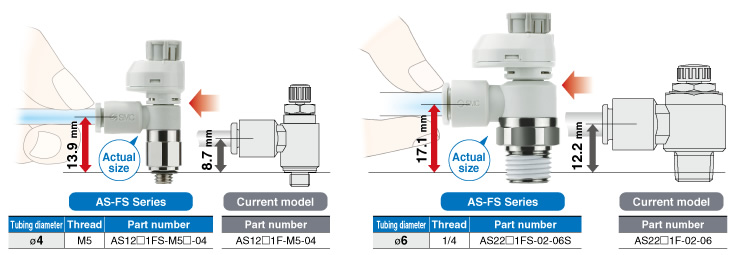

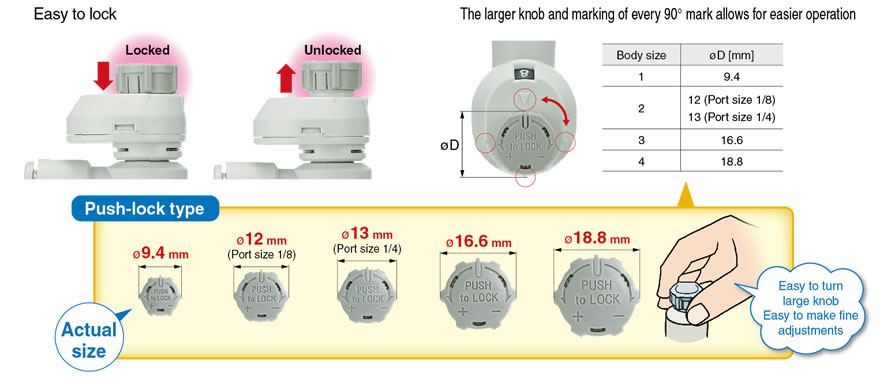

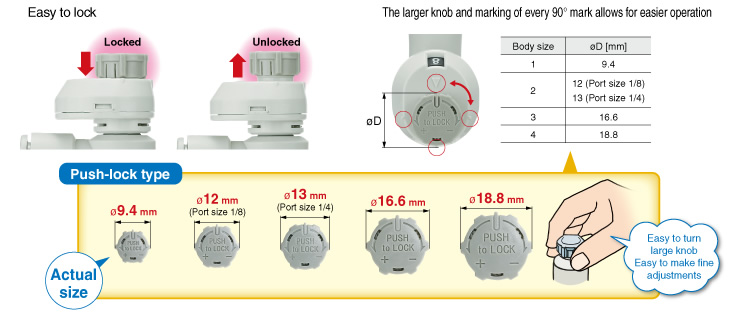

Larger push-lock type knob

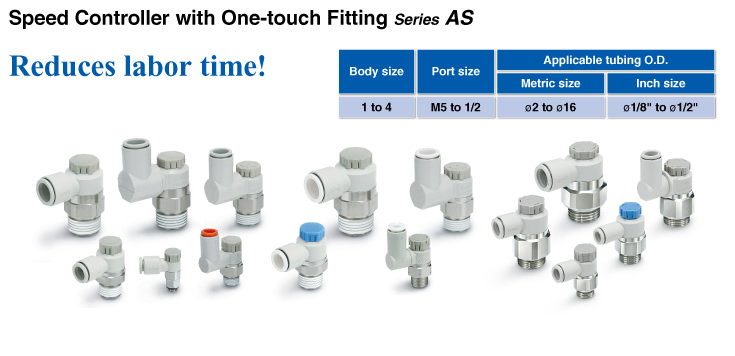

New series added!

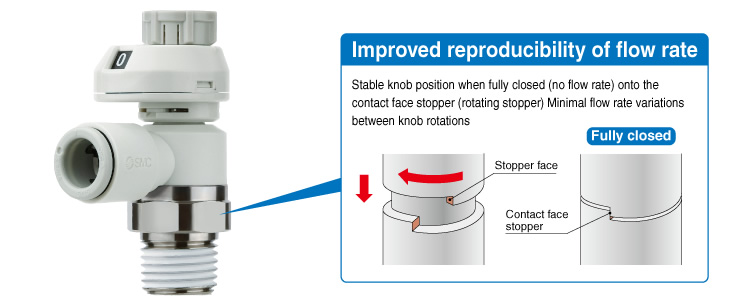

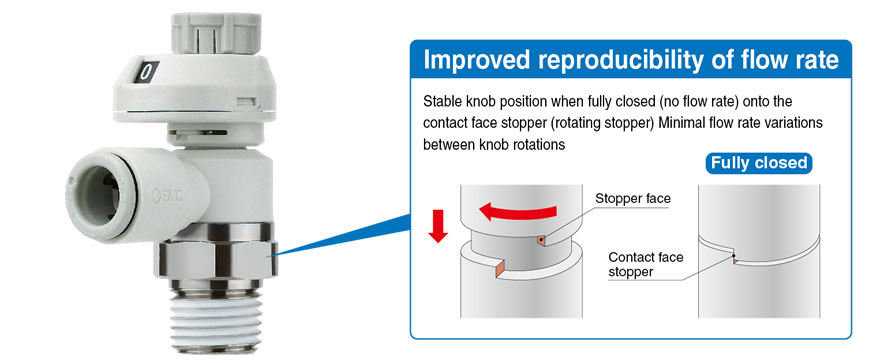

Improved reproducibility of flow rate
Easier to insert and remove the tube

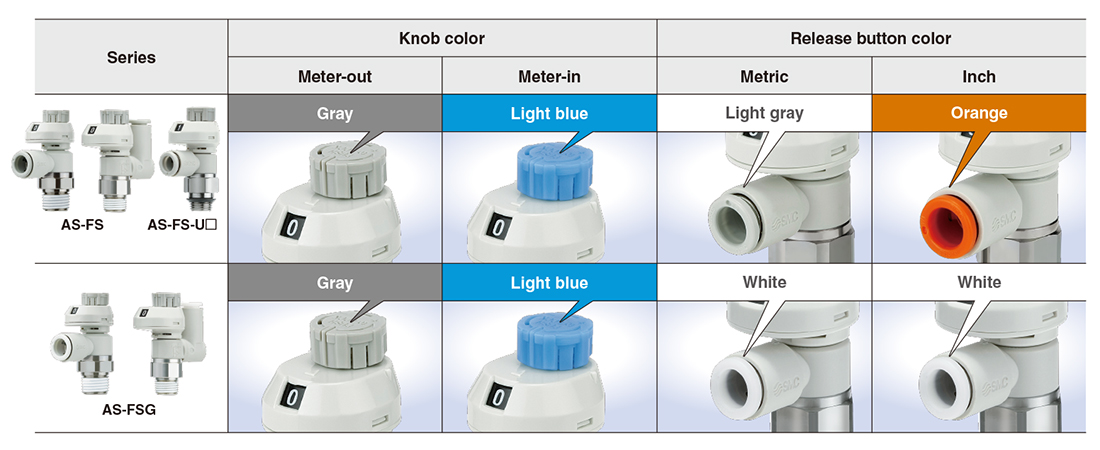

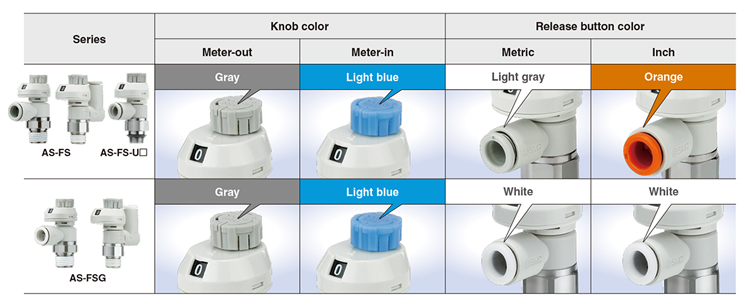

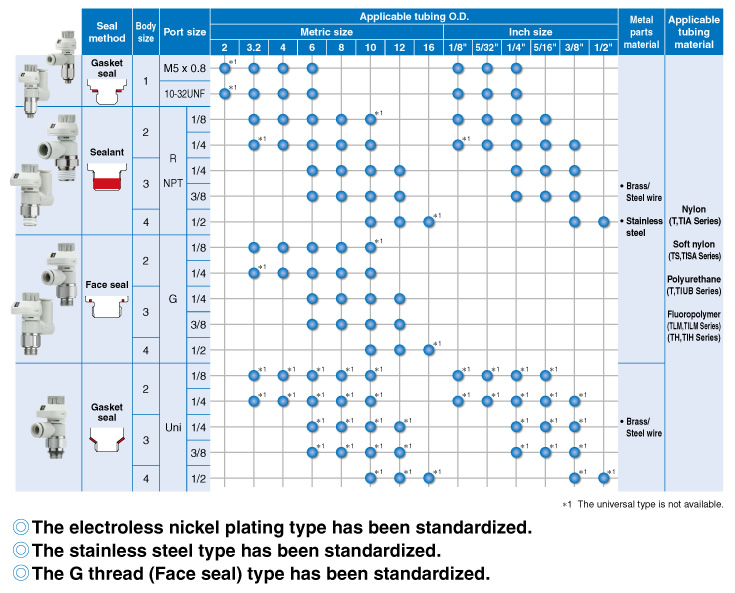

Easy identification of product type
Electroless nickel plating type is standardized.

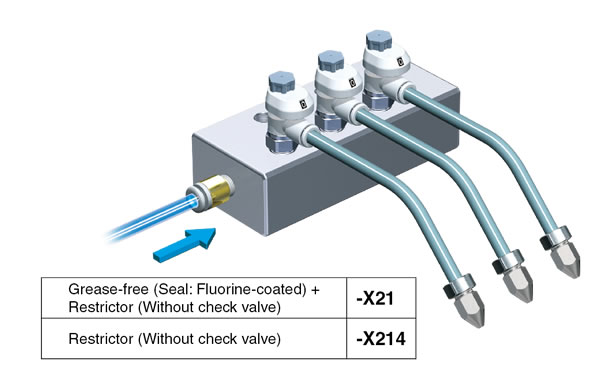

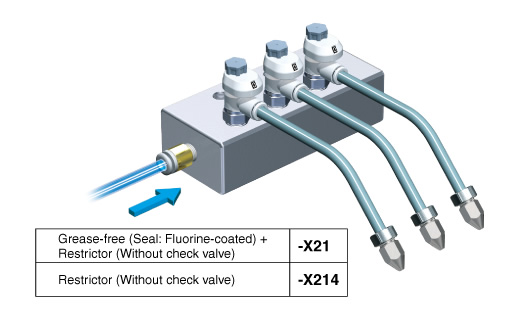

Restrictor (Made to Order)
・Flow control of air blow and air purge
