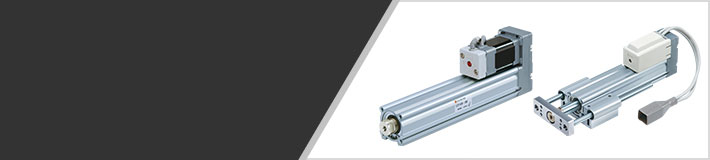

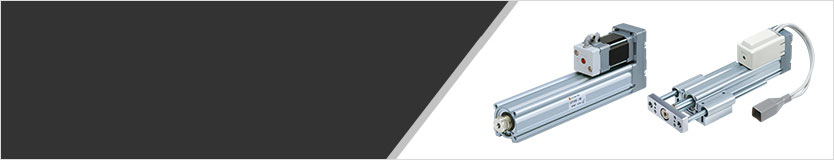

Rod Type/Guide Rod Type

Battery-less Absolute Encoder Type
[Compatible with Manifold Controller]
Electric Actuator/Rod Type LE2Y□H

Electric Actuators/Cylinders » Manifold Controller/Manifold Controller Compatible Electric Actuator
Features
    · Compatible with manifold controller
    · Annual CO2 emissions reduced by up to 38% through motor control
    　optimization (SMC comparison)
    　8.7 kg-CO2e/year (14.1)
    　∗ The numerical values vary depending on the operating conditions.
    · Battery-less absolute encoder type
    　Restart from the last stop position is possible.
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Work load (kg)
Horizontal		Speed
(mm/s)		Screw lead
(mm)
Battery-less absolute
(Step motor 24 VDC)		LE2Y16□H30 to 300Max. 40Max. 7002.5，5，10
Battery-less absolute
(Step motor 24 VDC)		LE2Y25□H30 to 400Max. 70Max. 9003，6，12，20
Battery-less absolute
(Step motor 24 VDC)		LE2Y32□H50 to 500Max. 100Max. 9004，8，16，24

e-Actuator Easy to Operate Integrated Controller/Rod Type EQY□H

Electric Actuators/Cylinders » e-Actuator
Features
    ・Size 16 has been added.
    ・Easy to set up, just like air equipment!
    　Two position stop with no programming required
    　Three position stop with no programming required
    　Cycle time can be set in all control modes.
    ・Downsized with Integrated Controller, Wiring saving,
    　Labor saving · Programless · Reduced adjustment time
    ・Annual CO2 emissions reduced by up to 59% through motor control
    　optimization (SMC comparison)
    　5.8 kg-CO2e/year (14.1) ∗ The numerical values vary depending on the
    　operating conditions.
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions　Green Procurement (RoHS)
SpecificationModelStroke
（mm）		Max. pushing force
（N）		Speed
（mm/s）		Screw lead
（mm）
Battery-less absolute
(Step motor 24 VDC)		EQY16□H30 to 300MAX.141MAX.7002.5, 5, 10
Battery-less absolute
(Step motor 24 VDC)		EQY25□H30 to 400Max. 452Max. 9003, 6, 12, 20
Battery-less absolute
(Step motor 24 VDC)		EQY32□H30 to 500Max. 707Max. 9004, 8, 16, 24

Battery-less Absolute Encoder Type
Electric Actuator/High Performance Rod Type LEY□G

Electric Actuators/Cylinders » Battery-less Absolute Encoder Type
Features
    ・Reduces cycle time
    　Cycle time: Reduced by 33% (0.65 s ← 0.97 s) compared with the existing
    　model∗
    　Acceleration/Deceleration: 10000 mm/s2 (334% increase compared with
    　the existing model)
    　Max. speed: 700 mm/s (Improved by 40% compared with the existing
    　model)
    　∗When LEY25GA-300 is operated from 0 to 300 mm (stroke)
    ・Battery-less absolute encoder compatible
    　Easy operation restart after recovery of the power supply
    　Maintenance labor can be reduced as the product does not require the
    　use of batteries.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
High performance
Battery-less absolute
(Step motor 24 VDC)		LEY16G30 to 300Max. 141Max. 7002.5，5，10
High performance
Battery-less absolute
(Step motor 24 VDC)		LEY25G30 to 400Max. 452Max. 7003，6，12
High performance
Battery-less absolute
(Step motor 24 VDC)		LEY40G30 to 500Max. 1058Max. 8004，8，16

Battery-less Absolute Encoder Type
Electric Actuator/Rod Type LEY

Electric Actuators/Cylinders » Battery-less Absolute Encoder Type
Features
    ・Restart from the last stop position is possible.
    ・Easy operation restart after recovery of the power supply
    　The position information is held by the encoder even when the power supply is turned off.
    　A return to origin operation is not necessary when the power supply is recovered.
    ・No battery is installed. Reduced maintenance
    　No battery is used to store the position information.
    　There is no need to manage spare batteries or replacement maintenance.
    ・Long stroke: Max. 500 mm
    ・Direct mounting: 3 directions, Bracket mounting: 3 types
    ・Auto switch can be mounted.
    ・Either positioning or pushing control can be selected.
    　It is possible to hold the actuator with the rod pushing on a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
Battery-less absolute
(Step motor/24 VDC)		LEY1630 to 300Max. 141Max. 5002.5，5，10
Battery-less absolute
(Step motor/24 VDC)		LEY2530 to 400Max. 452Max. 5003，6，12
Battery-less absolute
(Step motor/24 VDC)		LEY3230 to 500Max. 707Max. 5004，8，16
Battery-less absolute
(Step motor/24 VDC)		LEY4030 to 500Max. 1058Max. 5004，8，16

Electric Actuator/Rod Type, Motor Top/Parallel Type LEY

Electric Actuators/Cylinders » Rod Type/Guide Rod Type
    LEY Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
    ・Long stroke: Max. 500 mm
    ・Direct mounting: 3 directions, Bracket mounting: 3 types
    ・Auto switch can be mounted.
    ・Speed control/Positioning: Max. 64 points
    ・Either positioning or pushing control can be selected.
    　It is possible to hold the actuator with the rod pushing on a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less
    ・Dust-tight/Water-jet-proof (IP65)

    LEY Series AC Servo Motor
    ・High output motor (100/200/400 W)
    ・Improved high speed transfer ability
    ・High acceleration compatible (5000 mm/s2)
    ・Pulse input type
    ・With internal absolute encoder
    ・Positioning repeatability: ±0.02 mm or less
    ・Dust-tight/Water-jet-proof (IP65 equivalent)
    ・Motorless specification is available.　 Click here for details
    ・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
CE/UL-compliance List
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
Step motor
(Servo/24 VDC)		LEY1630 to 300Max. 141Max. 5002.5，5，10
Step motor
(Servo/24 VDC)		LEY2530 to 400Max. 452Max. 5003，6，12
Step motor
(Servo/24 VDC)		LEY3230 to 500Max. 707Max. 5004，8，16
Step motor
(Servo/24 VDC)		LEY4030 to 500Max. 1058Max. 3004，8，16
Servo motor
(24 VDC)		LEY16A30 to 300Max. 111Max. 5002.5，5，10
Servo motor
(24 VDC)		LEY25A30 to 400Max. 130Max. 5003，6，12
AC servo motorLEY25□S30 to 400Max. 485Max. 9003，6，12
AC servo motorLEY32□S30 to 500Max. 588Max. 12005，10，20
AC servo motorLEY63□S100 to 800Max. 3343Max. 10005 (2.86)，5，10，20
AC servo motorLEY100100 to 1000MAX.12000MAX.5002，3.3，10

Electric Actuator/Rod Type, In-line Motor Type LEY□D

Electric Actuators/Cylinders » Rod Type/Guide Rod Type
    LEYG Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
    ・Compact integration of guide rods
    　Achieves lateral load resistance and high non-rotating accuracy
    ・Lateral end load: 5 times more (Compared with a rod type, size 25, 100 stroke)
    ・Compatible with sliding bearings and ball bushing bearings
    　Compatible with moment load and stopper (sliding bearings)
    ・Speed control/Positioning: Max. 64 points
    ・Either positioning or pushing control can be selected.
    　It is possible to hold the actuator with the rod pushing on a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less

    LEYG Series AC Servo Motor
    ・High output motor (100/200 W)
    ・Improved high speed transfer ability
    ・High acceleration/deceleration compatible (5000 mm/s2)
    ・Pulse input type
    ・With internal absolute encoder
    ・Compatible drivers: LECS, LECYm
    ・Motorless specification is available.　 Click here for details
    ・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
CE/UL-compliance List
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
Step motor
(Servo/24 VDC)		LEY16D30 to 300Max. 141Max. 5002.5，5，10
Step motor
(Servo/24 VDC)		LEY25D30 to 300Max. 452Max. 5002.5, 5, 10
Step motor
(Servo/24 VDC)		LEY32D30 to 500Max. 707Max. 5004，8，16
Step motor
(Servo/24 VDC)		LEY40D30 to 500Max. 1058Max. 3004，8，16
Servo motor
(24 VDC)		LEY16D50 to 300Max. 111Max. 5002.5，5，10
Servo motor
(24 VDC)		LEY25D50 to 400Max. 130Max. 5003，6，12
AC servo motorLEY25D30 to 400Max. 485Max. 9003，6，12
AC servo motorLEY32D30 to 500Max. 736Max. 10004，8，16
AC servo motorLEY63D100 to 800Max. 1910Max. 10005，10，20
AC servo motorLEY100D100 to 1000Max. 12000Max. 50010

High Performance Electric Actuator/Rod Type LEY□F

Electric Actuators/Cylinders » Rod Type/Guide Rod Type
Features
    ・A rod type (LEY□F) has been added. [New]
    ・Reduces cycle time
    　LEFS□F: Reduced by 39% (0.57 s ← 0.93 s) compared with the existing
    　model∗1
    　LEY□F: Reduced by 44% (0.54 s ← 0.97 s) compared with the existing
    　model∗2
    　∗1 When LEFS25FH-400 is operated from 0 to 400 mm (stroke)
    　∗2 When LEY25FA-300 is operated from 0 to 300 mm (stroke)
    ・Acceleration/Deceleration: 10000 mm/s2 (334% increase compared with
    　the existing model)
    ・Max. speed
    　LEFS□F: 1500 mm/s (Improved by 25% compared with the existing
    　model)
    　LEY□F: 800 mm/s (Improved by 60% compared with the existing model)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
CE/UL-compliance List
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
High performance
Step motor
(Servo/24 VDC)		LEY16F30 to 300Max.141Max.8002.5，5，10
High performance
Step motor
(Servo/24 VDC)		LEY25F30 to 400Max.452Max.15003，6，12
High performance
Step motor
(Servo/24 VDC)		LEY40F30 to 500Max.1058Max.13004，8，16

Dust-tight/Water-jet-proof (IP65 Equivalent/IP67 Equivalent)
Battery-less Absolute Encoder Type Electric Actuator/Rod Type
LEY-X8

Electric Actuators/Cylinders » Battery-less Absolute Encoder Type
Electric Actuators/Cylinders » Environment
Features
    ・Enclosure: IP65∗ equivalent/IP67 equivalent
    　∗Testing of IP65 has also been carried out.
    ・Battery-less absolute encoder compatible
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Dust-tight/Water-jet-proof (IP65 Equivalent/IP67 Equivalent)
    Battery-less Absolute Encoder Type Electric Actuator/Rod Type
    LEY-X8
    Manual
    Model View search result
    LEY25-X8View search result
    LEY32-X8View search result
    LEY40-X8View search result
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
Battery-less absolute
(Step motor/24 VDC)		LEY25-X830 to 400Max. 452Max. 5003，6，12
Battery-less absolute
(Step motor/24 VDC)		LEY32-X830 to 500Max. 707Max. 5004，8，16
Battery-less absolute
(Step motor/24 VDC)		LEY40-X830 to 500Max. 1058Max. 5004，8，16

Electric Actuator/Rod Type Dust-tight/Water-jet-proof
(IP65 Equivalent/IP67 Equivalent) LEY-X7

Electric Actuators/Cylinders » Environment
Electric Actuators/Cylinders » Rod Type/Guide Rod Type
Features
    ・Enclosure: IP65 equivalent/IP67 equivalent
    ・Max. stroke: 500 mm*
    * For sizes 32 and 40
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force
（N）		Speed
（mm/s）		Screw lead
（mm）
Step motor
(Servo/24 VDC)		LEY25-X730 to 400Max. 452Max. 3003, 6, 12
Step motor
(Servo/24 VDC)		LEY32-X730 to 500Max. 707Max. 3004, 8, 16
Step motor
(Servo/24 VDC)		LEY40-X730 to 500Max. 1058Max. 3004, 8, 16
Servo motor
(24 VDC)		LEY25A-X730 to 400Max. 130Max. 3003, 6, 12

Battery-less Absolute Encoder Type
Electric Actuator/Guide Rod Type LEYG

Electric Actuators/Cylinders » Battery-less Absolute Encoder Type
Features
    ・Restart from the last stop position is possible.
    ・Easy operation restart after recovery of the power supply
    　The position information is held by the encoder even when the power supply is turned off. A return to origin operation is not necessary when the power supply is recovered.
    ・No battery is installed. Reduced maintenance
    　No battery is used to store the position information.
    　There is no need to manage spare batteries or replacement maintenance.
    ・Compact integration of guide rods
    　Achieves lateral load resistance and high non-rotating accuracy
    ・Lateral end load: 5 times more (Compared with a rod type, size 25, 100 stroke)
    ・Compatible with sliding bearings and ball bushing bearings
    　Compatible with moment load and stopper (sliding bearings)
    ・Either positioning or pushing control can be selected.
    　It is possible to hold the actuator with the rod pushing on a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Electric Actuators/Precautions　Features
Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force [N]Speed
(mm/s)		Screw lead (mm)
Battery-less absolute
(Step motor/24 VDC)		LEYG1630 to 200Max. 141Max. 5002.5，5，10
Battery-less absolute
(Step motor/24 VDC)		LEYG2530 to 300Max. 452Max. 5003，6，12
Battery-less absolute
(Step motor/24 VDC)		LEYG3230 to 300Max. 707Max. 5004，8，16
Battery-less absolute
(Step motor/24 VDC)		LEYG4030 to 300Max. 1058Max. 5004，8，16

Battery-less Absolute Encoder Type
Electric Actuator/High Performance High Rigidity Guide Rod Type LEG

electric-actuators-cylinders » battery-less-absolute-encoder-type
Features
    ・Max. weight of transferred object: 75 kg (Size 25), 100 kg (Size 32), 150 kg (Size 40)
    ・High performance step motor controller
    　(Max. acceleration/deceleration: 5000 mm/s2)
    ・With internal battery-less absolute encoder
    ・Auto switches are mountable. (In-line only)
    　For checking the limit and the intermediate signal
    ・Fully integrated the compact guide unit for improved lateral load capacity
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Pushing force [N]Speed
(mm/s)		Screw lead (mm)
Battery-less absolute
(Step motor/24 VDC)		LEG2530 to 100Max. 238Max. 2506，8
Battery-less absolute
(Step motor/24 VDC)		LEG3230 to 100Max. 370Max. 2006，8
Battery-less absolute
(Step motor/24 VDC)		LEG4030 to 100Max. 553Max. 1506，8

Electric Actuator/Guide Rod Type, Motor Top Mounting Type LEYG

Electric Actuators/Cylinders » Rod Type/Guide Rod Type
    LEYG Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
    ・Compact integration of guide rods
    　Achieves lateral load resistance and high non-rotating accuracy
    ・Lateral end load: 5 times more (Compared with a rod type, size 25, 100 stroke)
    ・Compatible with sliding bearings and ball bushing bearings
    　Compatible with moment load and stopper (sliding bearings)
    ・Speed control/Positioning: Max. 64 points
    ・Either positioning or pushing control can be selected.
    　It is possible to hold the actuator with the rod pushing on a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less

    LEYG Series AC Servo Motor
    ・High output motor (100/200 W)
    ・Improved high speed transfer ability
    ・High acceleration/deceleration compatible (5000 mm/s2)
    ・Pulse input type
    ・With internal absolute encoder
    ・Motorless specification is available.　 Click here for details
    ・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions　Electric Actuators/Precautions　Features　Series Variations
Simplified Selection Flow Chart　Green Procurement (RoHS)　CE/UL-compliance List
SpecificationModelStroke
(mm)		Pushing force [N]Speed
(mm/s)		Screw lead (mm)
Step motor
(Servo/24 VDC)		LEYG1630 to 200Max. 141Max. 5002.5，5，10
Step motor
(Servo/24 VDC)		LEYG2530 to 300Max. 452Max. 5003，6，12
Step motor
(Servo/24 VDC)		LEYG3230 to 300Max. 707Max. 5004，8，16
Step motor
(Servo/24 VDC)		LEYG4030 to 300Max. 1058Max. 3004，8，16
Servo motor
(24 VDC)		LEYG16A30 to 200Max. 111Max. 5002.5，5，10
Servo motor
(24 VDC)		LEYG25A30 to 300Max. 130Max. 5003，6，12
AC servo motorLEYG25□S30 to 300Max. 485Max. 9003，6，12
AC servo motorLEYG32□S30 to 300Max. 588Max. 12005，10，20

Electric Actuator/Guide Rod Type, In-line Motor Type LEYG□D

Electric Actuators/Cylinders » Rod Type/Guide Rod Type
    Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC)
    ・Compact integration of guide rods
    　Achieves lateral load resistance and high non-rotating accuracy.
    ・Lateral end load: 5 times more (compared with rod type, size 25 and 100 stroke)
    ・Compatible with sliding bearing and ball bushing bearing.
    　Compatible with moment load and stopper (sliding bearing).
    ・Speed control/Positioning: Max. 64 points
    ・Positioning and pushing control can be selected.
    　Possible to hold the actuator when pushing the rod to a workpiece, etc.
    ・Positioning repeatability: ±0.02 mm or less

    Series LEY AC Servo Motor
    ・High output motor (100/200 W)
    ・Improved high speed transfer ability
    ・High acceleration/deceleration compatible （5,000mm/s2）
    ・Pulse input type
    ・With internal absolute encoder
    ・Motorless specification is available.　 Click here for details
    ・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions　Electric Actuators/Precautions　Features　Series Variations
Simplified Selection Flow Chart　Green Procurement (RoHS)　CE/UL-compliance List
Spec.ModelStroke
(mm)		Pushing force [N]Speed
(mm/s)		Screw lead
(mm)
Step motor
(Servo/24 VDC)		LEYG16D30 to 200Max. 141Max. 5002.5，5，10
Step motor
(Servo/24 VDC)		LEYG25D30 to 200Max. 452Max. 5003，6，12
Step motor
(Servo/24 VDC)		LEYG32D30 to 200Max. 707Max. 5004，8，16
Step motor
(Servo/24 VDC)		LEYG40D30 to 200Max. 1058Max. 3004，8，16
Servo motor
(24 VDC)		LEYG16DA30 to 200Max. 111Max. 5002.5，5，10
Servo motor
(24 VDC)		LEYG25DA30 to 300Max. 130Max. 5003，6，12
AC servo motorLEYG25DS30 to 300Max. 485Max. 9003，6，12
AC servo motorLEYG32DS30 to 300Max. 736Max. 10004，8，16

Go Top
