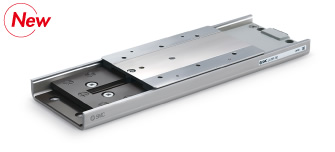

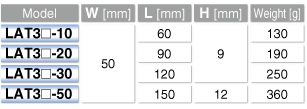

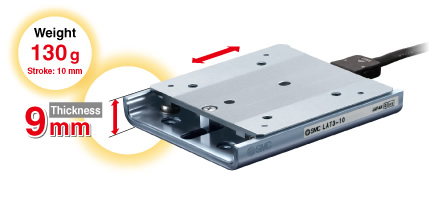

・The transportation, pushing and length measurement systems have been miniaturized through the use of a linear motor.
Pushing a miniature load
± 5 μm
Positioning a workpiece
accuracy: ± 10 μm
frequency: 500 cpm
Rejection of non-conforming products, etc.
・0.5 kg → 1 kg

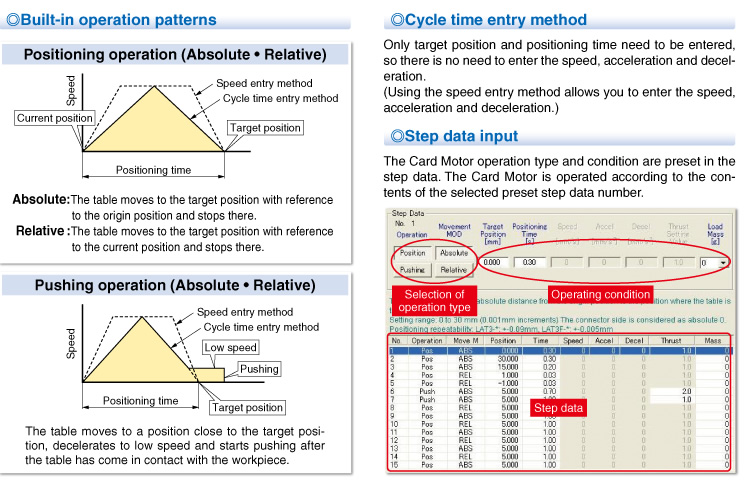

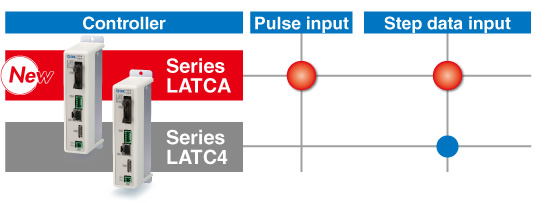

Just input 3 parameters:
Positioning time, Target
position, Load mass.
|How to Mount

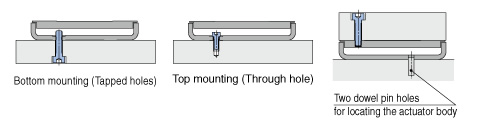

2 body mounting options

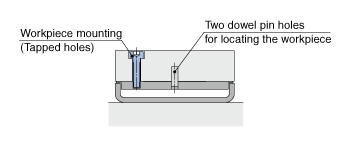

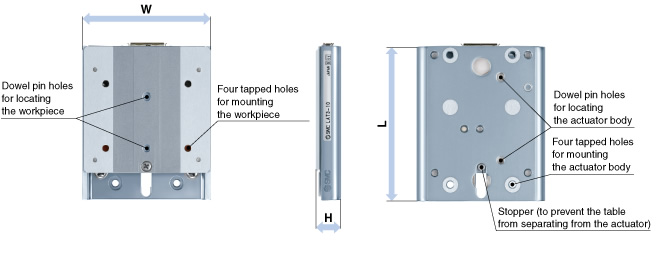

The table is provided with dowel pin holes for locating the workpiece as standard equipment.

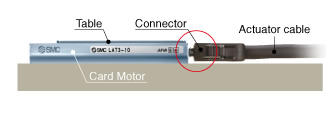

The cable connector does not protrude above the actuator.

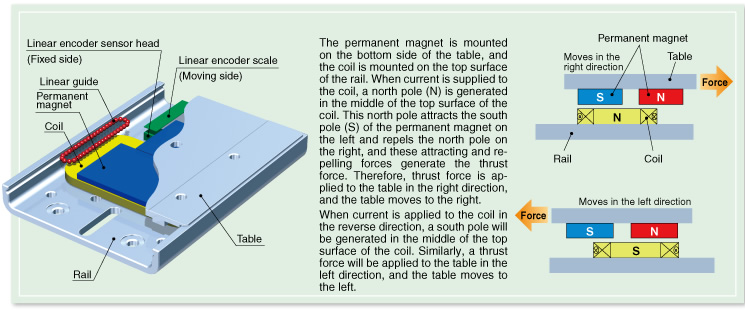

|Structure and Working Principle

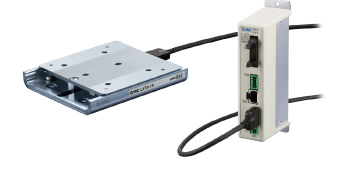

|Start-up time is reduced greatly with a system that is ready-to-use and easy to set up.
The functions described below makes the start-up quick and easy.

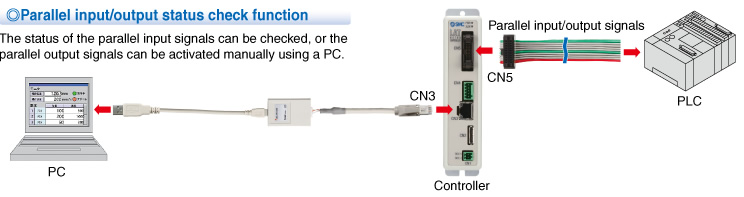

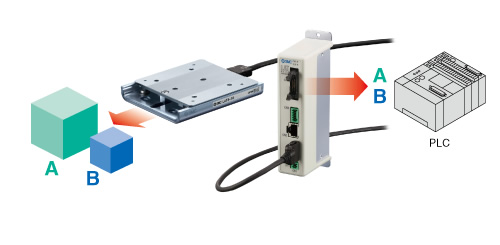

Function for measuring and differentiation of workpieces
The size of the workpiece can be measured based on the table stopping position by driving the table until it comes into contact with the workpiece. The workpieces can be differentiated or checked for quality using parallel output signals that correspond to preset table position ranges. Furthermore, using the multi-counter makes it possible to display the table position and output up to 31 preset points.
Examples of positioning applications
Sensor head movement and positioning
Component movement and positioning
Electronic component pick and place
Component supply to tape
Component separation (escapement)
Examples of measurement applications
Measurement of workpiece height
Measurement of glass substrate thickness (multiple points)
Measurement of cable outside diameter
Measurement of tape thickness
Examples of high frequency actuation
Alignment of components on pallet by vibration
Distribution of workpieces
Examples of pushing applications
Pushing of workpieces (soft touch)
Positioning of workpieces
Cutting of resin mold component runners
