2/3 Port Solenoid Valves/Air Operated Valves

Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□

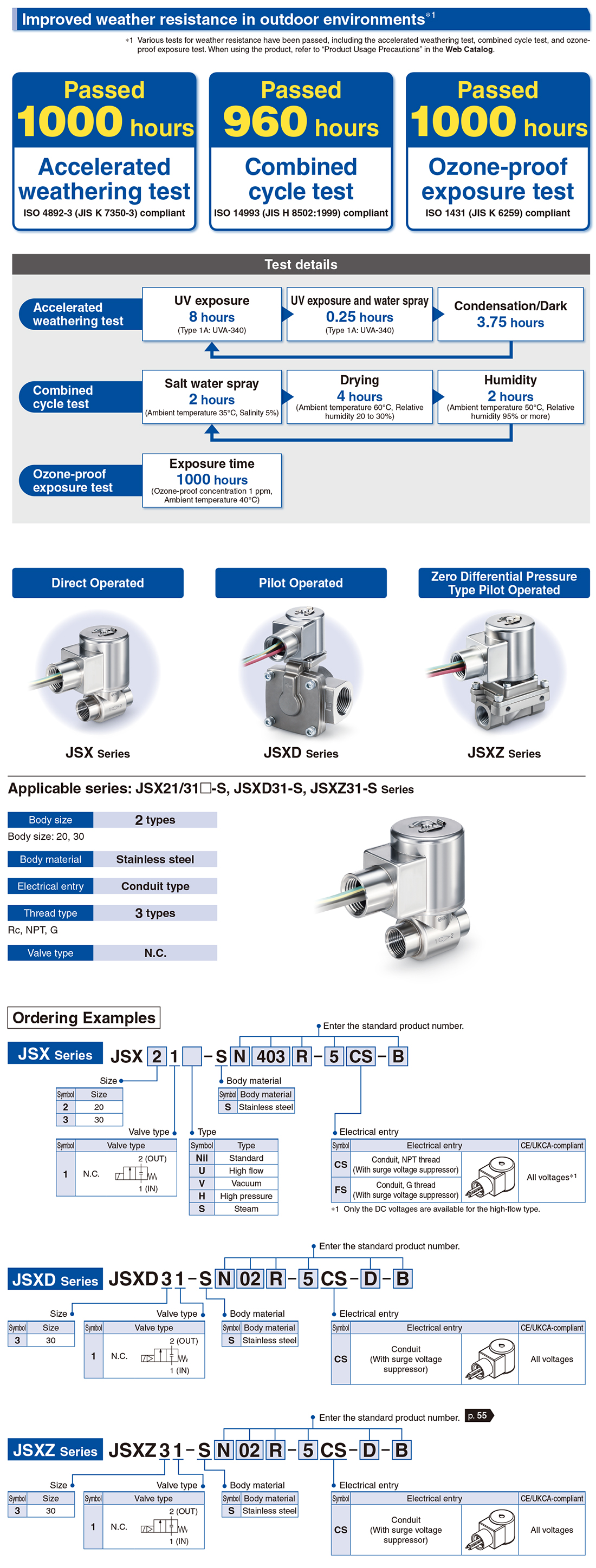

    ・Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure]
    ・Body material: Stainless steel, Brass/Bronze, Aluminum
    ・Environmental resistance: IP67 enclosure (IP65 for models with a DIN terminal)
    ・Space saving
     Compact: Valve volume reduced by 25% (Compared with the existing model),
     Lightweight: Weight reduced by 30% (Compared with the existing model)
    ・Energy saving
     Coil force: 10% increase (Compared with the existing model),
     Power consumption: 14% reduction (Compared with the existing model)
    ・360º lead wire insertion and removal is possible.

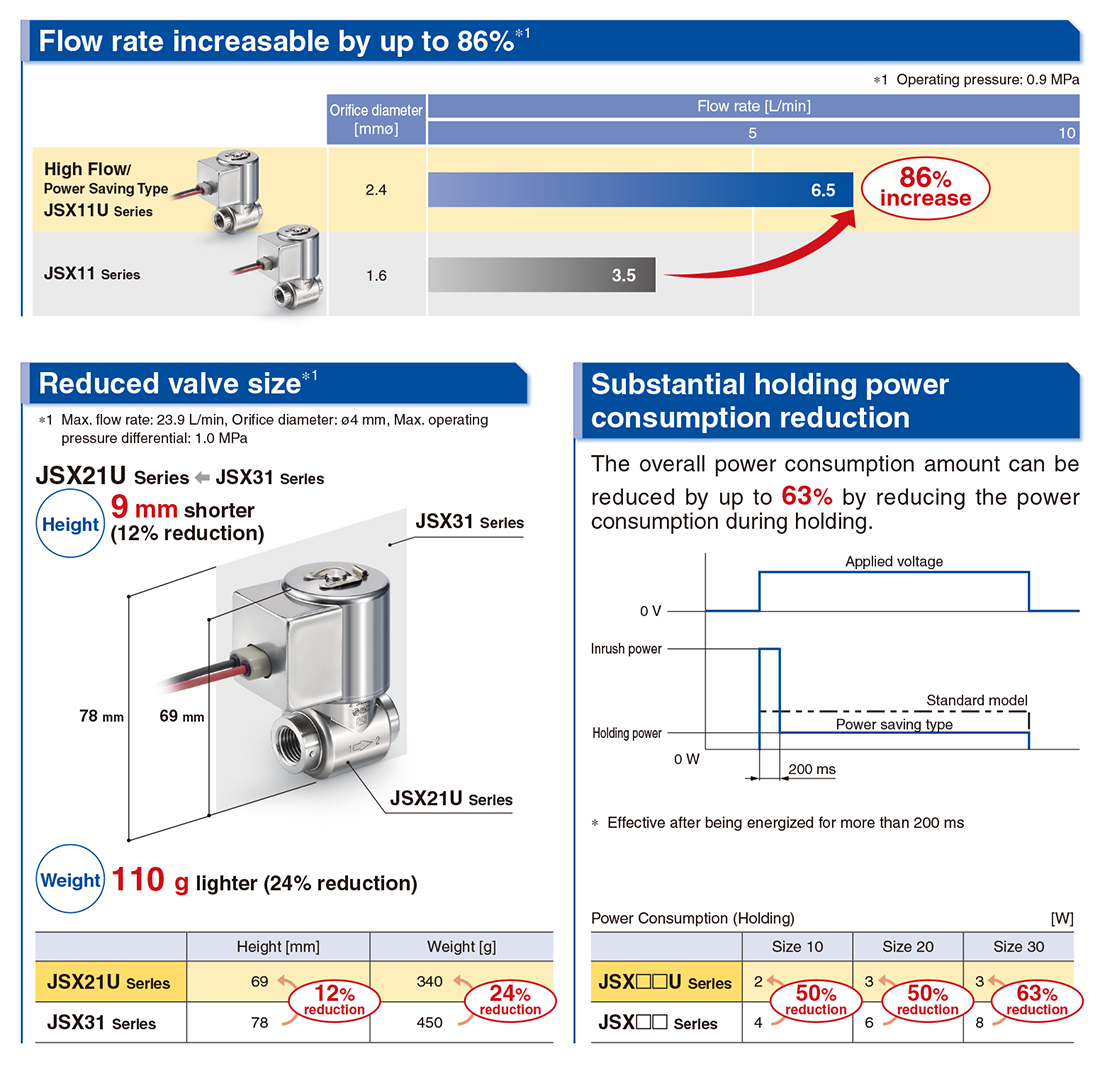

    ・Flow rate increasable by up to 86% (High flow/ Power saving type)

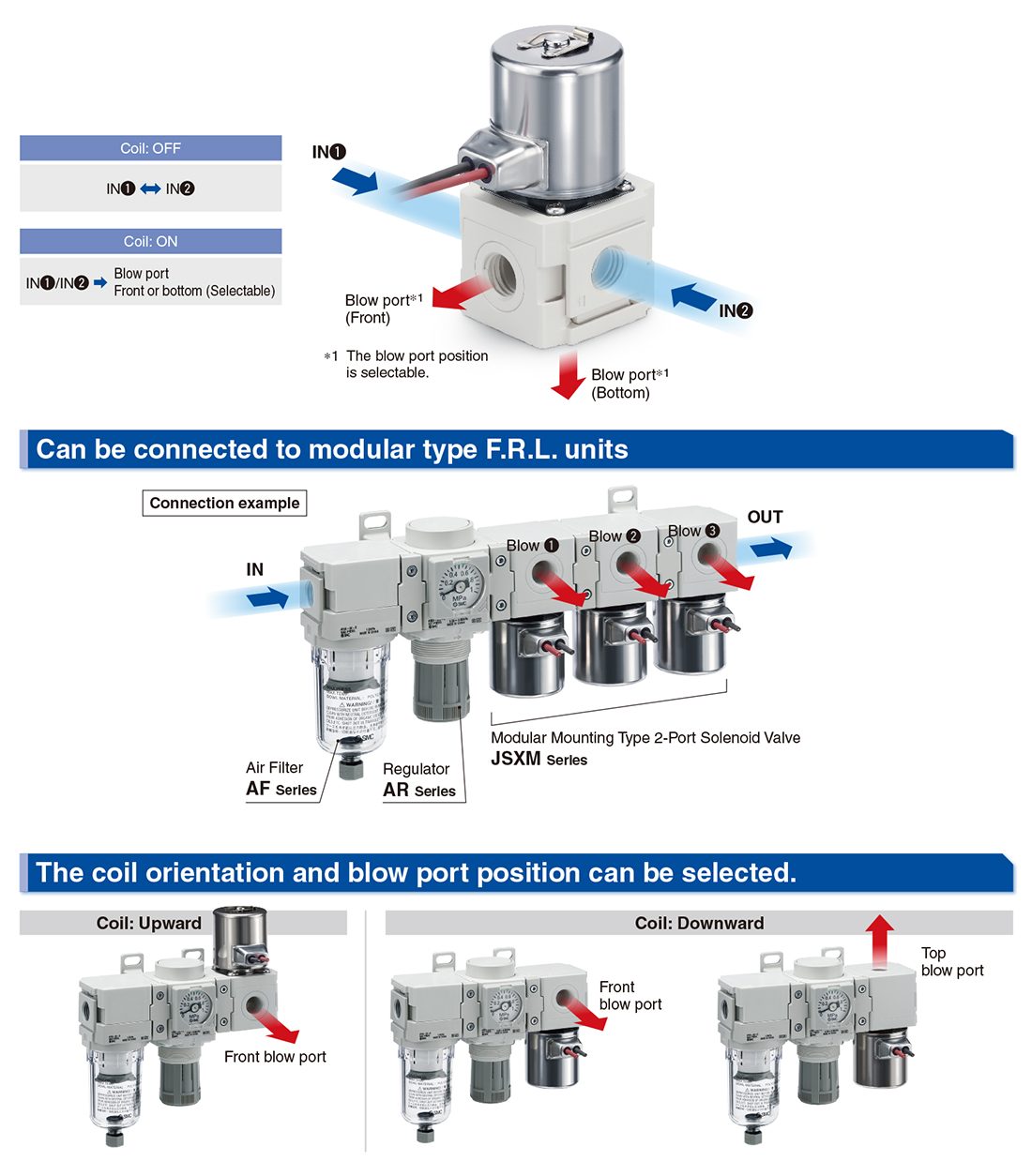

    ・Can be connected to modular type F.R.L. units (JSXM)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□
    Manual
    Series Type View search result
    JSXDirect operatedView search result
    JSX□□UDirect operated high flow/ power saving typeView search result
    JSXDPilot operatedView search result
    JSXZZero differential pressure type pilot operated
    JSXMModular mounting type
  • Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□
    DoC
    Series Type View search result
    JSXDirect operatedView search result
    JSX□□UDirect operated high flow/ power saving typeView search result
    JSXDPilot operatedView search result
    JSXZZero differential pressure type pilot operatedView search result
    JSXMModular mounting typeView search result

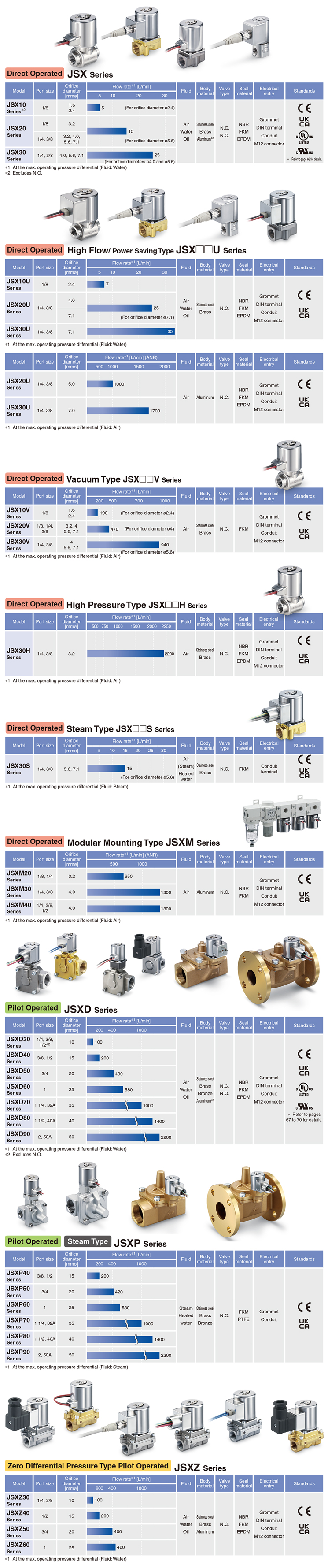

SeriesTypeValve typePort sizeOrifice diameter (mmø)
JSXDirect operatedN.C.1/8, 1/4, 3/81.6 to 7.1
JSX□□UDirect operated high flow/ power saving typeN.C.1/8, 1/4, 3/82.4 to 7.1
JSXDPilot operatedN.C.1/4,3/8,1/2,3/8,1/2,3/4,1,1 1/4,32A,1 1/2,40A,2,50A10 to 50
JSXZZero differential pressure type pilot operatedN.C.1/4,3/8,1/2,3/8,1/2,3/4,110 to 25
JSXMModular mounting typeN.C.1/8,1/4,3/8,1/23.2,4

Features

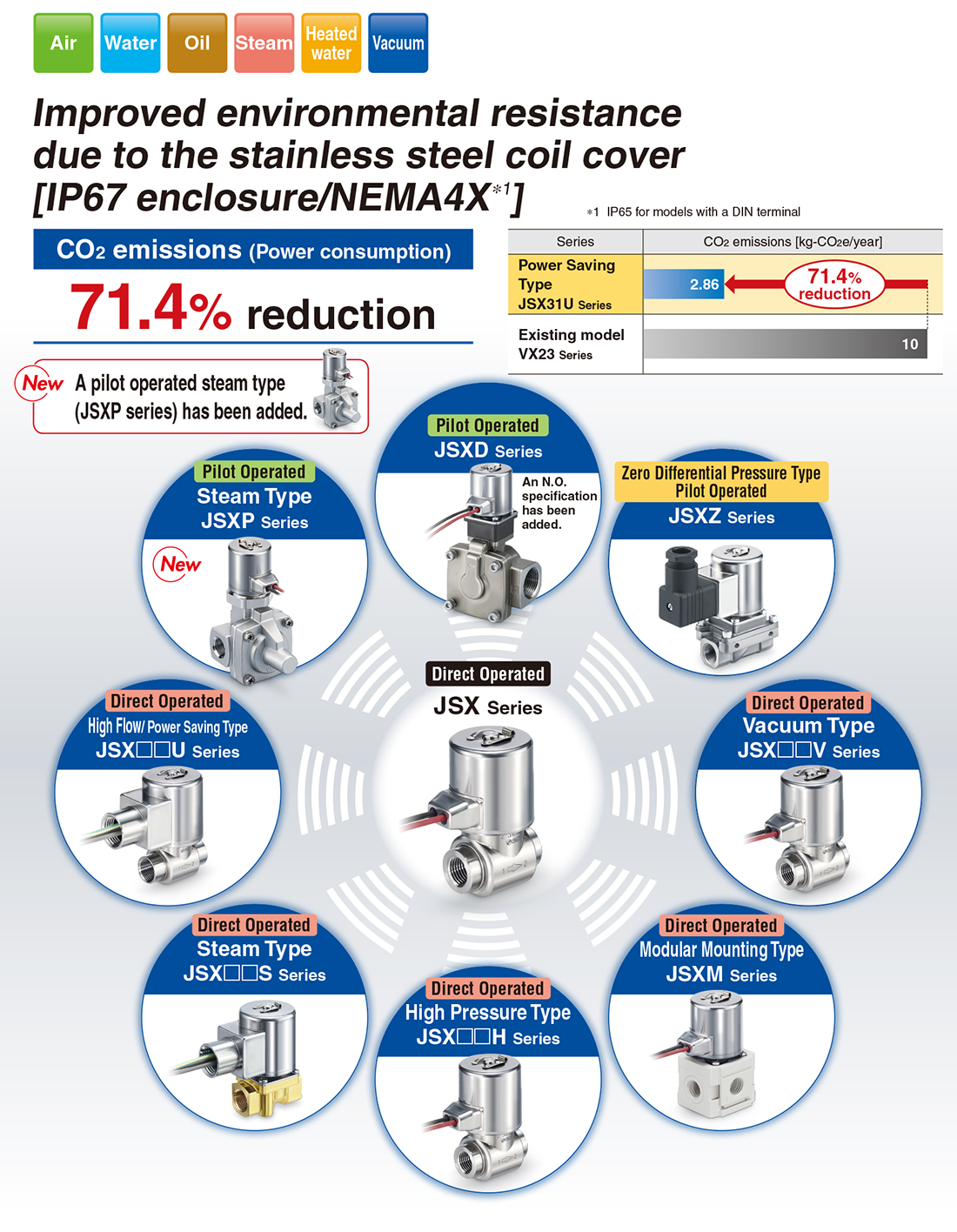

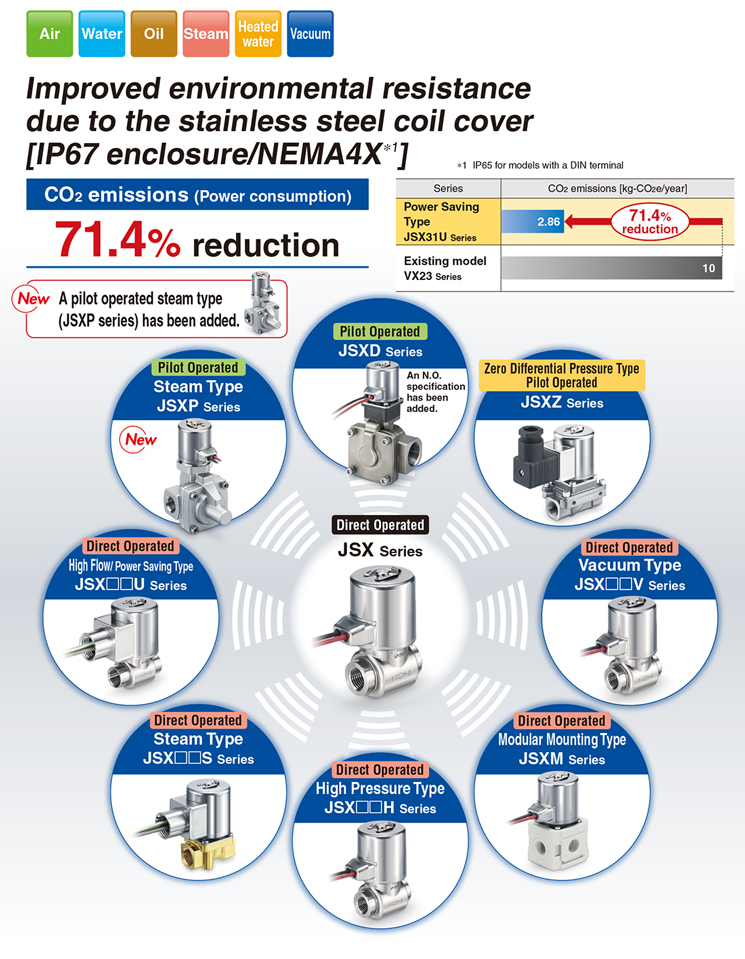

Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure]

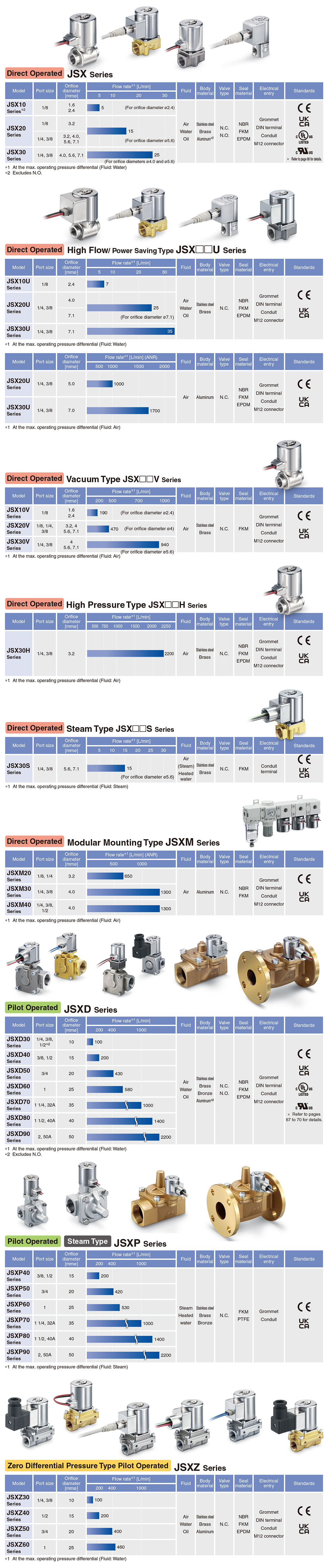

Series Variations

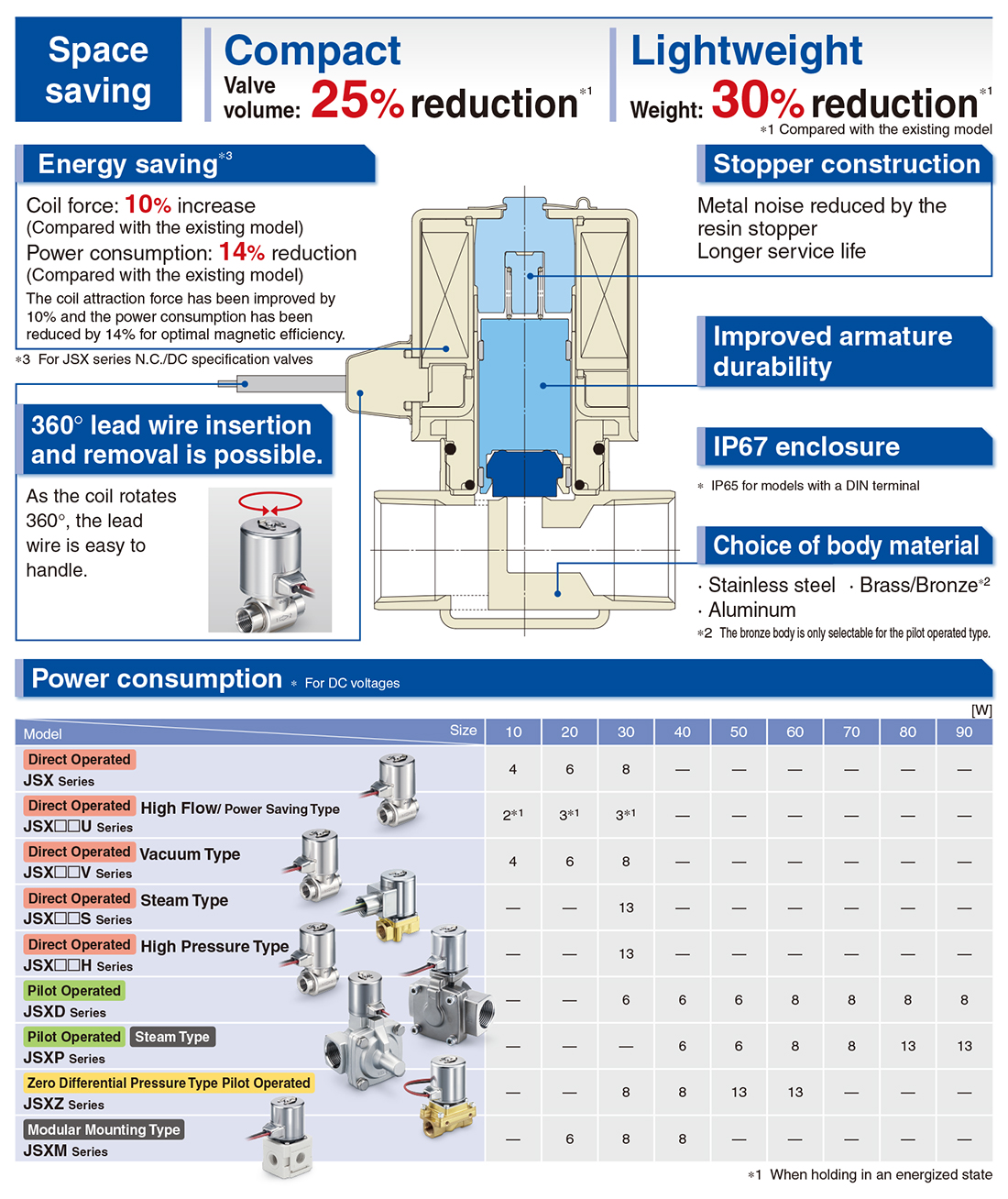

Space saving
Compact: Valve volume reduced by 25% (Compared with the existing model),
Lightweight: Weight reduced by 30% (Compared with the existing model)

Full-wave rectifier type (AC specification: Insulation type Class B)

  • ・Improved durability

     Extended service life due to the special construction
    (Compared with the existing shading coil)


    ・Reduced buzzing noise

     Due to being rectified to DC by the full-wave rectifier


    ・Due to being rectified to DC by the full-wave rectifier
     * Class B, N.C. valve (Compared with the existing model)

     9.5VA → 8VA (JSX20/JSXD60, 70 Series)
     12VA → 9.5VA(JSX30/JSXD80, 90 Series)

  • ・Improved OFF response

     Specially constructed to improve the OFF response when operated with high viscosity fluids such as oil


    ・Low-noise construction

     Specially constructed to reduce metal noise during operation


Full-wave rectifier type (AC specification: Insulation type Class B)

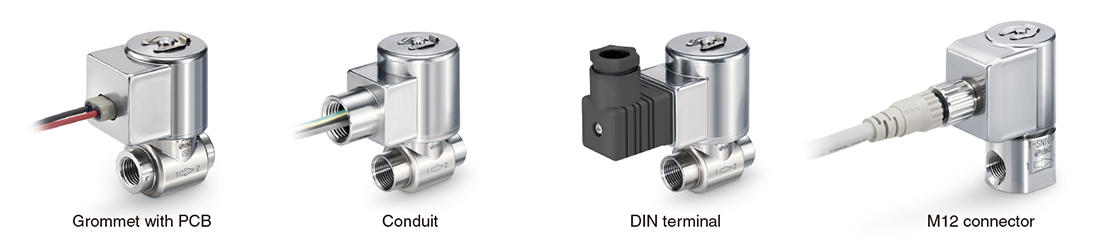

Electrical entry

Modular Mounting Type 2-Port Solenoid Valve JSXM Series

      Click here for details
