Pressure Switches

3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□

    ・Visualization of settings
    ・Simple 3-step setting
    ・Easy screen switching
     It is possible to change the settings while checking the measured value.
    ・Delay time:1.5 ms or less
    ・Current consumption: 25 mA or less
    ・IO-Link compatible
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Screen Display High-Precision Digital Pressure Switch
    ZSE20□(F)/ISE20□
    Manual
    Series Type View search result
    ZSE20(F)
    ISE20
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20A(F)
    ISE20A
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20AF-X576 to 580
    (Made to Order)
    Compound pressureView search result
    ZSE20B(F)-(L)
    ISE20B-(L)
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20C(F)-(L)
    ISE20C(H)-(L)
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
  • 3-Screen Display High-Precision Digital Pressure Switch
    ZSE20□(F)/ISE20□
    DoC
    Series Type View search result
    ZSE20(F)
    ISE20
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20A(F)
    ISE20A
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20AF-X576 to 580
    (Made to Order)
    Compound pressureView search result
    ZSE20B(F)-(L)
    ISE20B-(L)
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
    ZSE20C(F)-(L)
    ISE20C(H)-(L)
    Compound pressure
    Vacuum pressure
    Positive pressure
    View search result
SeriesOutput typeTypeRated pressure rangeEnclosureApplicable fluid
ZSE20(F)
ISE20
1 outputCompound pressure
Vacuum pressure
Positive pressure
−100.0 to 100.0 kPa
0.0 to −101.0 kPa
−0.100 to 1.000 MPa
IP40Air
ZSE20A(F)
ISE20A
2 outputs
Analog output
(Voltage/Current)
Compound pressure
Vacuum pressure
Positive pressure
−100.0 to 100.0 kPa
0.0 to −101.0 kPa
−0.100 to 1.000 MPa
IP40Air
ZSE20AF-X576 to 580
(Made to Order)
2 outputs
Analog output
(Voltage/Current)
Compound pressure−500 to 500Pa
−1.000 to 1.000kPa
−2.00 to 2.00kPa
−5.00 to 5.00kPa
−10.00 to 10.00kPa
IP40Air
ZSE20B(F)-(L)
ISE20B-(L)
2 outputs
Analog output
(Voltage/Current)
IO-Link/Switch: 1 output
Compound pressure
Vacuum pressure
Positive pressure
−100.0 to 100.0 kPa
0.0 to −101.0 kPa
−0.100 to 1.000 MPa
IP65Air
ZSE20C(F)-(L)
ISE20C(H)-(L)
2 outputs
Analog output
(Voltage/Current)
IO-Link/Switch: 1 output
Compound pressure
Vacuum pressure
Positive pressure
−100.0 to 100.0 kPa
0.0 to −101.0 kPa
−0.100 to 1.000 MPa
−0.100 to 2.000 MPa
IP65General fluids

Features

Visualization of Settings

The sub screen (label) shows the item to be set.

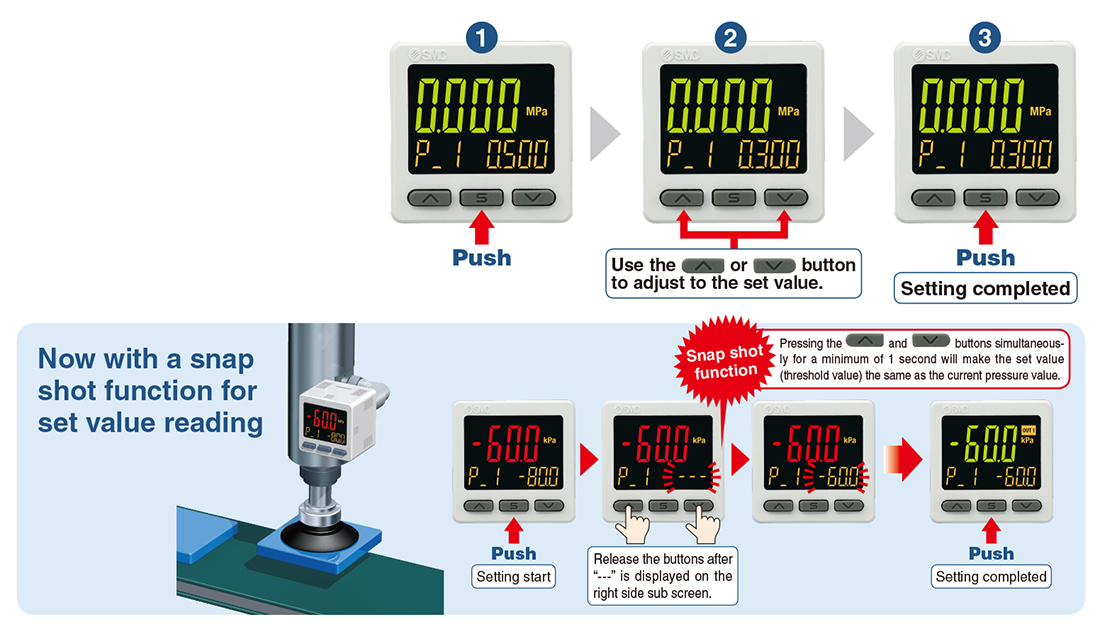

Simple 3-Step Setting

When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

Easy Screen Switching

It is possible to change the settings while checking the measured value.

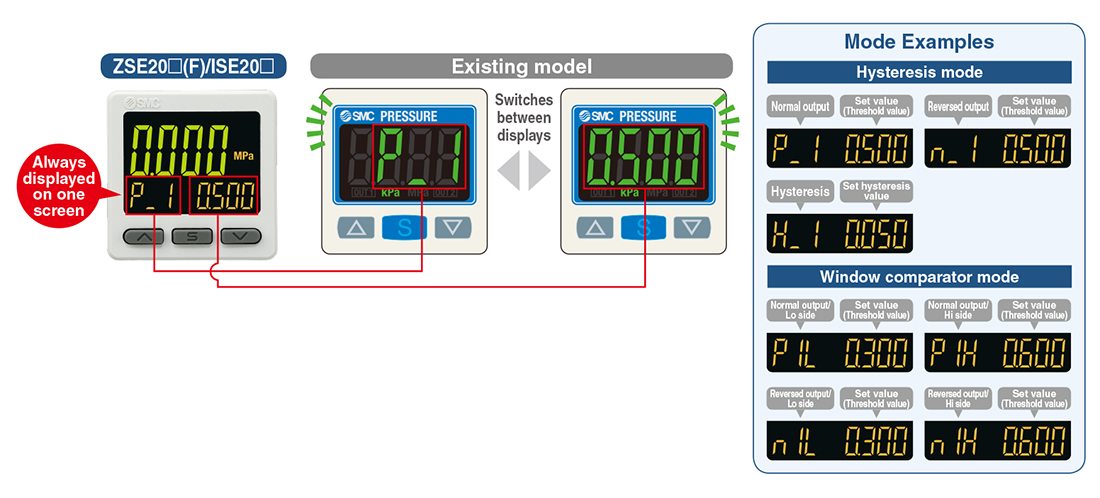

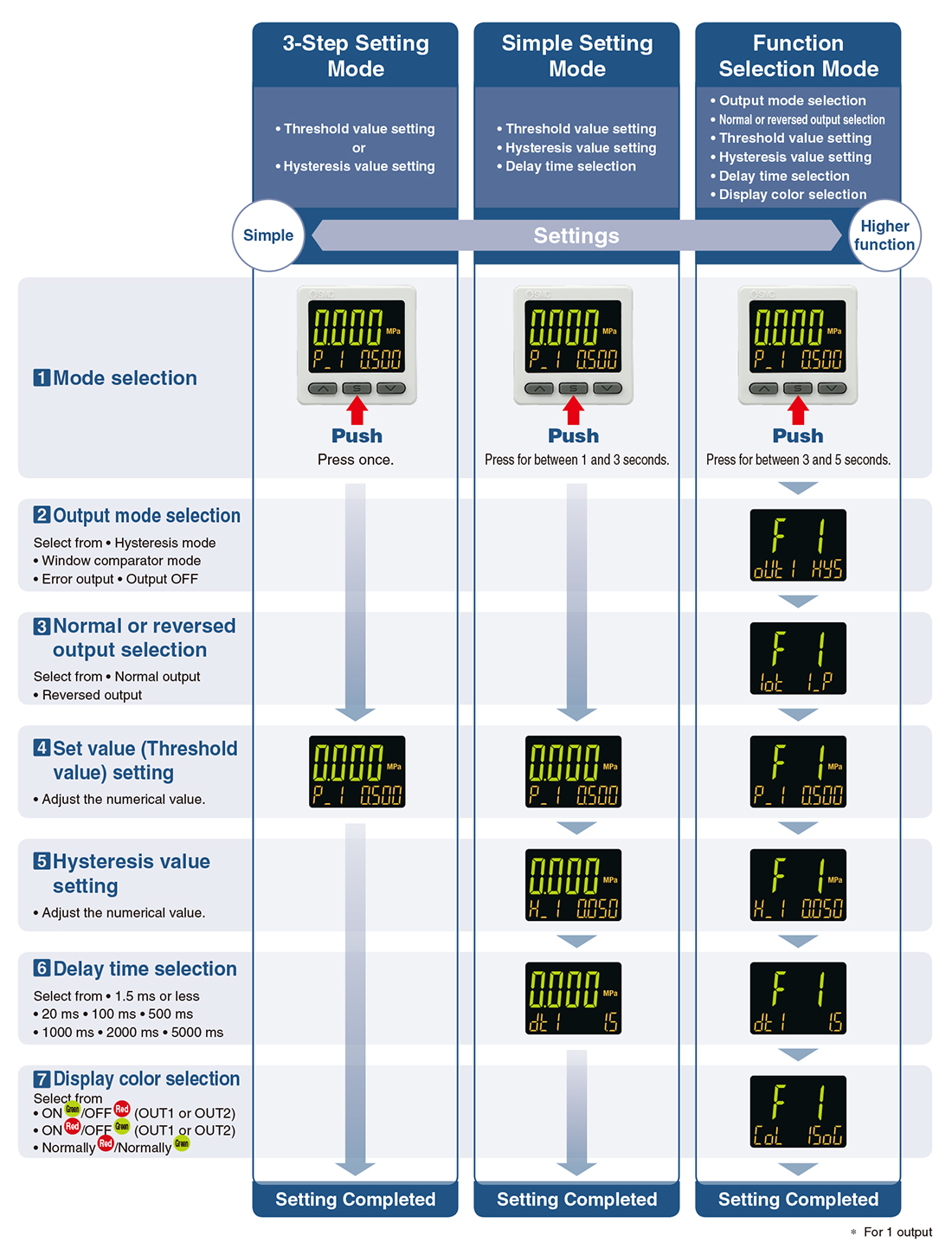

3 Setting Modes

Select the setting mode that best meets your needs.

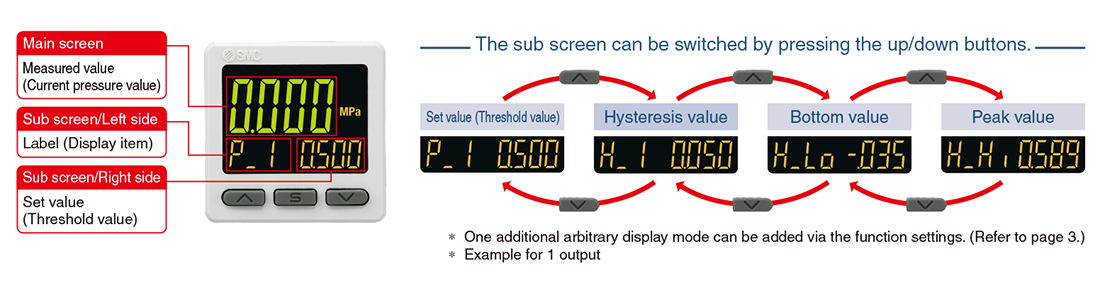

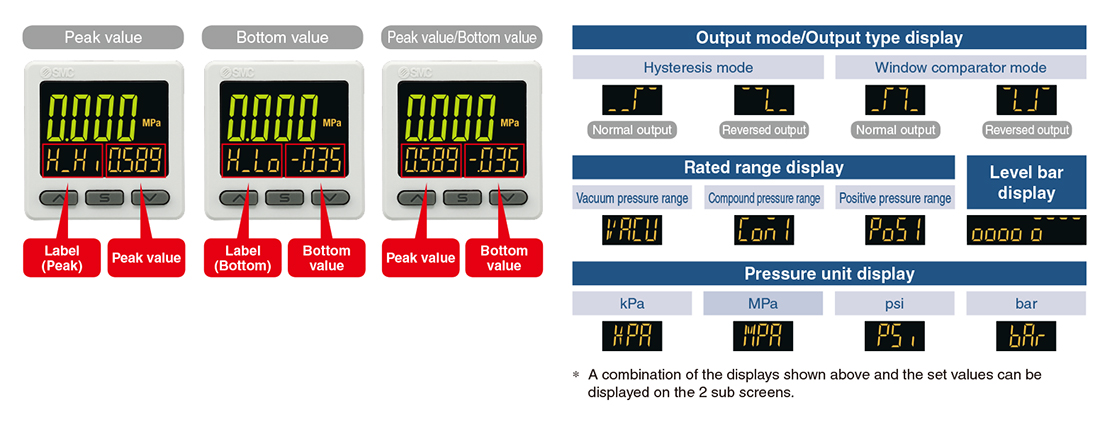

Other Sub Screen Display

The peak value or bottom value, or both values can be displayed on one screen!

* Peak and bottom values are maintained even if the power supply is cut.

Delay Time: 1.5 ms*1 or less

∗1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.

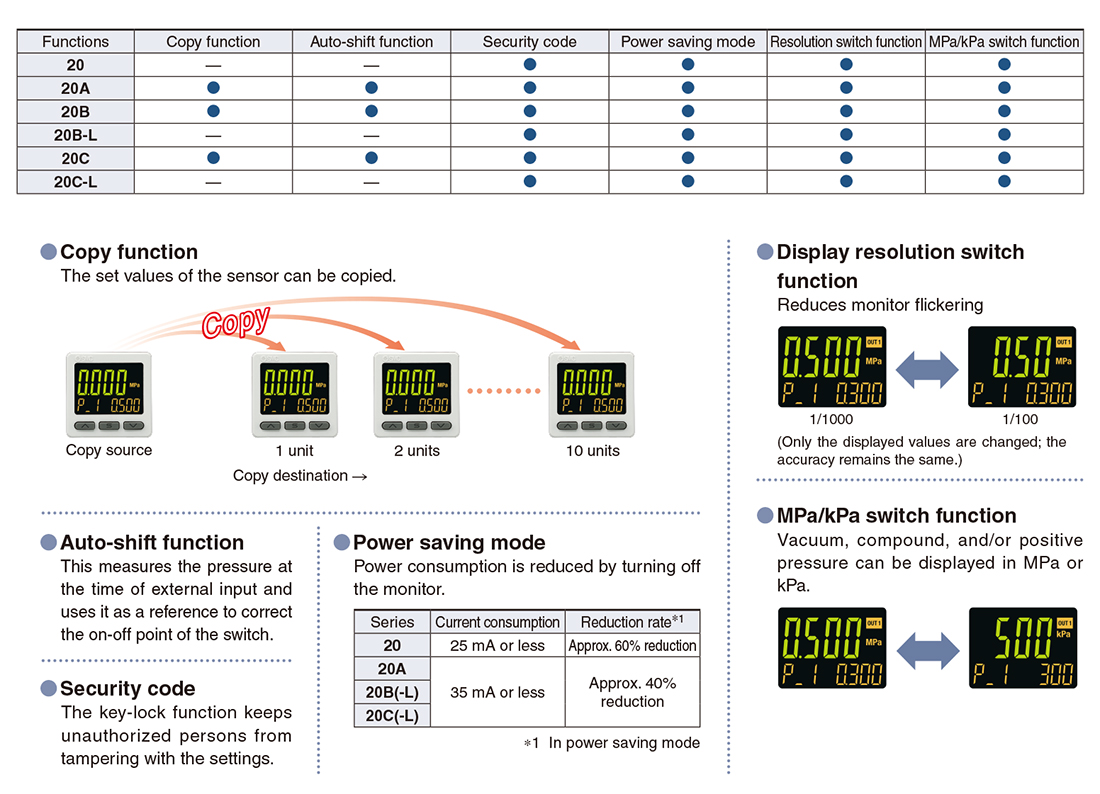

Convenient Functions

Compact & Lightweight

Improved Installability

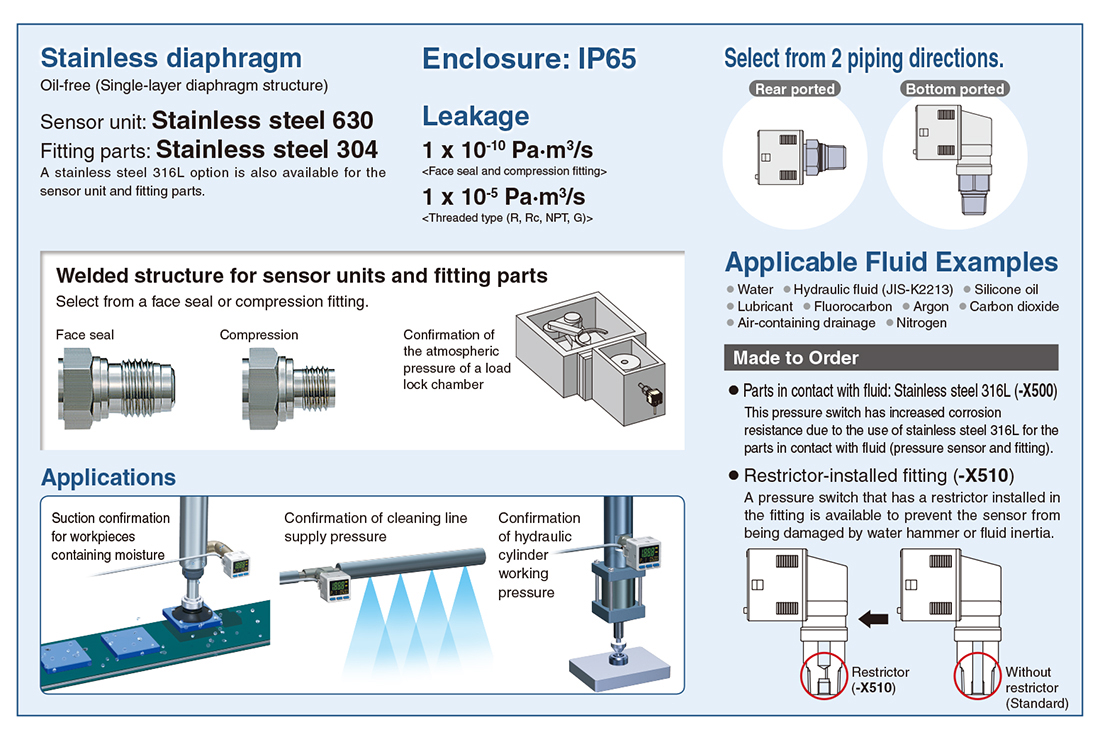

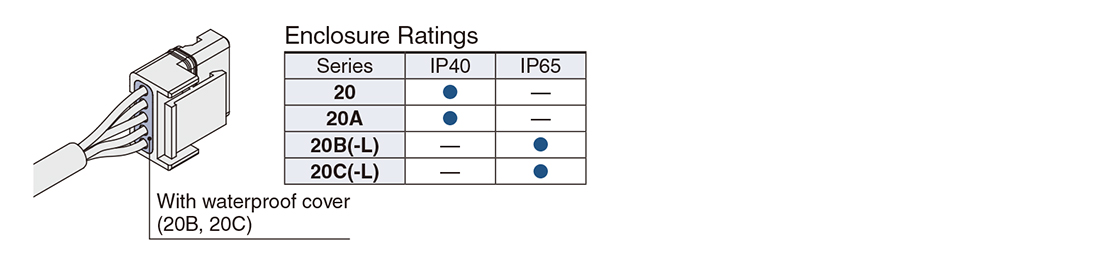

Enclosure

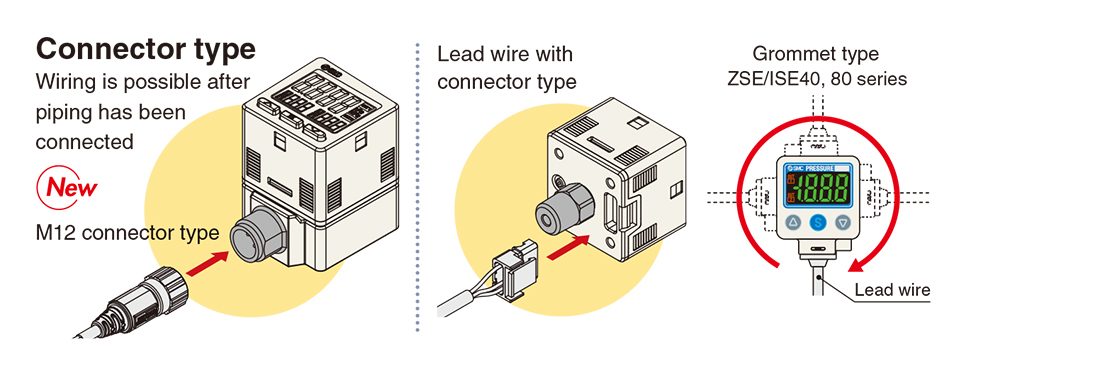

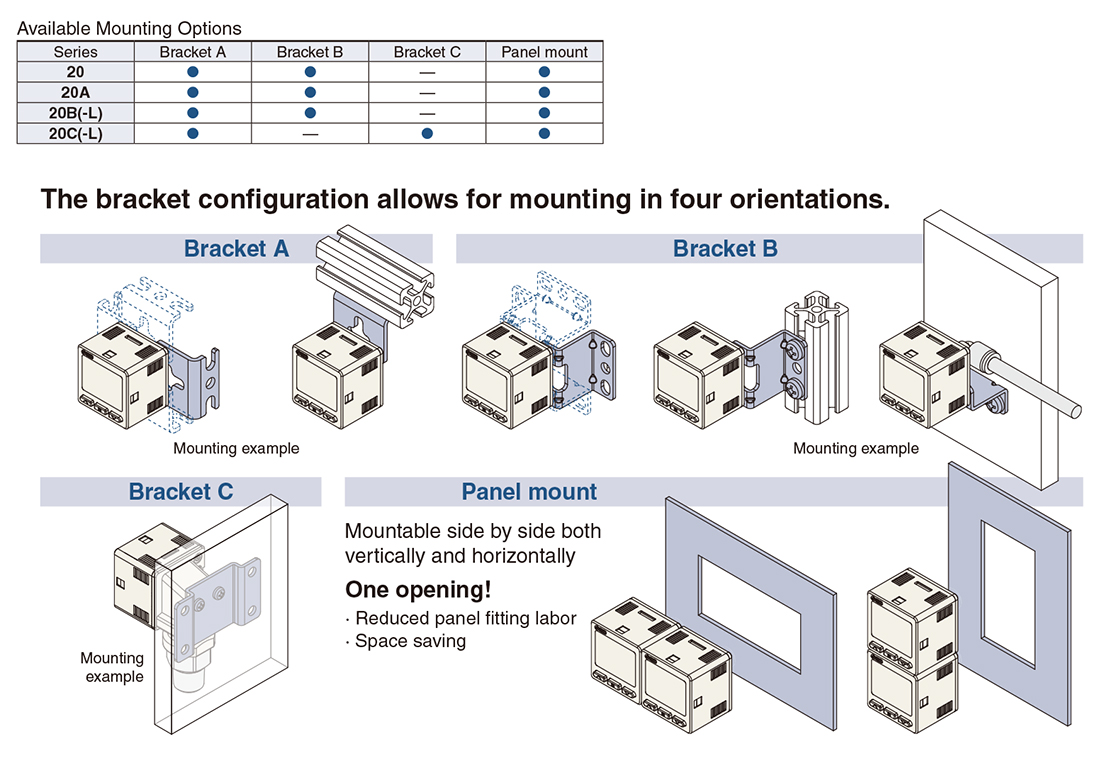

Mounting

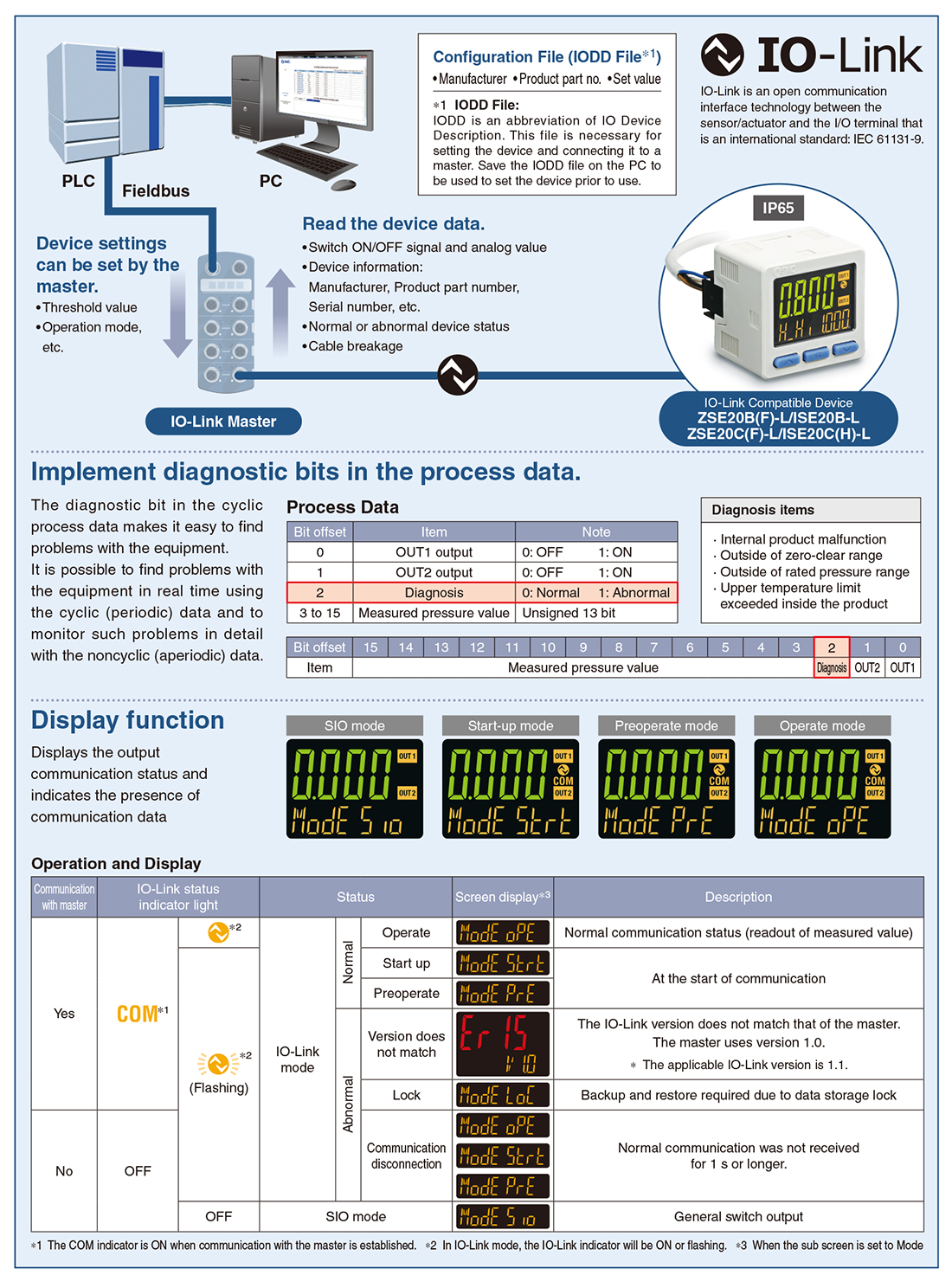

IO-Link Compatible ZSE20B(F)-L/ISE20B-L, ZSE20C(F)-L/ISE20C(H)-L

Visualization of operation/equipment status/Remote monitoring and control by communication

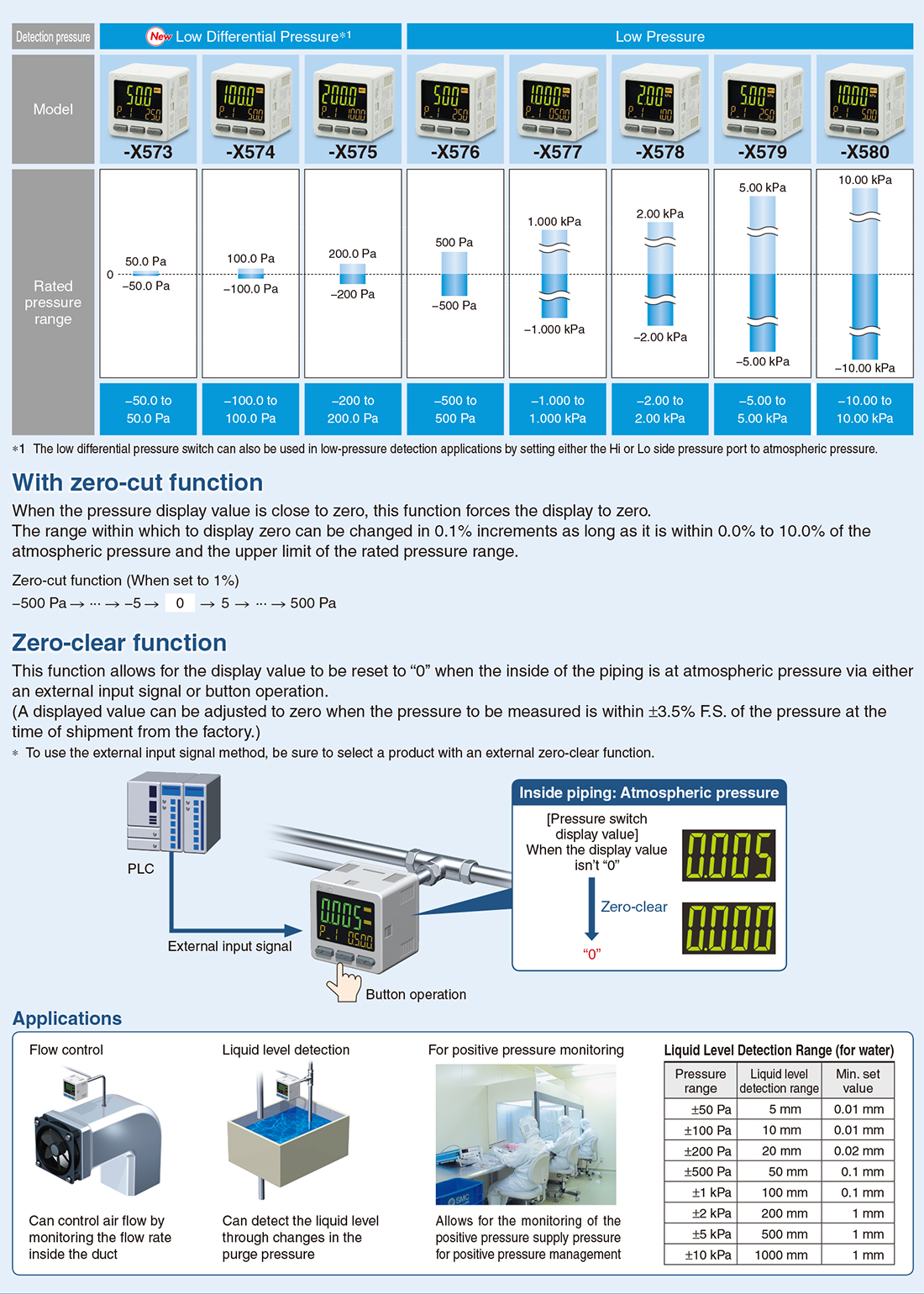

Pressure Switch (for Low Pressure) ZSE20AF-X576 to 580 [Made to Order]

Able to detect and display pressures of 10 kPa or less

For General Fluids: ZSE20C(F)/ISE20C(H)
