Pilot Operated 4/5 Port Solenoid Valves

5-Port Solenoid Valve/Plug Lead Type S0700

    ・Valve width: 7.4 mm
    ・Driveable cylinders: Up to ø32 (Body ported)
    ・Power consumption: 0.35 W
    ・Weight: 39 g (Body ported)
    ・Manifold type no.: SS0752, SS0755
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 5-Port Solenoid Valve/Plug Lead Type S0700
    DoC
    Series View search result
    SS0752
    Body ported
    View search result
    SS0755
    Base mounted
    View search result
  • 5-Port Solenoid Valve/Plug Lead Type S0700
    Manifold
    Series View search result
    SS0752
    Body ported
    SS0755
    Base mounted
    View search result
SeriesFlow rate characteristics
1→4/2(P→A/B)
C[dm3/(s・bar)]
Flow rate characteristics
1→4/2(P→A/B)
Cv
Applicable
cylinder size
Power
consumption
(W)
SS0752
Body ported
0.620.18φ320.35
SS0755
Base mounted
0.390.11φ250.35

Features

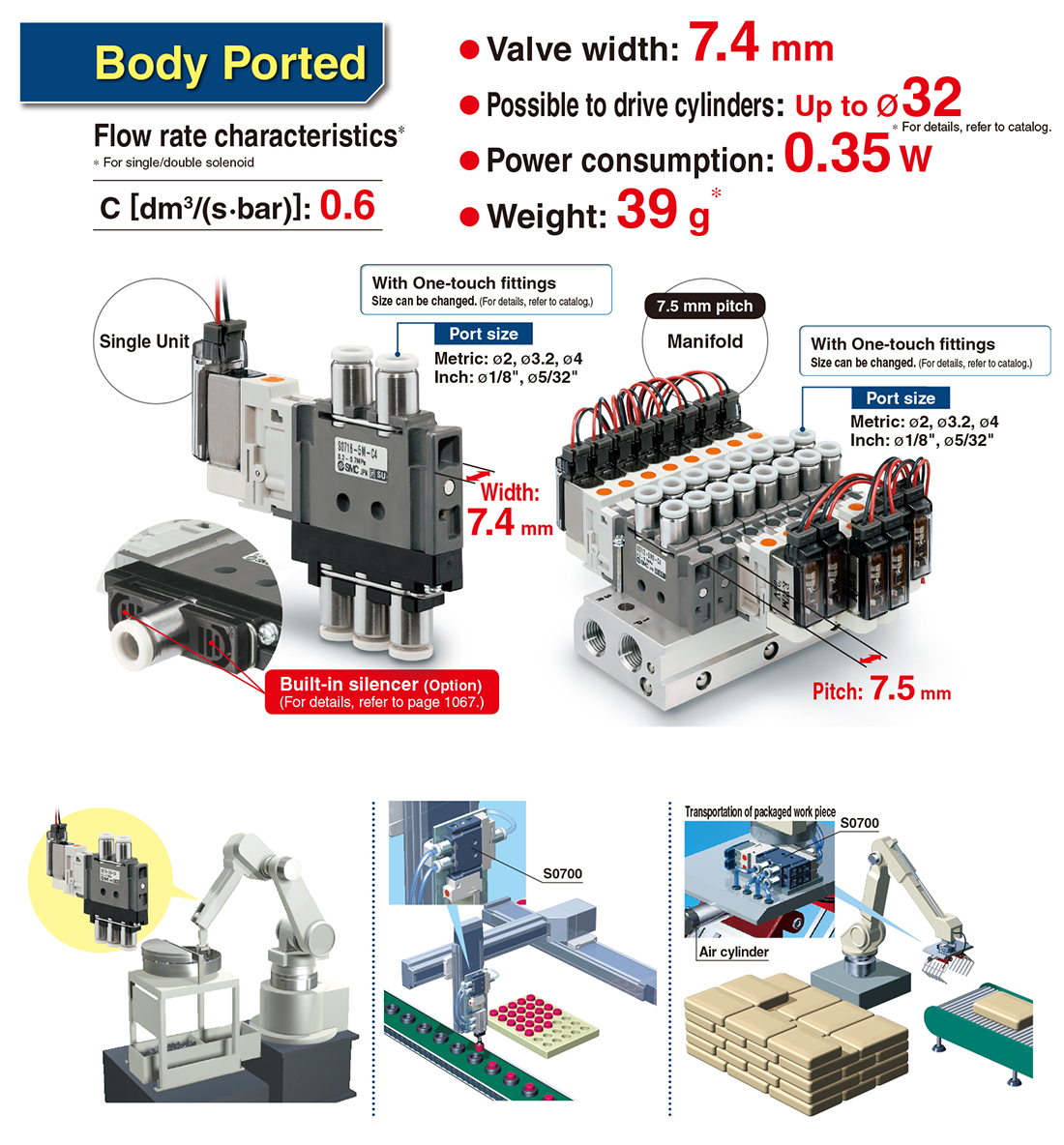

Body Ported

●Flow-rate characteristics:C[dm3/(s・bar)]:0.6
●Valve width:7.4mm
●Possible to drive cylinders:Up to ø32
●Power consumption:0.35 w
●Weight:39 g

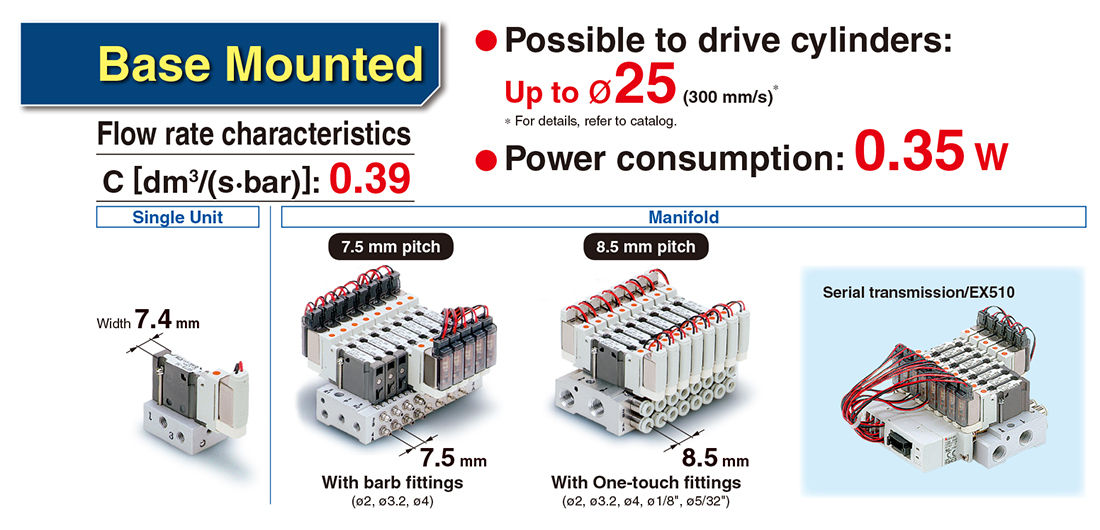

Base Mounted

●Flow-rate characteristics:C[dm3/(s・bar)]:0.39
●Valve width:7.4 mm
●Possible to drive cylinders:Up to ø25
●ower consumption:0.35 w

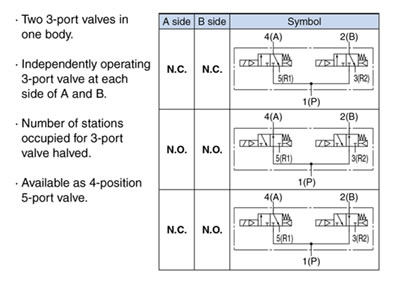

4-Position Dual 3-Port Valve

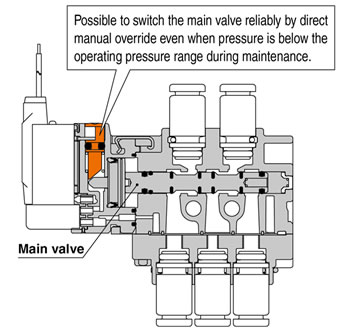

Adopted Direct Manual.
