Chemical Liquid Valves

High Purity Air Operated Chemical Liquid Valve JLV20/30/50

    ・Suppresses the generation of particles and reduced footprint!

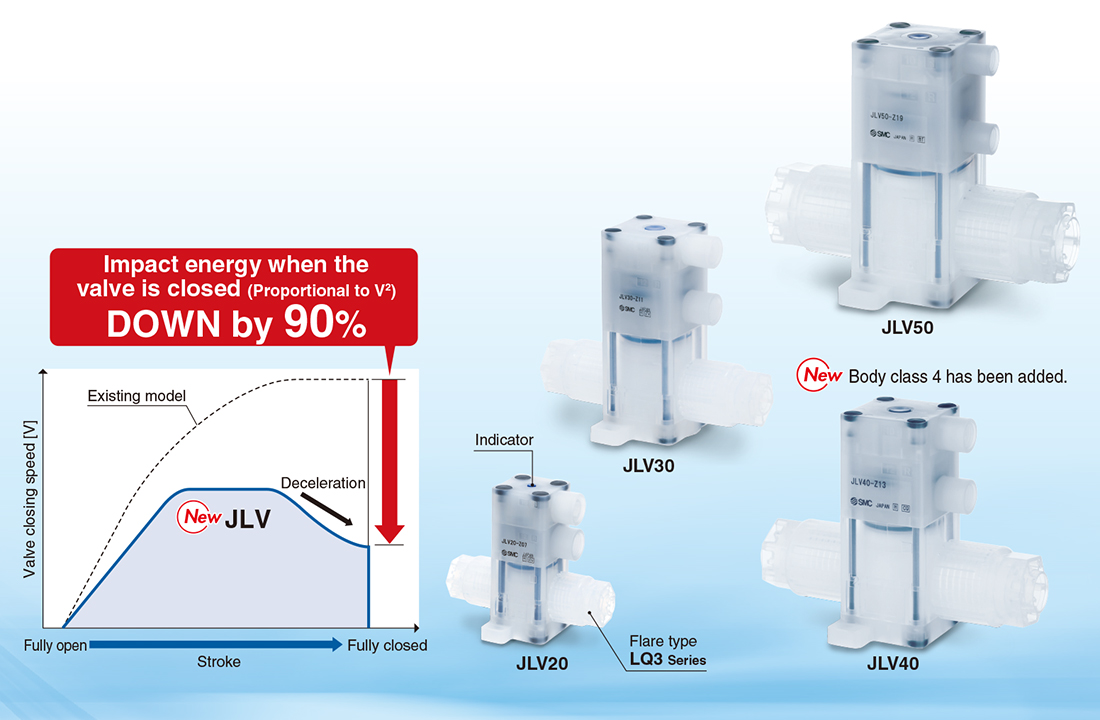

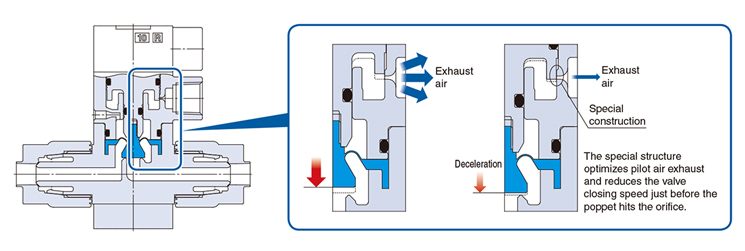

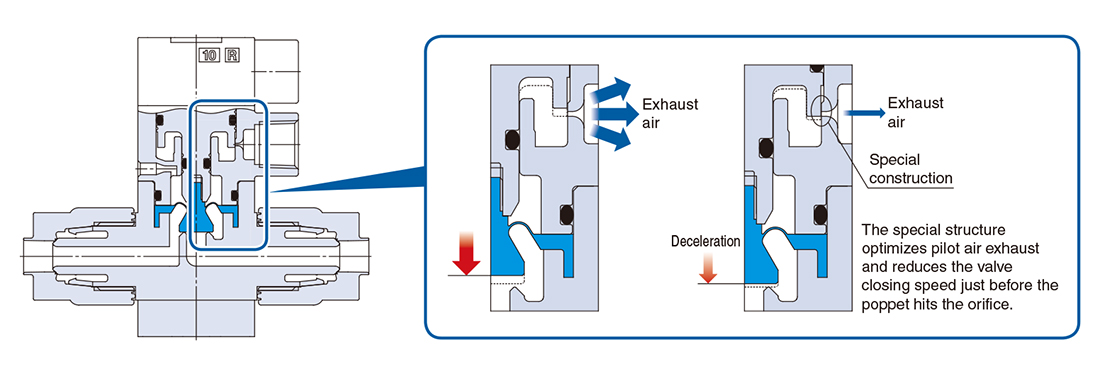

     The special structure allows for reduced impact when the valve is closed
     as well as particle generation suppression.

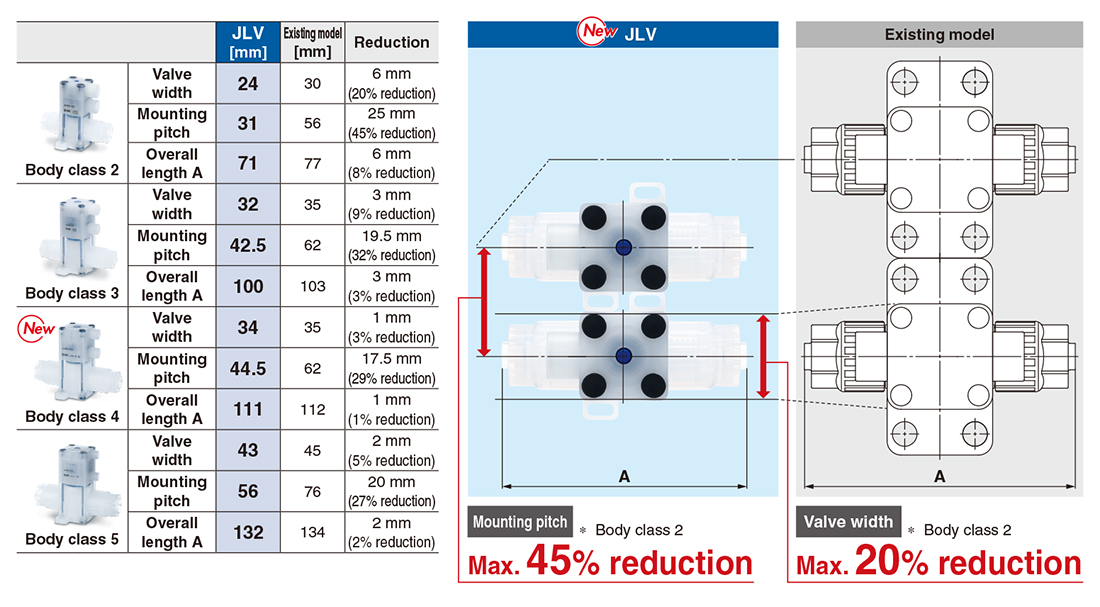

     Reduced footprint (Compared to the existing model):
     Valve width reduced by 20%, Mounting pitch reduced by 45%

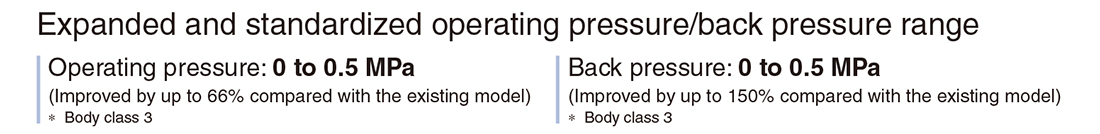

    ・Applicable for applications requiring high pressure/high back pressure
     Operating pressure: 0 to 0.5 MPa, Back pressure: 0 to 0.5 MPa
     (Improved by 66% compared to the existing model)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesTypeValve typeApplicable tubing O.D.
Inch
Orifice diameter
(mmø)
JLVAir operated
Integrated fitting
N.C.1/4,3/8,3/44,8,16

Features

Suppresses the generation of particles and reduced footprint!

The special structure allows for reduced impact when the valve is closed as well as particle generation suppression.

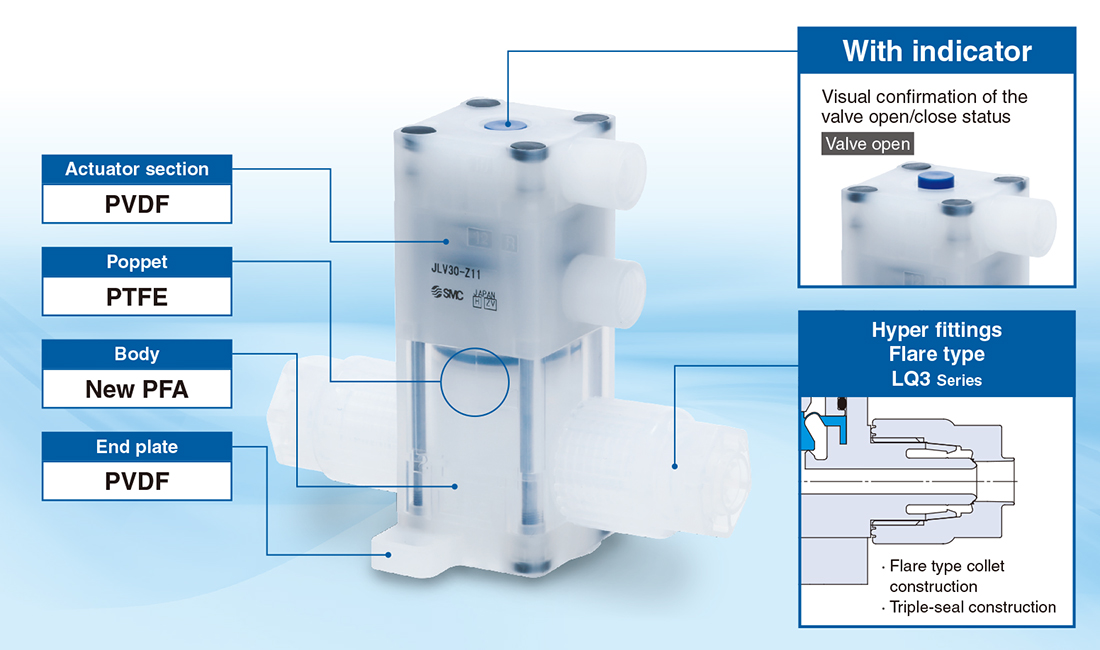

Chemical-resistant materials are used.

Reduced footprint

Applicable for applications requiring high pressure/high back pressure
