Mechanically Jointed Rodless Cylinders

Mechanically Jointed Rodless Cylinder MY1

    ・With 5 standardized guide types
    ・A variety of applications are available based on the load mass and required accuracy.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Mechanically Jointed Rodless Cylinder MY1
    Manual
    Type Series Action Bore size (mm) View search result
    BasicMY1BDouble acting10,16,20,25,32,40,50,63,80,100View search result
    Slide bearingMY1MDouble acting16,20,25,32,40,50,63View search result
    Cam follower guideMY1CDouble acting16,20,25,32,40,50,63View search result
    Linear guideMY1HDouble acting10,16,20,25,32,40View search result
    Linear guideMY1HTDouble acting50,63View search result
  • Mechanically Jointed Rodless Cylinder MY1
    Symbol Specifications Download
    -XB22 Made to Order Common Specifications Shock absorber soft type RJ series type PDF
    -XC56 Made to Order Common Specifications With knock pin holes PDF
    -XC67 Made to Order Common Specifications Dust seal band NBR lining specifications PDF
TypeSeriesActionBore size (mm)
BasicMY1BDouble acting10,16,20,25,32,40,50,63,80,100
Slide bearingMY1MDouble acting16,20,25,32,40,50,63
Cam follower guideMY1CDouble acting16,20,25,32,40,50,63
Linear guideMY1HDouble acting10,16,20,25,32,40
Linear guideMY1HTDouble acting50,63

Features

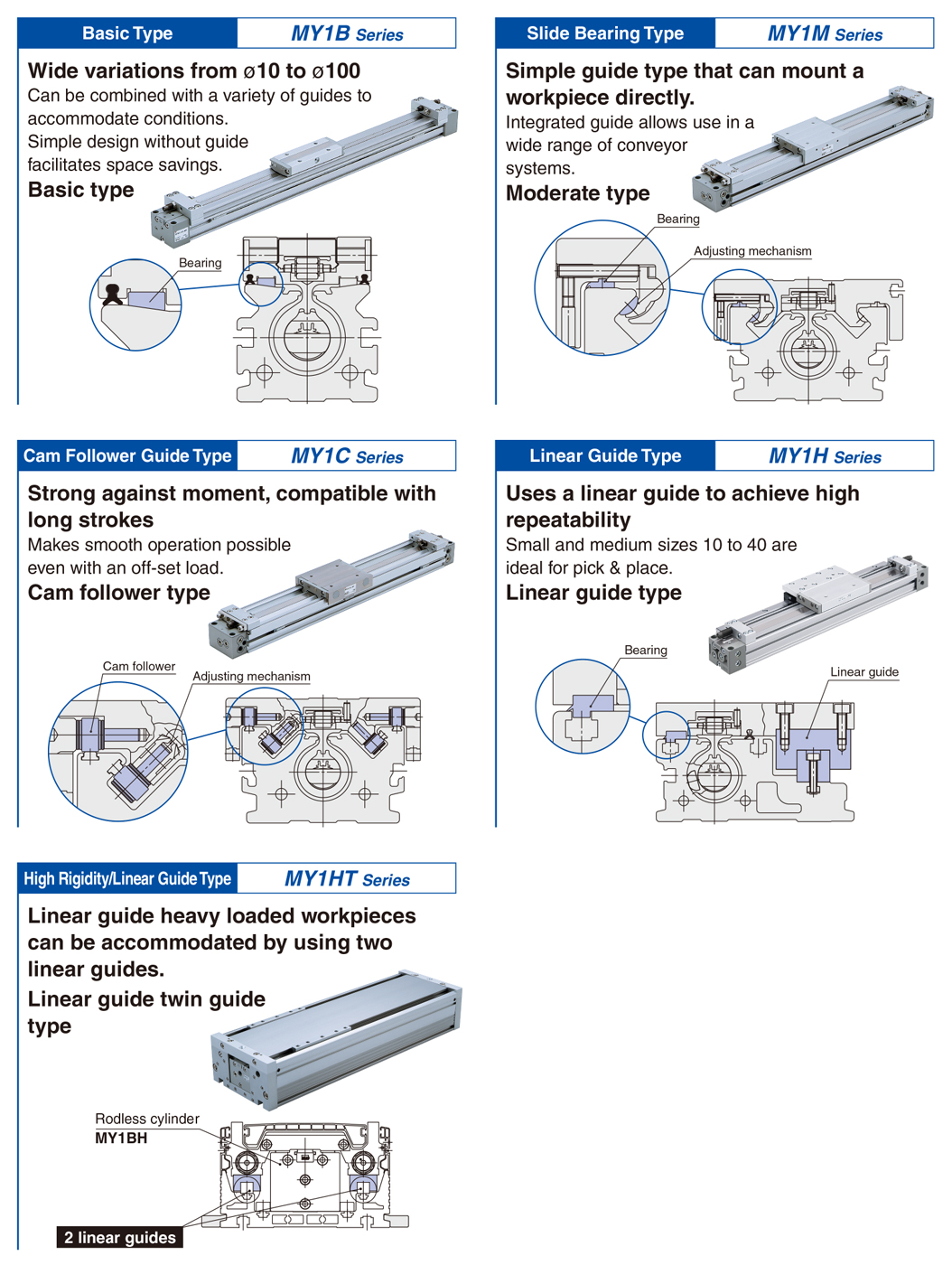

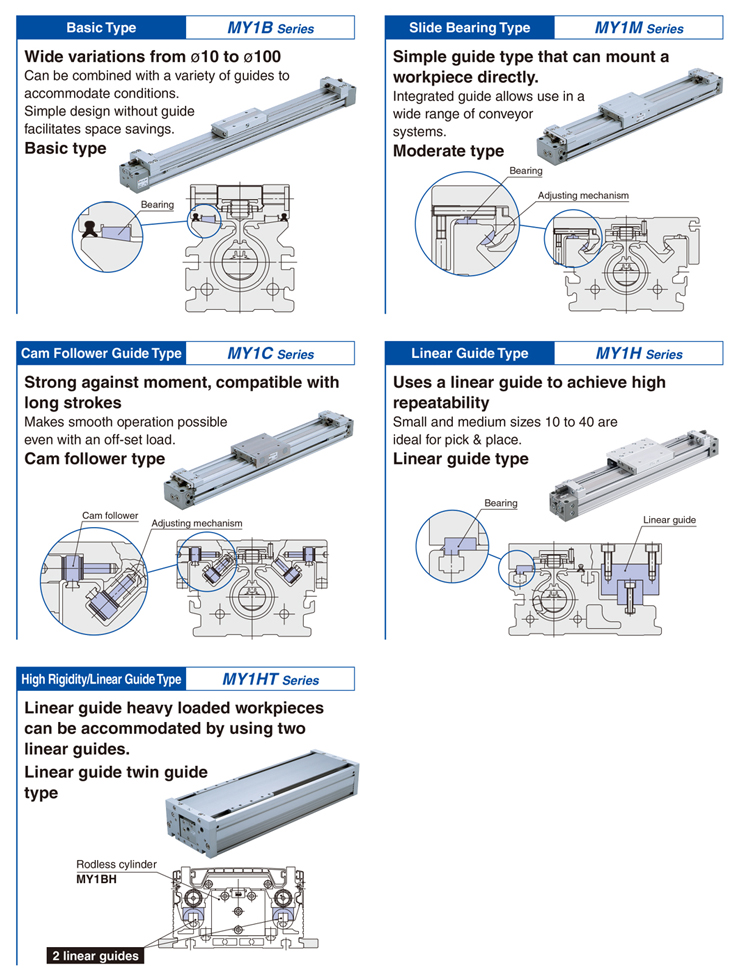

■With 5 standardized guide types

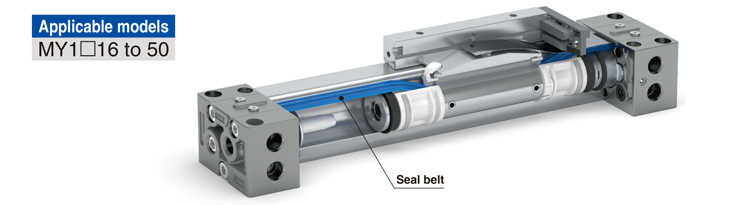

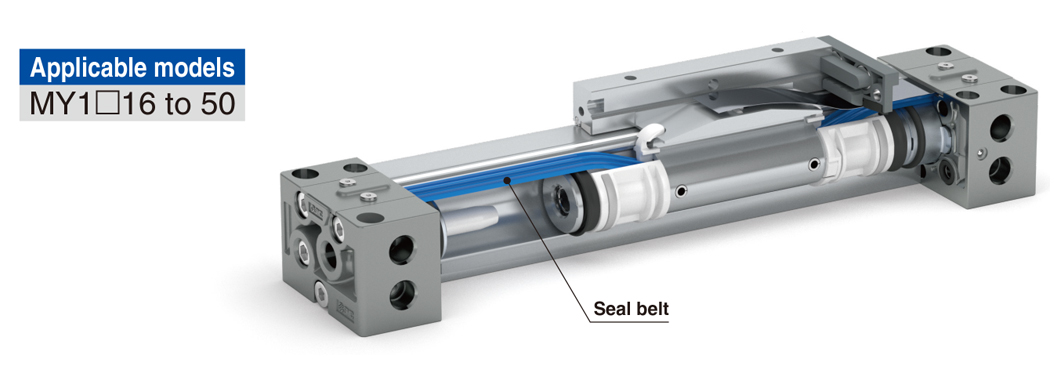

■Minimal leakage seal construction

The flexible material of the seal belt allows for improved adherence to the cylinder tube, resulting in a reduced leakage amount.
(50% reduction compared with the current product)

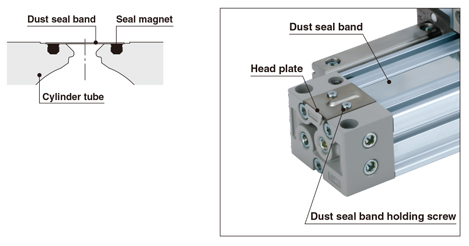

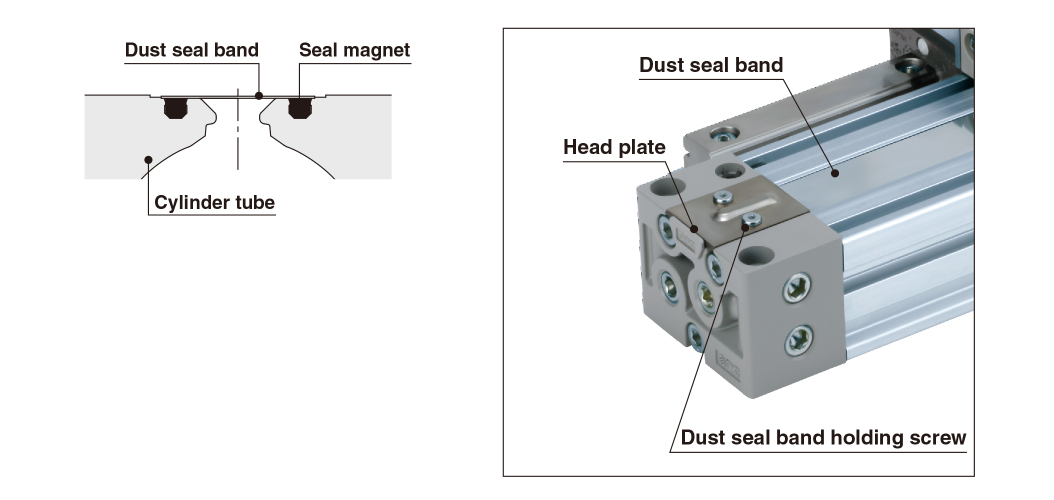

■Dust seal band with improved holding force

The seal magnet on the cylinder tube adsorbs the dust seal band with magnetic force, resulting in improved holding force.





The dust seal band can be easily removed for replacement by simply loosening the two holding screws.
Easier maintenance

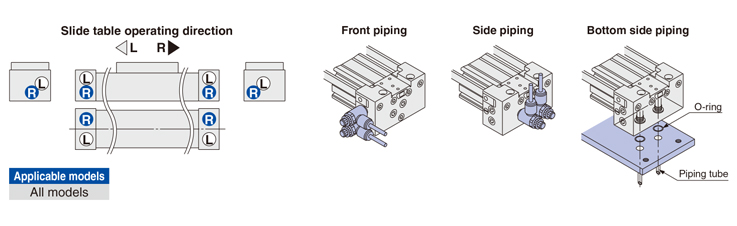

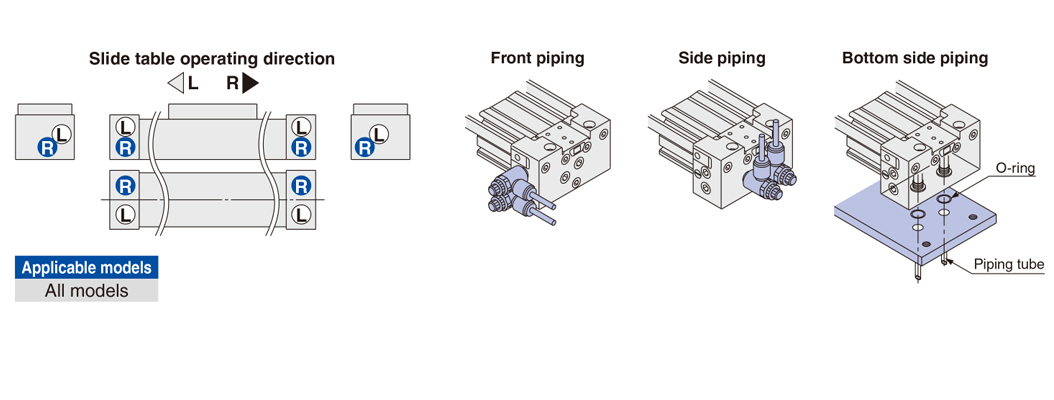

■Allows for piping to be connected according to installation conditions. Centralized piping type for increased piping freedom

■MY1M and MY1C compatibility guaranteed

With the same outer dimensions and workpiece mounting dimensions, both series are compatible with stroke adjustment units, side supports, auto switches, etc.

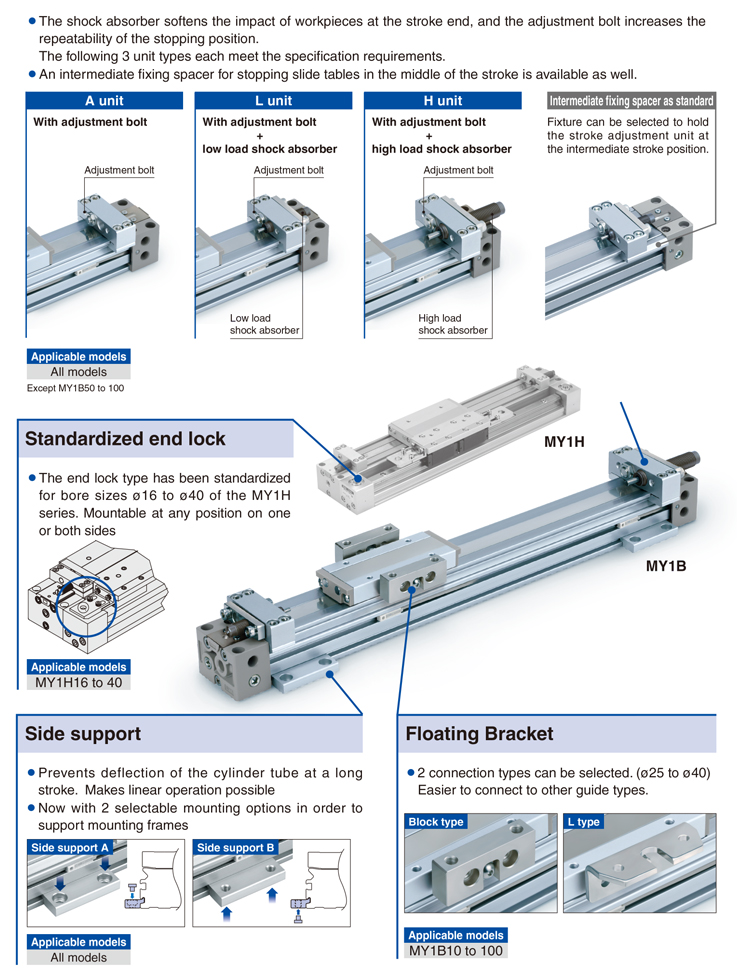

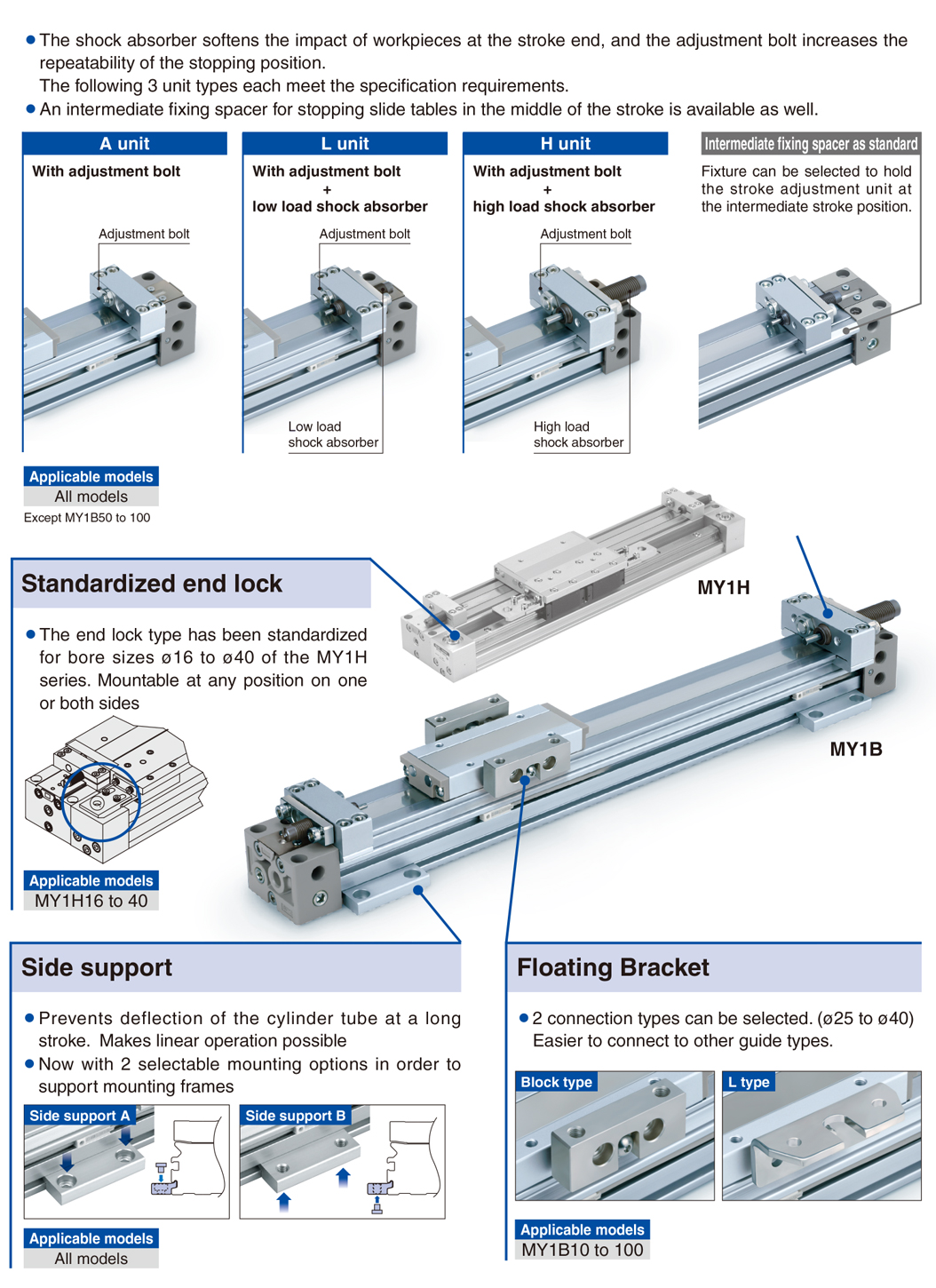

■Built-in adjustment bolt and shock absorber, 3 stroke adjustment unit types

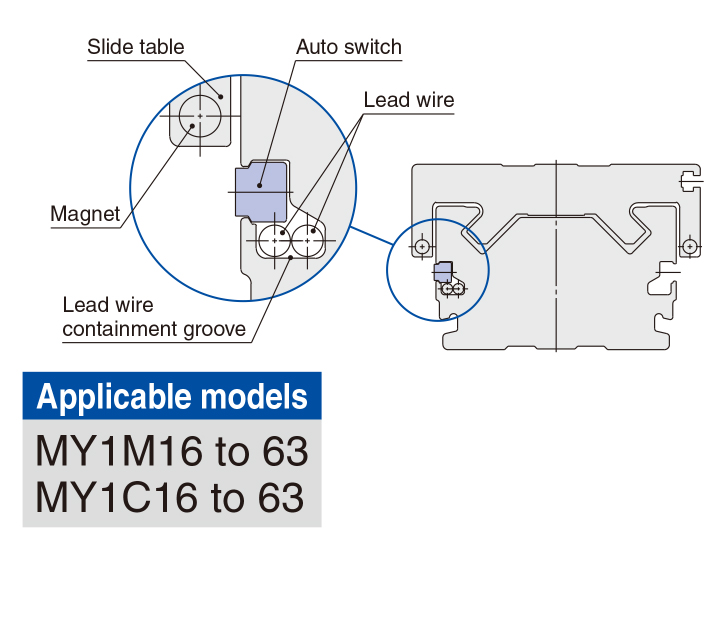

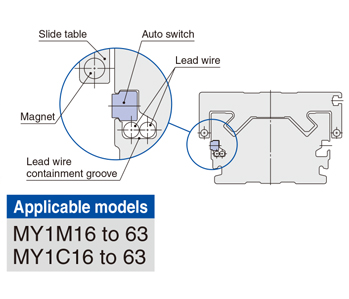

■Auto switch wiring storage system To increase safety, auto switch lead wires can be stored to prevent accidental contact with slide tables.

Improved safety and accuracy of the entire system can be achieved by storing auto switch lead wires in the product's designated lead wire containment grooves.

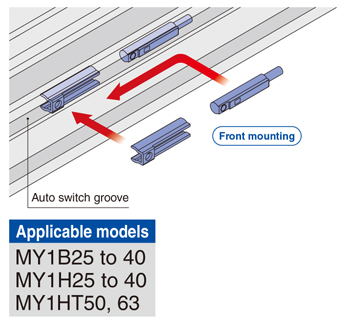

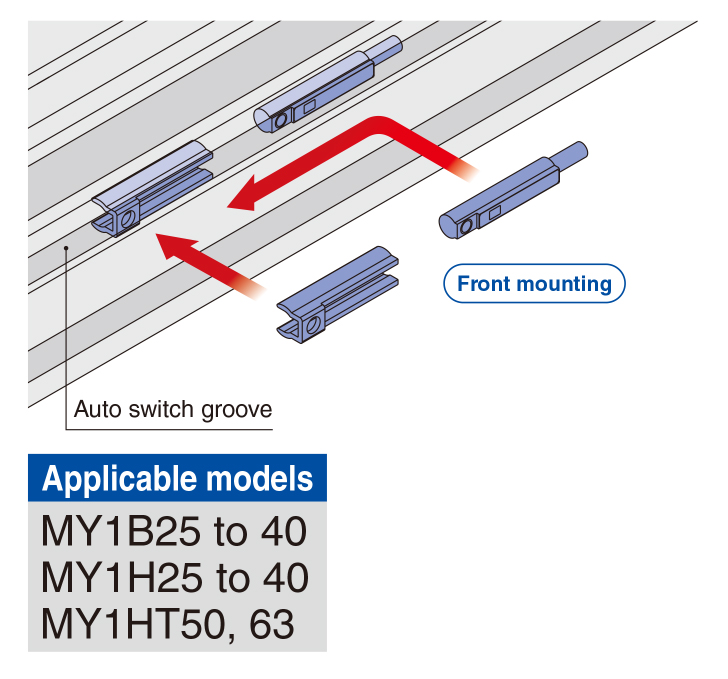

■Auto switches can be mounted from the front. Contributes to reduction in mounting time.

Auto switches can be mounted from the front at any position on the mounting groove.

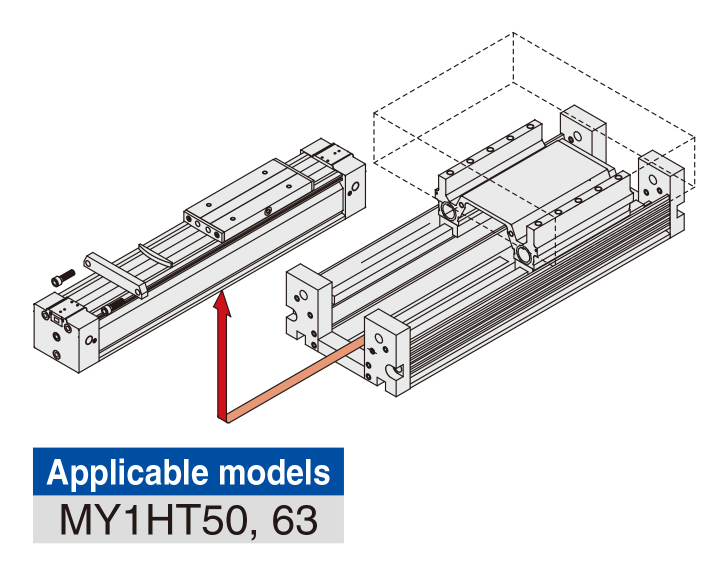

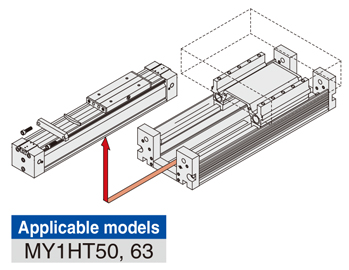

■Extremely easy to maintain

It is possible to replace cylinders with a workpiece being mounted.

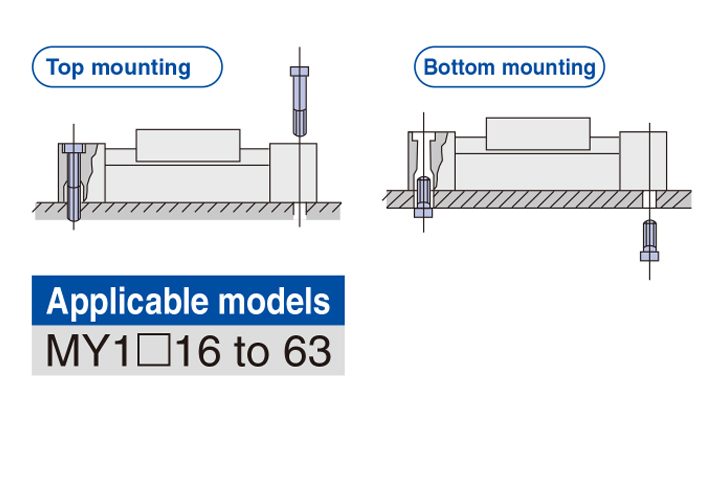

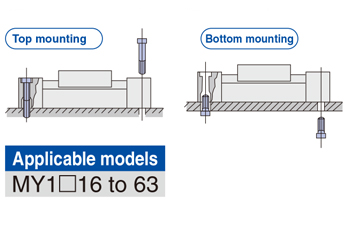

■Two mounting types, Space saving

The cylinder body can be secured directly from either the top or bottom without the use of mounting brackets. This does not change the overall length dimension.

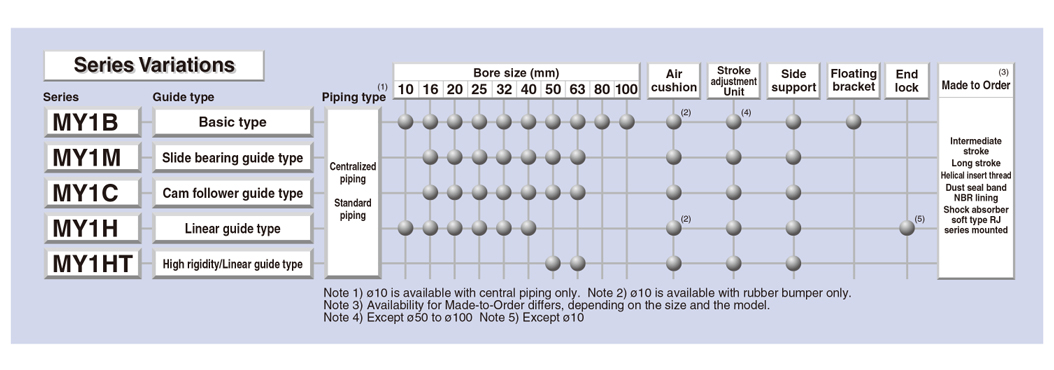

■MY1 Series Variations
