Air Preparation Equipment

|Dry clean air

■Application

・Without refrigerated air dryer on the sub line
・Built-in with equipment (With machine tools, 3-D measurement device, etc.)

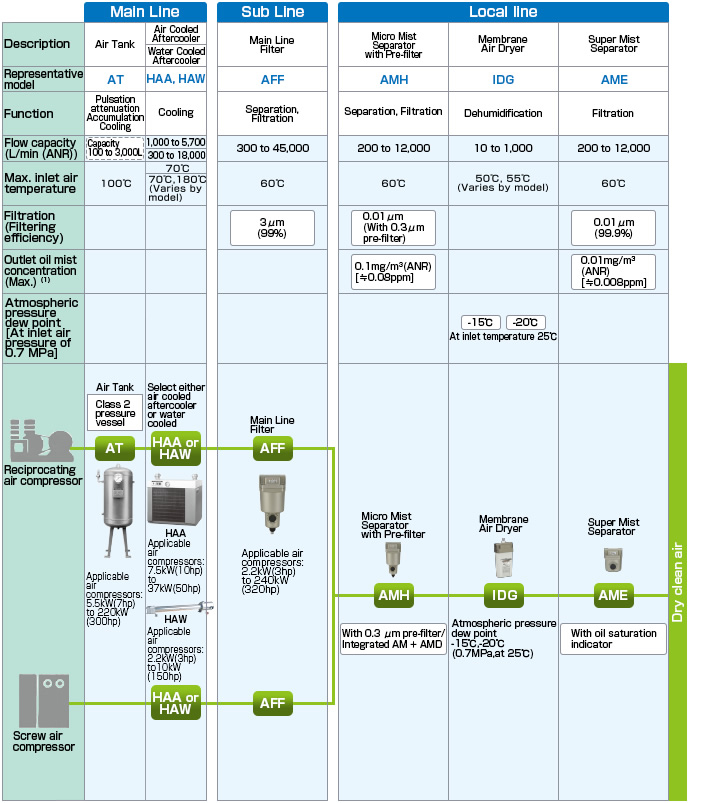

■Air Preparation System


Click the model name to see detailed product information.

AT,HAA/HAW:Not required when attached to air compressors.
AT:Required for screw compressors when it is used to accumulate pressure.


■Impurity in compressed air
Moisture Filtration Oil mist density
Note 1)
Oil odor Quality grade as
system Note 2)
Dew point Moisture content
Atmospheric pressure dew point:-14 to -23℃
Pressure dew point:15 to 3℃(At 0.7 MPa)
1.7g to 0.8g/m3(ANR) 0.01μm
(Filtering efficiency 99.9%)
Max.0.01mg/m3
(ANR)
0.008 ppm
Yes 1,4,1
1,5,1
1,6,1

Note 1) When the inlet oil mist density (compressed air density) is approximately 30 mg/m3 (ANR) or less.
Note 2) This describes the grade of compressed air quality based on ISO8573-1: 2010 (JIS B8392-1: 2012), which is the maximum quality grade for the system. It varies, however, depending on the inlet air conditions.
